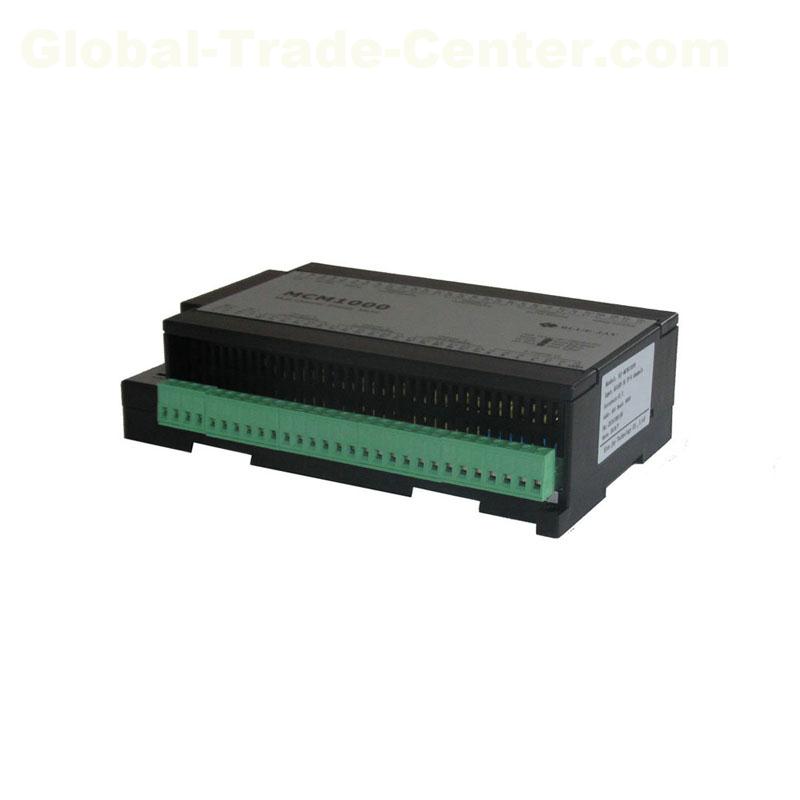

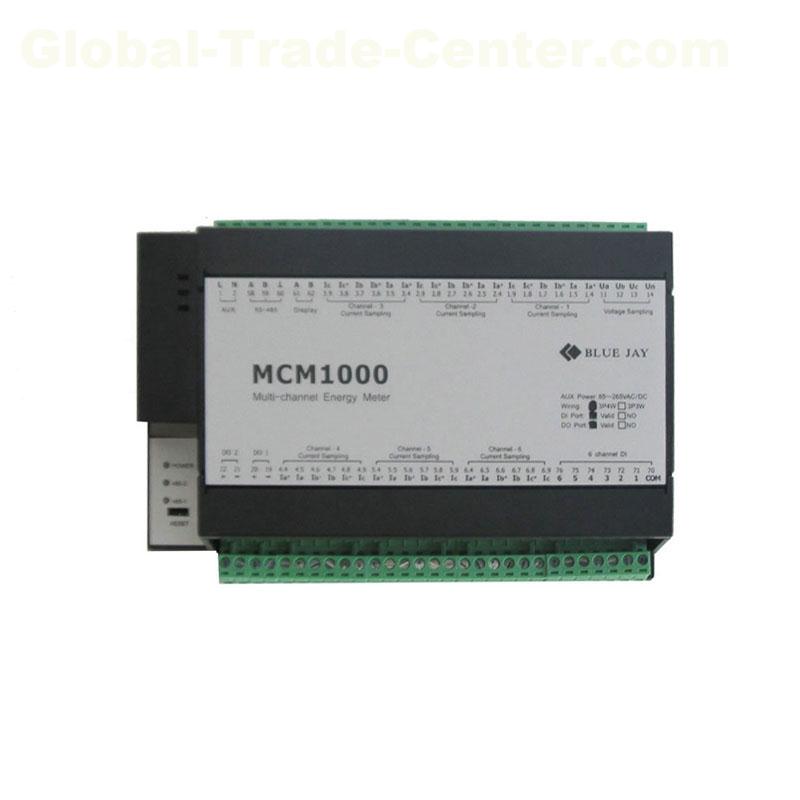

MCM1000 Multi Channels Meter 3P4W Energy Meter, RS485 MODBUS-RTU, for Residential Electricity Sub Metering
| FOB Price: | 200.00 - 239.00 USD/Piece |
|---|---|
| Supply Ability: | 5,000 Piece(s) per Month |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Place of Origin: | Zhejiang, China |
|---|---|
| Packaging Details: | Standard export packaging |
Quick Details
- Dimensions: 180mm*122mm*48mm
- Operating Temperature: -20~+60
- Measuring Voltage Range: 0-9999
- Measuring Current Range: 0~9999A
- Brand Name: Blue Jay
- Accuracy Class: 0.2
- Model Number: BJ-MCM1000
Specifications
the MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering. the unit performs real-time metering, measures energy consumption and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.
Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange. Multiple units can be connected together to meter unlimited number of circuits. The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.
Reference standard:
Basic electricity: GB/T13850-1998 (IEC688-1992)
Active power: GB/T17215-2002 (IEC61036:2000)
Reactive power: GB/T17882-1999 (IEC61268:1995)
Dielectric strength
IEC 688 / IEC 255-3 (1989)
2kV AC RMS 1 minute, between input / output / case / power supply
EMC Test
Electrostatic discharge immunity test: IEC-61000-4-2 level 4
Electrical fast transient burst immunity test: IEC61000-4-4 level 3
Surge (Shock) immunity test: IEC61000-4-5 level 4
Main Features
Class 0.5 basic parameter and class 1 for active energy
6 channels three phase or 18 channel single phase metering
Current measuring.../5 or.../1 A (optional 333mV)
Standard 35mm - 8 module DIN rail mounting
Provide RS-485 MODBUS-RTU Communications
Optional 6DI / 2DO for signal detect and remote control
Optional external connection LCD screen, 72*72mm panel mount
Accept customization design
