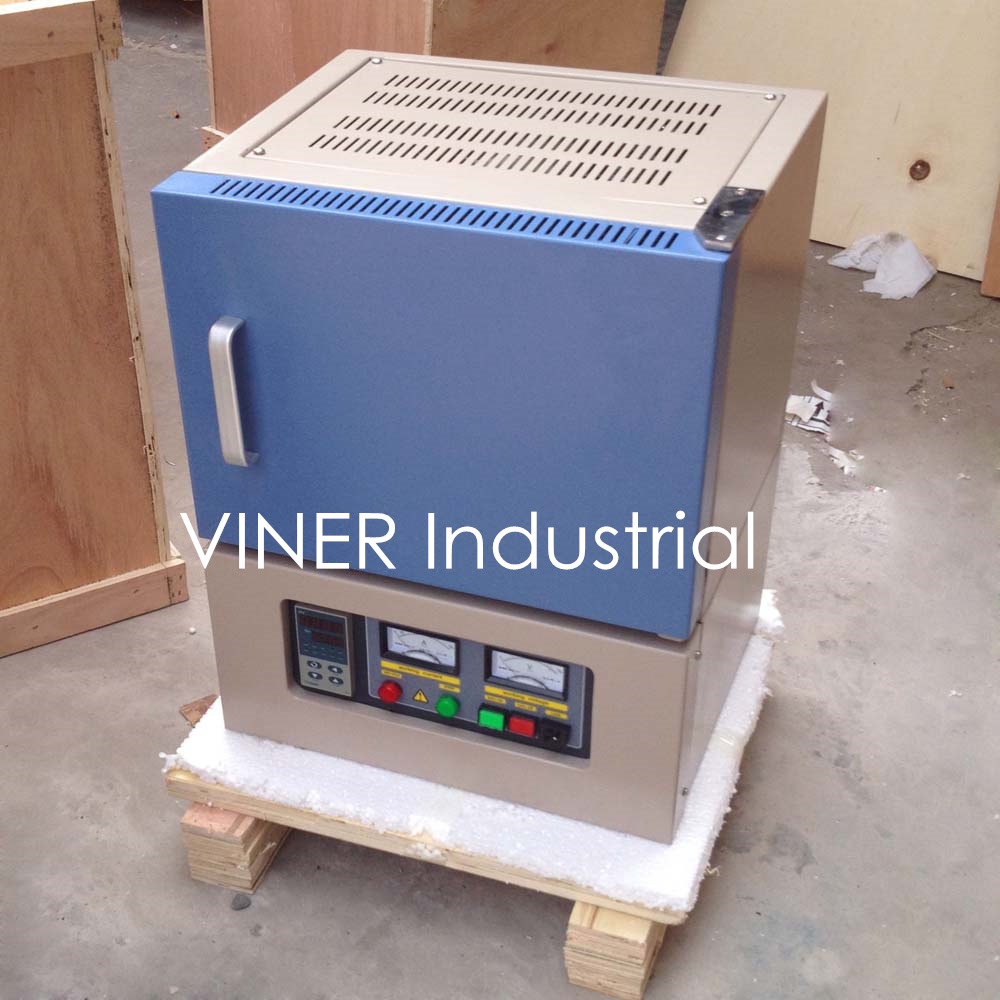

1200C High Temperature Energy-Saving Muffle Furnace (Heated by Ni-Cr Wire)

FOB Price:	1580.00 - 3680.00 USD/Set
Supply Ability:	500 Set(s) per Month
Shipping:	By DHL/Fedex/Air/Sea
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	In wooden case

Quick Details

After-sales Service Provided: Overseas service center available
Warranty: 2 years
Brand Name: VINER
Usage: Heat Treatment Furnace
Condition: New
Certification: CE, ISO9001
Voltage: 110V, 220V, 380V
Model Number: VN-1200M
Type: Resistance Furnace
Max temperature: 1200C, 1400C, 1700C, 1800C
Controlling Accuracy: +/-1C
Heating rate: 0~10 C / Min
Temperature Control: 30 segments programmable and PID auto control

Specifications

this type of VINER Industrial furnace is widely used for materials or chemical lab to sinter All types of new materials samples. It is an ideal box furnace for sintering High purity ceramic material at high temperature without element contamination.

VINER Industrial Muffle Furnace Features:

1) Three sides resistance wire coil for fast and uniform Heating serve as heating element

2) Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient high purity alumina fiber ceramic Insulation.

3) Double layer steel case with air cooling to ensure low Surface temperature

4) Design of sliding down door is for loading materials Easily

5) Furnace chamber: 150x150x150mm (the chamber Sizes can be customized)

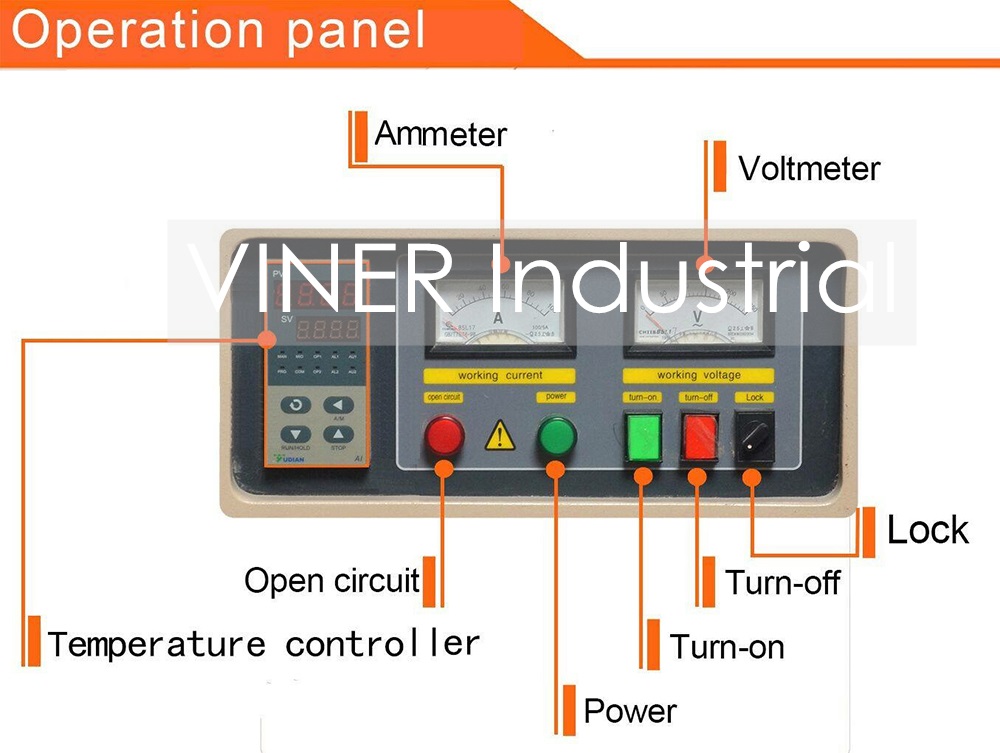

6) Built in precision digital temperature Controller is 51 segments programmable to control heating rate, cooling rate and dwell time. Temperature control unit can be separated from furnace, and make moving at easy.

7) the furnace temperature is controlled by Precision SCR (Silicon Controlled Rectifier) digital controller with accuracy +/-1C and 51 segments programmable up to 1200C

VINER Industrial Muffle Furnace Specifications:

VINER Industrial 1200C Muffle Furnace is the most cost effective high temperature Muffle furnace made by us. the furnace consists of high quality alumina fiber Brick and Ni-Cr wire with special design, and can be used up to 1200 C. It Is an ideal tool for materials annealing and sintering in your research Laboratory.

Item	VINER Industrial Muffle furnace
Type	VN-1200M	VN-1400M	VN-1800M
Max. Temperature	1200C (<3hour)	1400C (<3hour)	1800 (<3hour)
Working Temperature	1100C	1300C	1600-1700C
Heating Element	Resistance Wire	SiC Heating Element	MoSi2 Heating Element
Thermocouple	K type	S type	B type
Temperature Accuracy	±1C
Temperature Uniformity	±5C over 120mm,±3C over 80mm
Heating Rate	0-15C /min
Furnace Structure	Double layer steel Casing with dual cooling fan, Surface temperature below 60C
Furnace Door	Front-side open, Power cutting off when furnace door open
Working Voltage	110V, 220V, 240V or 380V, 50HZ or 60HZ

VINER Industrial 1200 Muffle Furnace Standard Sizes:

Model	Chamber Size	Max. Temperature
VN-1200M	100x100x100mm(4"x4"x4")	1200C
VN-1200M	120x120x130Mm(4.7"x4.7"x5")	1200C
VN-1200M	150x150x150mm	1200C
VN-1200M	150x150x200mm (6"x6"x8")	1200C
VN-1200M	200x200x200mm (8"x8"x8")	1200C
VN-1200M	200x200x300mm (8"x8"x12")	1200C
VN-1200M	250x250x300mm (10"x10"x12")	1200C
VN-1200M	300x300x300mm(12"x12"x12")	1200C
VN-1200M	300x300x400mm (12"x12"x16")	1200C
VN-1200M	350x350x400mm (14"x14"x16")	1200C
VN-1200M	350x350x500Mm(14"x14"x20")	1200C
VN-1200M	400x400x400mm (16"x16"x16")	1200C
VN-1200M	450x450x450mm(18"x18"x18")	1200C
VN-1200M	500x500x500mm (20"x20"x20")	1200C
VN-1200M	600x600x600Mm(24"x24"x24")	1200C
VN-1200M	800x800x800Mm(30"x30"x30")	1200C
VN-1200M	900x900x900Mm(35"x35"x35")	1200C

Note: the above are Standard sizes with semi-finished in stock, other sizes customized

VINER Industrial Muffle Furnace Applications

1. Gravimetric analysis

2. Sintering

3. Quantitative analysis

4. Heat treating

5. Glass preparation

in Wooden case

VINER Industrial Muffle Furnace Shipping:

VINER Industrial could supply you the follow Shipping way for your choice:

--by DHL/Fedex (Door to door, Home delivery service)

--by Air to your nearest Airport

--by Sea to your nearest Seaport

--by the sellers' shipping agent
