Home >Products Catalog > Techwin RJ45 Lightning Arrester(SPD)for Cat5e 100 Base-T Ethernet Arrester

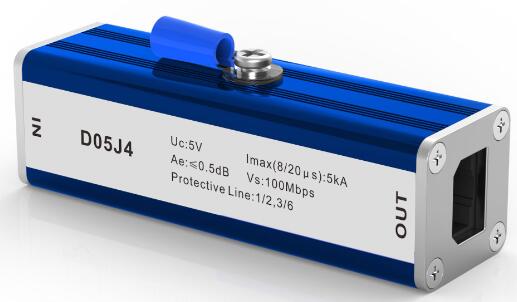

Techwin RJ45 Lightning Arrester(SPD)for Cat5e 100 Base-T Ethernet Arrester

FOB Price:	12.00 - 15.00 USD/Piece
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Matrix

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Brand Name: Techwin
Color: Dark blue
mesh size: 82*25mm
Mesh wire diameter: 82mm
Geotextile: Non
Model Number: D05J4
Arrestor: color:dark blue

Specifications

Techwin RJ45 Lightning Arrester(SPD)for cat5e 100 Base-T Ethernet arrester

Model: D05J4

APPLICATIONS:

CAT5e and CAT5 Compatible

10/100 Base-T Ethernet protection

LAN, FDDI,CDDI, ATM

PDH, SDH, SPDH

Industrial control

Loss Prevention system device; Security system; Security integration.

IASP; VSCS; ESA; ACS;;

FEATURES:

Multi. Protection Circuits, Gas-Tube+ TVS technology

Dual protection in Common mode and differential Mode

TVS array technology, Low capacitance

Multi-Strike Capability

RJ45 connector

TECHNICAL PARAMETER:

Model

D05J4

Electrical Parameter

Max. Continuous operating Voltage Uc

5V

Nominal Discharge current(8/20s)in

3kA

Max. Discharge Current (8/20s)Imax

5kA

Limiting Voltage (10/700s) up

Line-line

25V

Line-ground

500V

Adapt Transmission rate

100Mbps

Insertion Loss

0.5dB

Protection Line

1/2, 3/6

Response Time t_A

1ns

Interface form

RJ45

Protection way

2

Protection port

1

Mechanical characteristics

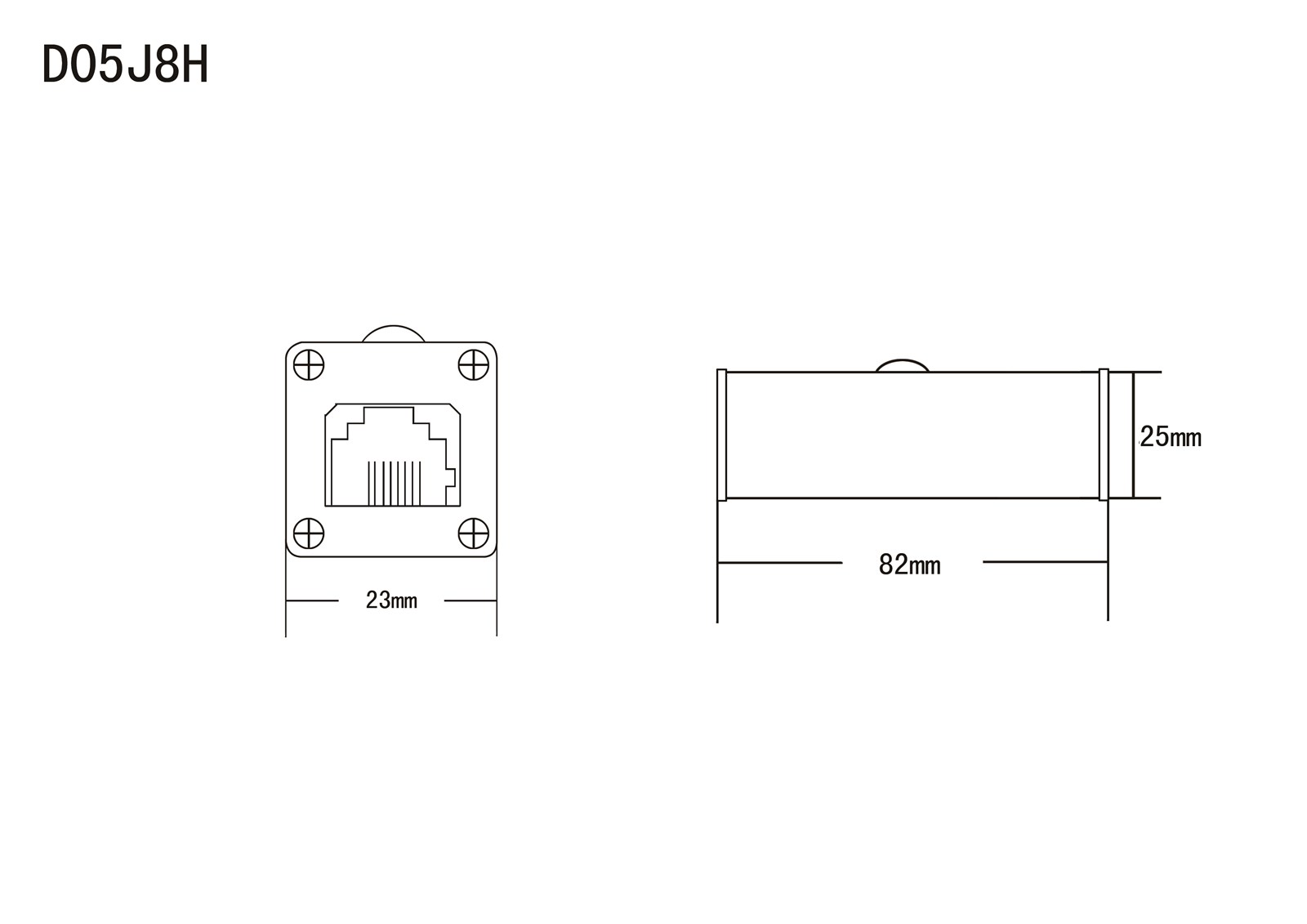

Dimension

83(L) 25(W) 25(H)mm

Weight Per unit

76g

IP Code

IP20

Working Conditions

Temperature: -40 to 80℃,

Relative Humidity: ≤95

Standards Compliance

IEC61643-1, RoHS
