Dongguan Better Electronics Technology Co., Ltd.
China Manufacturer with main products: Fuse, PV Fuse, Thermal Fuse, PPTC SMD Fuse, Fuse Holder, Thermal Switch |
Thermal Switch/Thermal Protector
| FOB Price: | 0.04 - 0.10 USD/Piece |
|---|---|
| Supply Ability: | 10,000,000 Piece(s) per Month |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 200 pcs per inner packing box; 2000 pcs per master carton. |
Quick Details

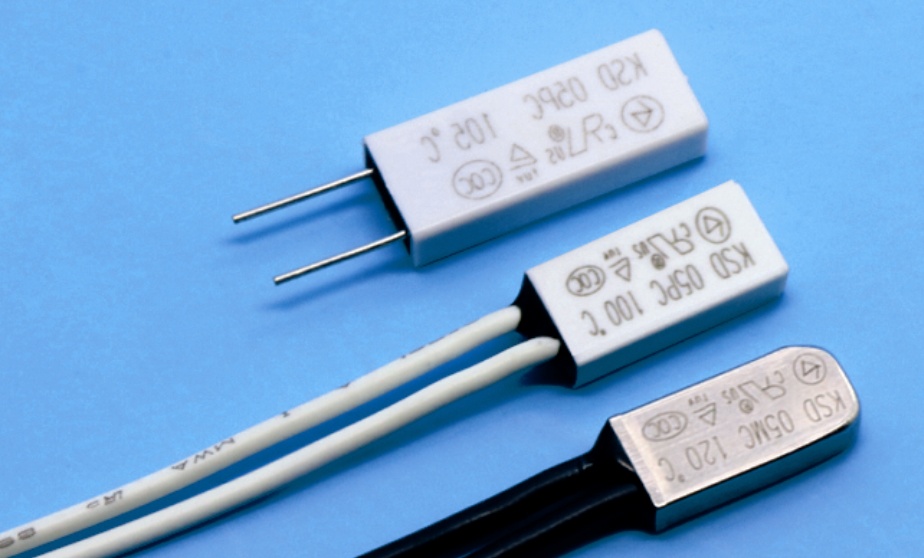

- Brand Name: Betterfuse
- Size: Plastic:15mm*7.1mm*3.5mm; Metal:=15mm*7.0mm*3.2mm
- Type: thermal switch
- Material: Casing: Plastic and/or Metal
- Color: black & white
- Model Number: KSD05
Specifications
the product for the KSD series thermal protector. Mainly as electrical
Appliances overheating or over temperature protection function.
KSD series thermal protector, widely used, mainly used in electric motors,
Pumps, lamps and lanterns, transformer, fan and related temperature
Overheat or over temperature protection appliance.
General Description:
1. Function: KSD thermal protector is through the Bimetallic strip feel the change of temperature jump off action, and then cut off the circuit. The circuit of overheat or over temperature protection.
2. Construction: It is mainly composed of three major components: Bimetallic strip action mechanism, the shell and the power cord.
3. Characteristics: KSD thermal protection appliance Inductive temperature sensitive, quick, small volume, easy to install, the Advantages of widely used in temperature related instruments, used as the over Temperature protection or overheating protection.
Detailed Features:
1. Materials Casing:Plastic and/or Metal
2. Operating Temperature:60℃ to 150℃ (Metal) ; 60℃ to 120℃ (Plastic)
3. Tolerance :±5℃
4. Reset Temperature:15℃ to 50℃; Reset temperature Less than operating temp. (customizable)
5. Resistance :Less Than 50 mΩ
6. Hi-Pot Test:1500vac 0.5mA 1min
7. Endurance :10,000 cycles
8. Rating
:AC250V 5A; AC115V 8A; DC24V 10A
