Haitel- Automatic Mask Machine Production Line-One for Two

Specifications

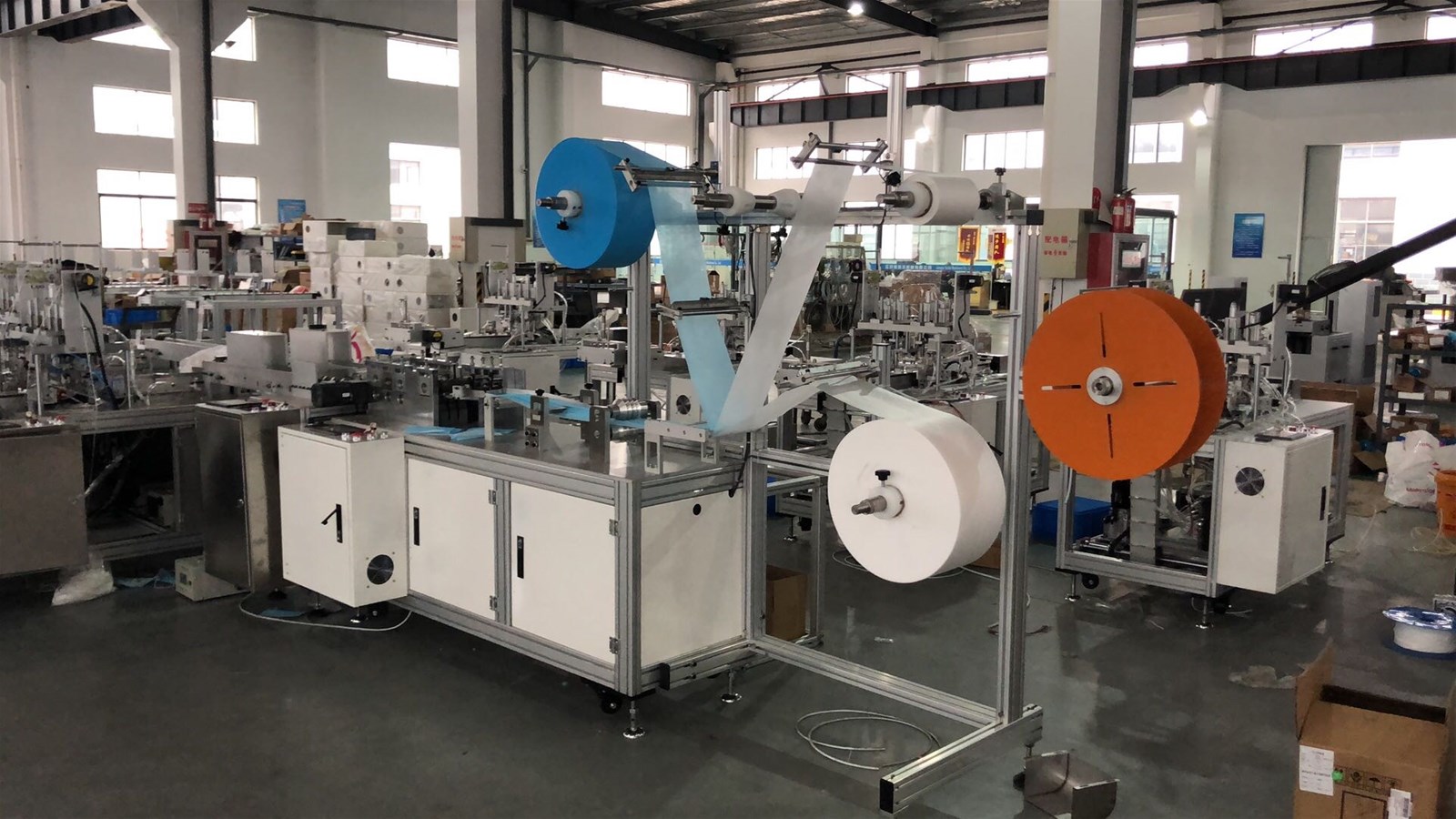

the production line of high-speed full-automatic one drag two plane mask machine is connected by a body machine and an ear belt machine. after the body machine outputs the mask body, the conveyor belt structure will transfer the mask body piece to the turning mechanism, and the turning mechanism will turn the mask plate to the conveyor belt connecting the ear belt machine, and then the conveyor belt will transfer the mask piece to a mask plate on the front of the ear belt machine, and finally the mask piece will be placed in the mask plate of the ear belt machine through the air cylinder, and then the ear belt machine will complete the mask The ear band welding, binding and other actions can complete the production of an ear band mask.

the high-speed full-automatic one drag two plane mask machine production line is mainly used for automatic forming of plane masks: the whole roll of cloth is driven by roller after unwinding, and the cloth is folded and wrapped automatically; the nose strip is pulled and uncoiled by the whole roll, cut to a fixed length and then imported into the wrapped cloth, and the two sides are welded to the seal by super sound, then sealed laterally by ultrasonic, and cut to form by cutter; the assembly line The mask is transported to two mask ear belt welding stations, and finally formed by ultrasonic welding; when the mask is made, it is transported to the flat belt line for collection through the assembly line.

Features of the production line of high-speed full-automatic one drag two plane mask machine:
1. the whole equipment is fully automated.
2. High stability, low failure rate, beautiful, firm and rust free.
3. PLC programming control, servo drive, high degree of automation.
4. Automatic tension control of raw materials to ensure the tension balance of raw materials.
5. Photoelectric (optical fiber) detection of raw materials to avoid mistakes and reduce waste.

Mechanical characteristics:
1. Automatic tension control of raw materials. Ensure the balance of raw material tension.
2. Photoelectric detection of raw materials to avoid mistakes and reduce waste.
3. It can produce one to four layers of mask body, and the length of the upper plane of the outgoing product conveyor belt is 1200mm.
4. this machine has the function of total count and batch count. the number of batch count can be set arbitrarily.
5. Changing the mold can produce different sizes and styles of masks.
6. the whole machine is made of aluminum alloy structure, beautiful, solid and rust free.

Pre-sale:
1.Confirm machine type: Negotiate with clients to seclect the correct machine according to customers' requirment.
2.Quote and Sign firm contract: after confirm with customers with all details, such as payment terms, model, delivery time, send official quotation to clients.

after-sale:
1.When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
Order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3.from the date of the buyer receive the machines, free warrant for 12 months.

Packaging and Delivery:
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. after-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Quality Guarantee:
the quality of the production line will have 12 month warranty since the installtion in the buyer's factory.
