Techwin TVSS 100kA Class B+C Surge Protection Device SPD for Three-Phase 380V AC System

FOB Price: 600.00 - 650.00 USD/Piece
Payment Terms: T/T
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China

Quick Details

  • Brand Name: Techwin
  • Rated Voltage: 380VAC
  • application: Medical institutes
  • Material: Metal
  • name: Techwin TVSS 100kA Class B+C surge protection device for Three-pha
  • Model Number: B100L63B3+N

Specifications


Techwin TVSS 100kA Class BC surge protection device SPD for Threephase 380V AC systemTechwin TVSS 100kA Class BC surge protection device SPD for Threephase 380V AC system

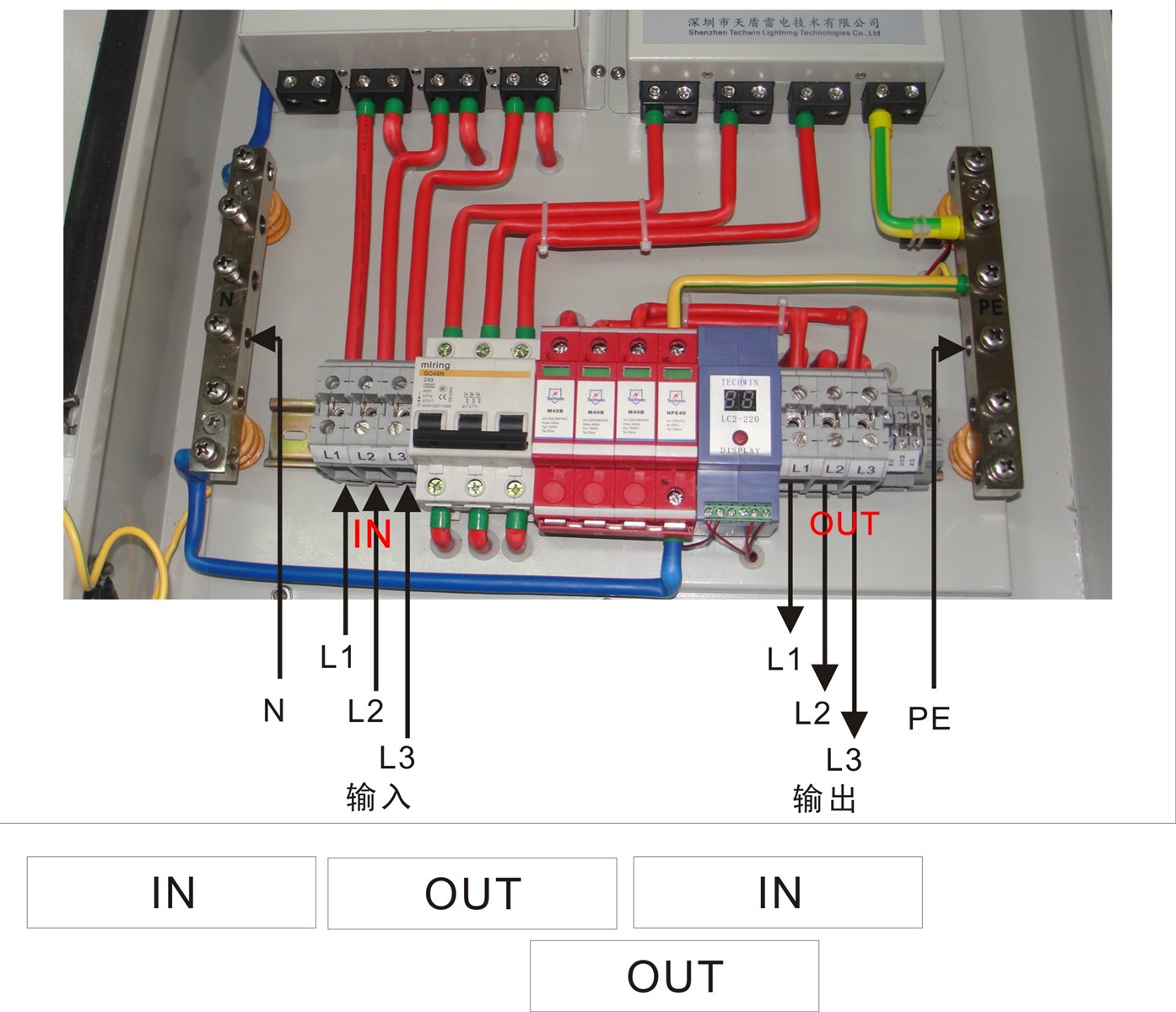

Techwin TVSS 100kA Class B+C surge protection device SPD for Three-phase 380V AC system

Model:



APPLICATIONS:

B+C class surge protective device for 3-phase AC power system.

Power distribution box(cabinet);AC cabinet;Column head cabinet;Charging station/charging point

CommunicationBase Station

Telecom centers

Automatic control centers

Industrial enterprises

Medical institutes

IT,TT,TN-C,TN-S,TN-C-S and other power supply system.

FEATURES:

UL 1449,IEC61643

IP54

100kA 8/20μS Capability

Residual voltage lower than 1100V

Thermal disconnect device

Heat turn-off technology

Temperature control to protect circuit.

STatus Indicators and lightning counter

Remote alarm contact, easy to remote Control

Easy to install and simple for Maintenance

International famous brand for core Component with excellent performance.

ISO 9001:2008 Certificated,ISO14000:2004 certificated and OHSAS18000:2007 Certificated

High quality products with CE, certificate

TECHNICAL PARAMETER:

Model

B100BL633+N

Electrical Parameter

Nominal working voltage Un

380VAC

Max. Continuous operating voltage Uc

385V

Rated current(A)

63

Nominal discharge current(8/20s)in

60kA

Max. Discharge current (8/20s)Imax

100kA

Protection level @20kA, 8/20s up

<1100V

Response time tA

25ns

Protection mode

L-N, N-PE

Mechanical Characteristics

Dimension

400 (H)300 (W)120(L)mm

Weight per unit

4kg

Connecting wire diameter

25mm2

Enclosure

Steel with dichromate plated

IP code

IP20

Working conditions

Temperature: -40 to 85,

Relative humidity: ≤95(25)

Standards compliance

IEC61643-1, RoHS
