Techwin TVSS 400kA Class B Surge Protection Device TUV Certificated for Three-Phase 380V AC System 20 Years Warranty

FOB Price: 600.00 - 650.00 USD/Piece
Payment Terms: T/T
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shenzhen in China

Quick Details

  • Brand Name: Techwin
  • Color: Gray
  • Channel: NON
  • Distance: NON
  • distances: NON
  • Model Number: B400B3+N-H

Specifications

Techwin TVSS 400kA Class B surge protection device TUV certificated for Threephase 380V AC system 20 years warranty
Techwin TVSS 400kA Class B surge protection device TUV certificated for Threephase 380V AC system 20 years warranty

Techwin TVSS 400kA Class B surge Protection device(SPD)TV certificated for Three-phase 380V AC system 20 Years warranty

Model: B400B3+N-H

Techwin TVSS 400kA Class B surge Protection device(SPD)TV certificatedfor Three-phase 380V AC system 20 Years warranty

Model: B400B3+N-H

APPLICATIONS:

Class B Surge Protective Device for AC Power System.

Power distribution box(cabinet);AC cabinet;Column head cabinet;Charging station/charging point

CommunicationBase Station

Telecom centers

Automatic control centers

Intelligent buildings

Industrial enterprises

Medical Institutes

IT,TT,TN-C,TN-S,TN-C-S and other power supply system.

Features:

UL 1449,IEC61643

IP54

400kA 8/20μS Capability

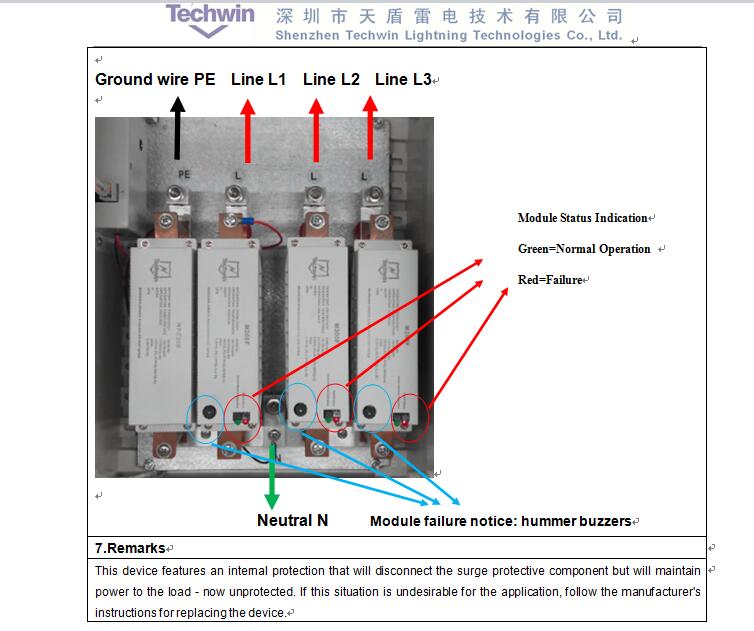

Thermal disconnect device

Heat turn-off technology

Temperature control to protect circuit.

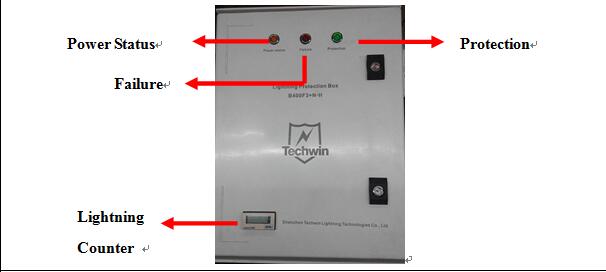

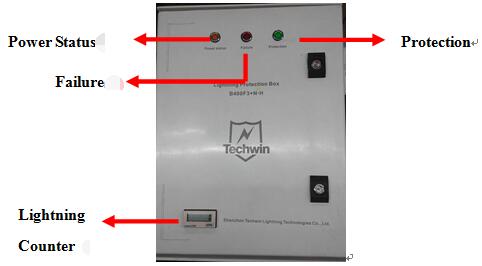

STatus indicators and lightning counter

Remote alarm contact, easy to remote control

Easy to install and simple for maintenance

International famous brand for core component with excellent Performance.

20 years warranty

3.Electrical Parameter

Nominal Operating VoltageUn

220VAC (L -N)/380VAC (L -L)

Max. Continuous OperatingUc

385VAC

Nominal Discharge Current(8/20μs)in

20kA

Max. Discharge Current(8/20μs)Imax

400kA

Fault Current Rating

65kA with 200A breaker

Protection LevelVPR

0.8kV(L-N)1.7kV(L-L,L-G)

SPD Technology

MOV

Response TimeTa

25ns

Temperature & Humidity rating

Temperature: -20 to 80℃, (-4-176F)

Relative humidity: ≤95

4.Physical Structure

Dimensions

400(L)*300 (W)*200(H) mm

Enclosure Color

Grey

Enclosure Type(Outdoor)

Type 4X PC

Mounting

Parallel in System

Connection Terminal(SPD) hardwire

#14-#2/0AWG(2.5Mm2-70Mm2)
