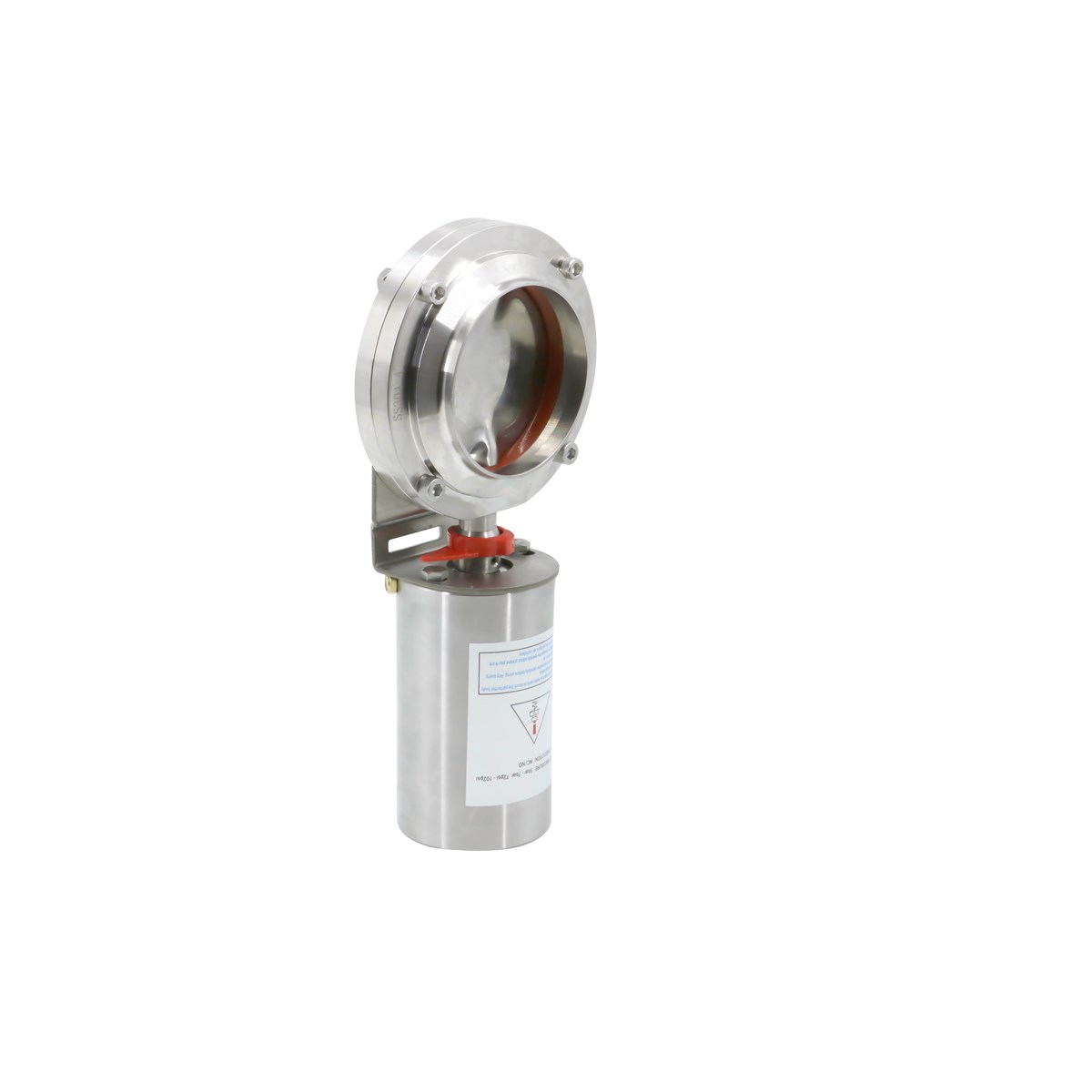

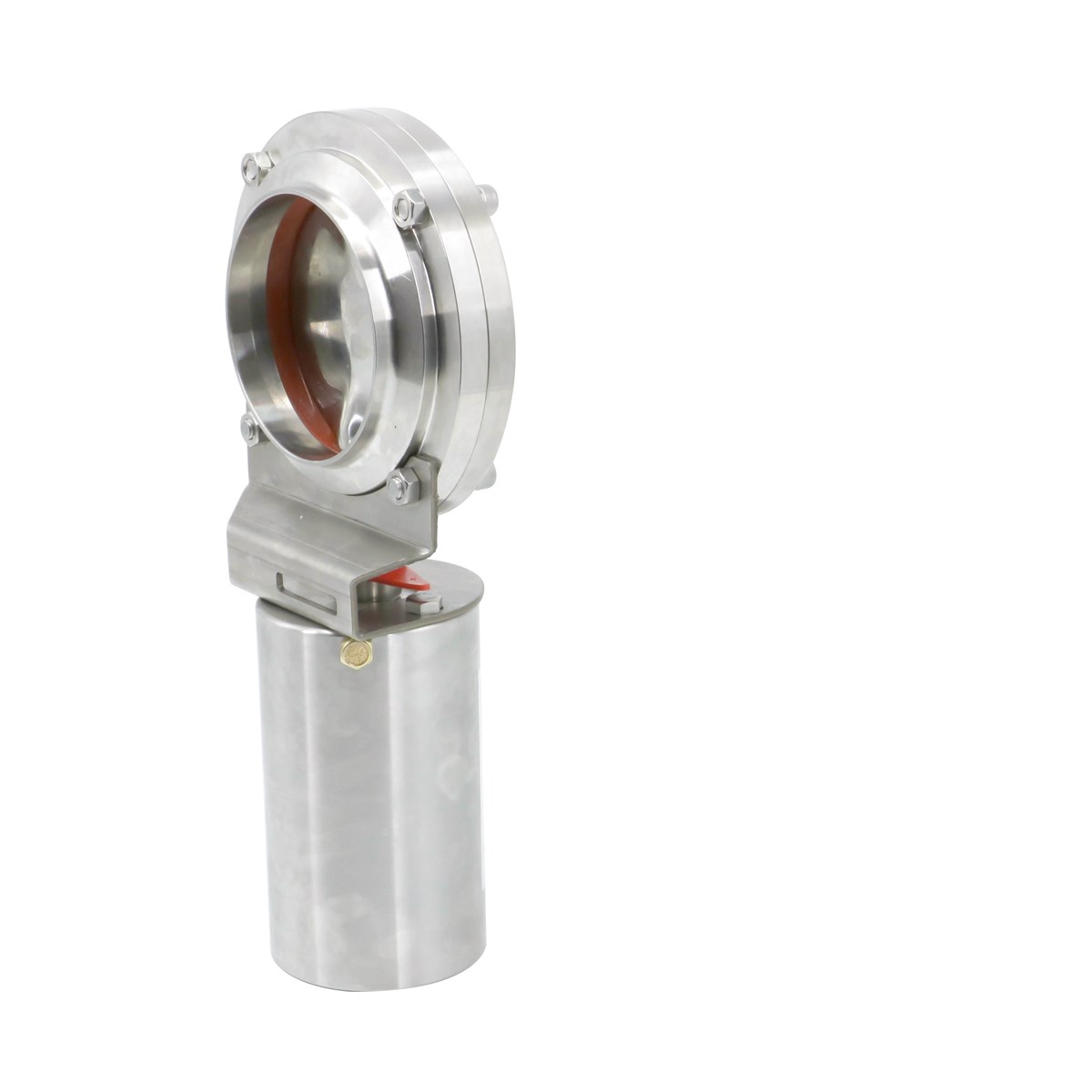

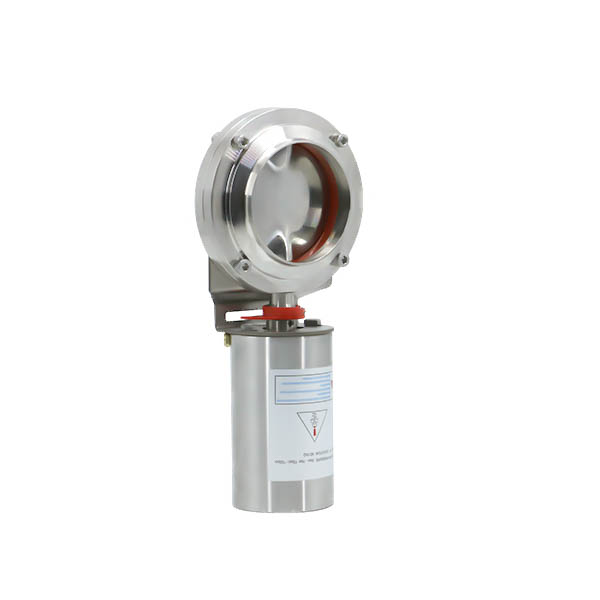

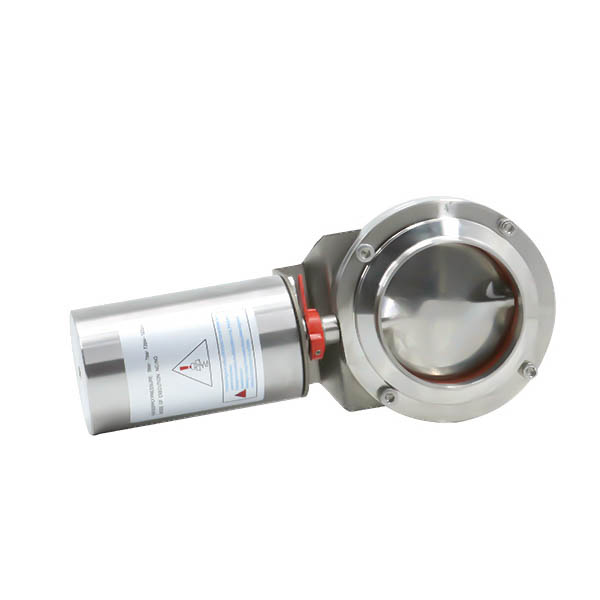

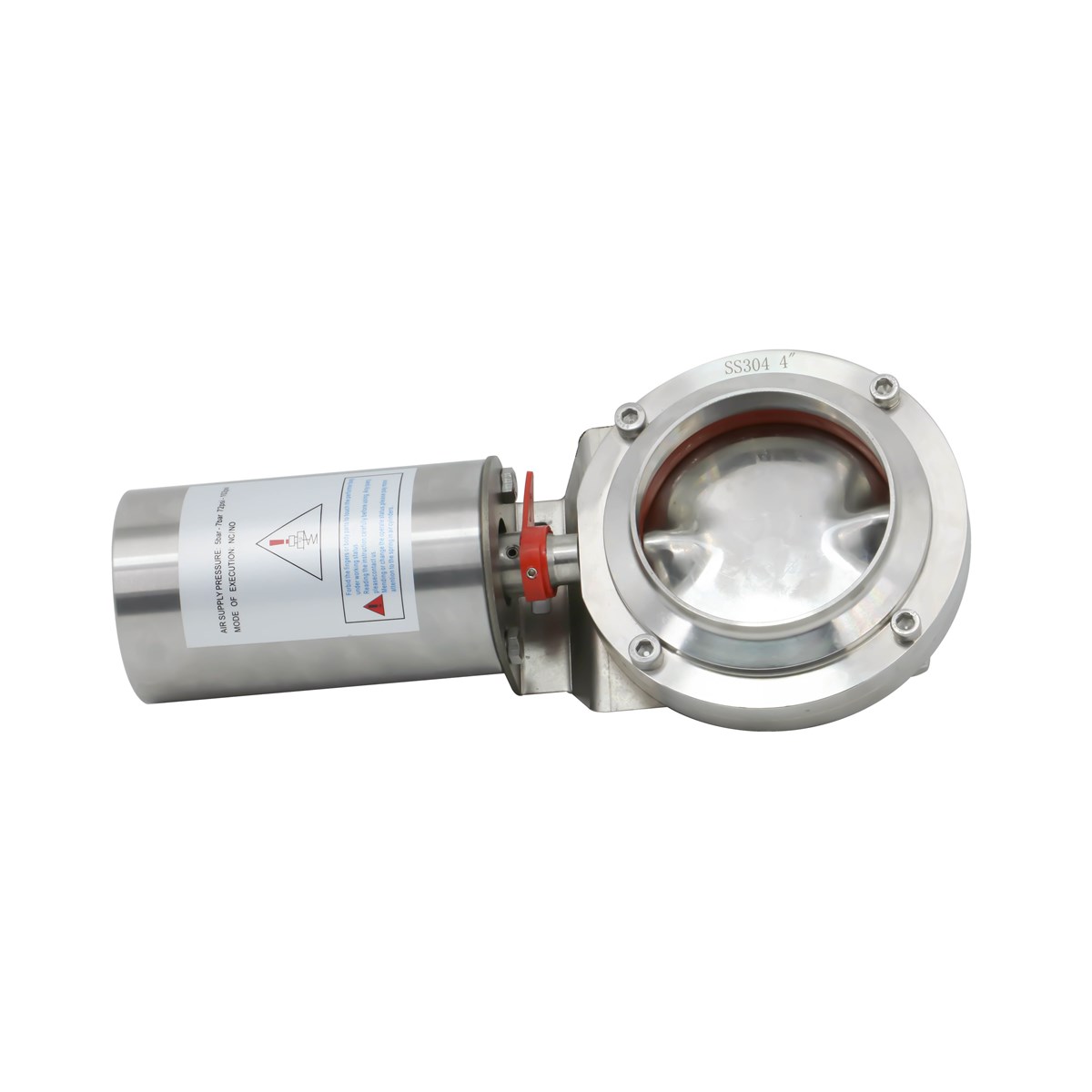

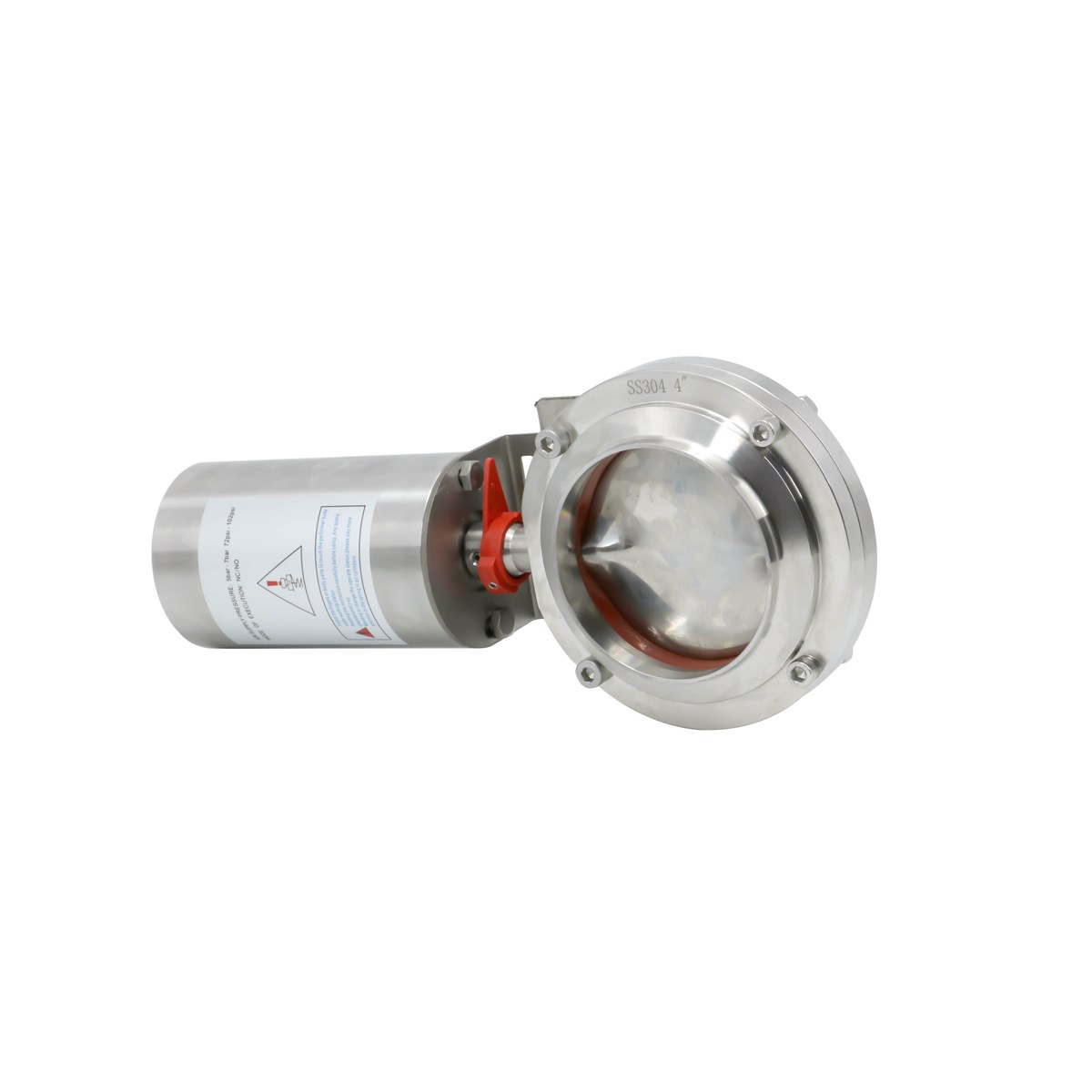

DN100 Stainless Steel Pneumatic Welding Valve with SS304 Grade

FOB Price:	10.00 - 70.00 USD/Set
Supply Ability:	3,000 Set(s) per Month
Shipping:	By Sea,By Air,By DHL
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	504535 CMS

Quick Details

Brand Name: Compass
Temperature of Media: Normal Temperature
Material: Stainless Steel
Pressure: Low Pressure
Standard or Nonstandard: Standard
Model Number: CM-BV339
Port Size: 25.4mm
Media: Water
Power: Pneumatic
Structure: Butterfly
Material Quality: SS304, SS304L ,SS316, SS316L
Specifications: 1"-6",DIN 25-150
Availabe Standard: SMS,DIN,3A,Idf,Rjt, BS, ISO
Pneumatic Head: Normally Closed,Nornally Open,Air to Air
Working Principle: Remote-Controlled Operation by The Driving Gear or
Availabe Connection: Welding Ends,Triclamp Ends,Union Ends,Male Ends
Application: Milk,Juice,Beer,Beverage,Pharmacy,Ect
Temperature Range: -20 Degree Celsius to 120 Degree Celsius

Specifications

DN100 Stainless Steel Pneumatic Welding Valve with SS304 Grade

Applications:
Butterfly valves, no matter manually or automatically, can be used in most fluid product applications in the food-processing, pharmaceutical and chemical industries.

Technical Data

Standard	DIN, 3A, SMS, RJT
Flow Medium Parts	304, 304L, 316L(1.4301, 1.4307, 1.4404)
Port Size	Dn10-150 or 1/2"-150
Way of Connection	Weld, Male, Clamp, Flange
Gasket for butterfly valve	Silicone, EPDM, Viton, NBR
Application	It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc
Working principle	Remote-controlled operation by the driving gear or manual operation by handle.
Three drive forms	Normally closed, normally opened and opened and closed by two air flues seperately.
Handle	Metal handle, reinforced nylon handle
Handle	Adjustable handle, built to order according to users' request.
Advantage	1. Sanitary condition passed FDA Certification
	2. with strong resistance to acid, alkali and high temperature
	3. Slight deformation under long-term compression presicion forging valve cartridge. Withstand voltages
	4. Appearance desigh: Keep pace with international latest designs
	5. Service life: Comparable to imported butterfly valve, with 18months war
