Wholesale High Aluminac Rubber Ceramic Lining

FOB Price:	20.00 - 65.00 USD/Piece
Supply Ability:	1,000,000 Piece(s) per Year
Shipping:	FOB,Qingdao,China
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Fumigation-free tray packaging

Quick Details

Brand Name: Firstar
material: Ceramic and rubber
color: whire and black
Size: 500*500*63.. max
application: mining wear solution
Model Number: 69091200
Al2O3: 92/95/99
Density: 1.4G/Cm3
Gpa: >1400
Shipping Way: Fob, CIF, DDP, DDU etc
Size: 8-63mm
Certificate: ISO
Function: Wear Abrasion Resistant
Sample Time: 2-15
Bulk Order Time: 10-30 Days
Key Words: Aluminac Rubber Ceramic Lining

Specifications

Wholesale Wear Abrasion Resistant High Alumina Rubber Ceramic Lining

Product description:
Also named wear ceramic parts, wear rubber ceramic plate, wear-resistant ceramic pads.
Ceramic rubber composite pads&plate is the use of rubber vulcanization process, to embed the wear-resistant ceramic vulcanized into rubber, stick it on the inner all of the equipment with the adhesive paste. As customers' requirements, it also can be vulcanized together with steel plate, with bolts or not.
Features:
It combines wear-resistance of ceramic and impact-resistance of rubber, apply to convey systems equipment work under normal temperature, and can bear some impact.
Applications:
Pipes and tanks
Deflectors
Launders
Spill Face Sloping Walls&Loading Chutes
Bins&Hoppers
Mill feed components

S.No.	Material	Attributes	Properties
1	Ceramic Tiles	Material	92%, 95%, T95%,96%, ZTA
2	Rubber	Component	Natural rubber, nitrile butadiene rubber ,Flame-Retardant ,others
		Density	~1.4g/cm3
		Tensile strength at break	≥15Mpa
		Elongation at break	≥250%
		Shore Hardness	45-65
		Adhesive between tile and rubber	1.2-3.0 Mpa
		Adhesive between rubber and equipment	≥3.5 Mpa
		Thermal conductivity.(normal temperature)	2w/mk
		Aging period	≥15 Years
		Working temperature	-50C - 200C
3	Steel plate	Material	Q235A
		Density	7.85g/cm3
		Thickness	5-6mm
4	Adhesive	Appearance	Brown glutinous liquid
		Solid content	20±3%
		Viscosity	≥2.5 Mpa
		Peel strength	48h N/2.5cm≥120
		Compressive strength	≥850 Mpa
		Working temperature	-20C - 100C

Whole Plate (mm)	150x300, 300x300, 450x000, 500x500, 600x450 etc.
Ceramic Size (mm)	Square Tile: 10x10, 20x20, 33x33, 50x50, 100x100, 150x100,etc.
	Hexagonal Tile: 12x3, 12x6, 19x7, 19x12.5, 19x25,etc.
	Locking block with lock and groove: 38x38, 40x40, 30x30,etc.
	Dimple Tile: 20x20 with 5 dimples, 20x30 with 18 dimples, 20x30 with 13 dimples, 20x20 with 1 semi-spherical surface
Ceramic Thickness (mm)	3-75mm
Alloy Steel Size (mm)	Thickness: 3-10mm
Rubber Thickness (mm)	Depends on the impact stress expected.

Different kinds of products:Ceramic Mosaic Pieces, Ceramic Pipe Tiles, Ceramic Curved Tiled(with or without holes), Ceramic Tapered Tiles, Ceramic Cylinders, Stell Lined with Ceramic Tiles, Irregular Shaped Tile, Clipping Ceramic Tiles Interlocking Bricks.
We have so many kinds of sizes.and we are also accept customized.
Mineral Processing equipment operates in some of the harshest and remote locations. It is crucial to the Mineral Processing industries that this equipment continues to operate efficiently and its lifecycle is maximized to minimize downtime. by appropriately protecting equipment from the extreme wear caused by the high speed and flow rates of ore when processed as a slurry ensures better equipment longevity. the slurry is highly abrasive and can not only cause wear damage to wet processing equipment but also with the inclusion of chemicals and heat, there is a constant risk of corrosion and dangerous leakage.
Wear Protection ceramic Linings are used throughout Mineral Processing to protect the steel surfaces of equipment from wear and corrosion. They are used on a range of equipment including pipes, tanks, chutes, pumps, flotation cells, thickeners, launders, and feed spouts or chutes.

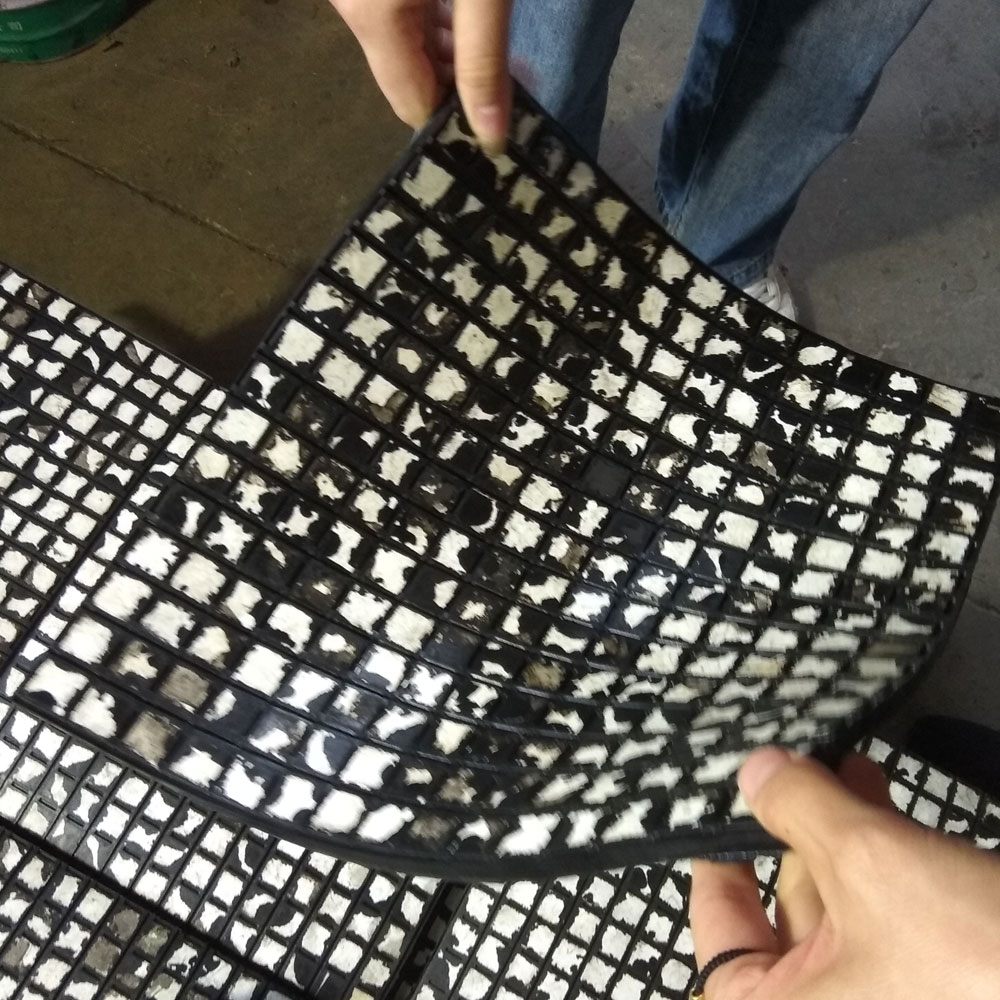

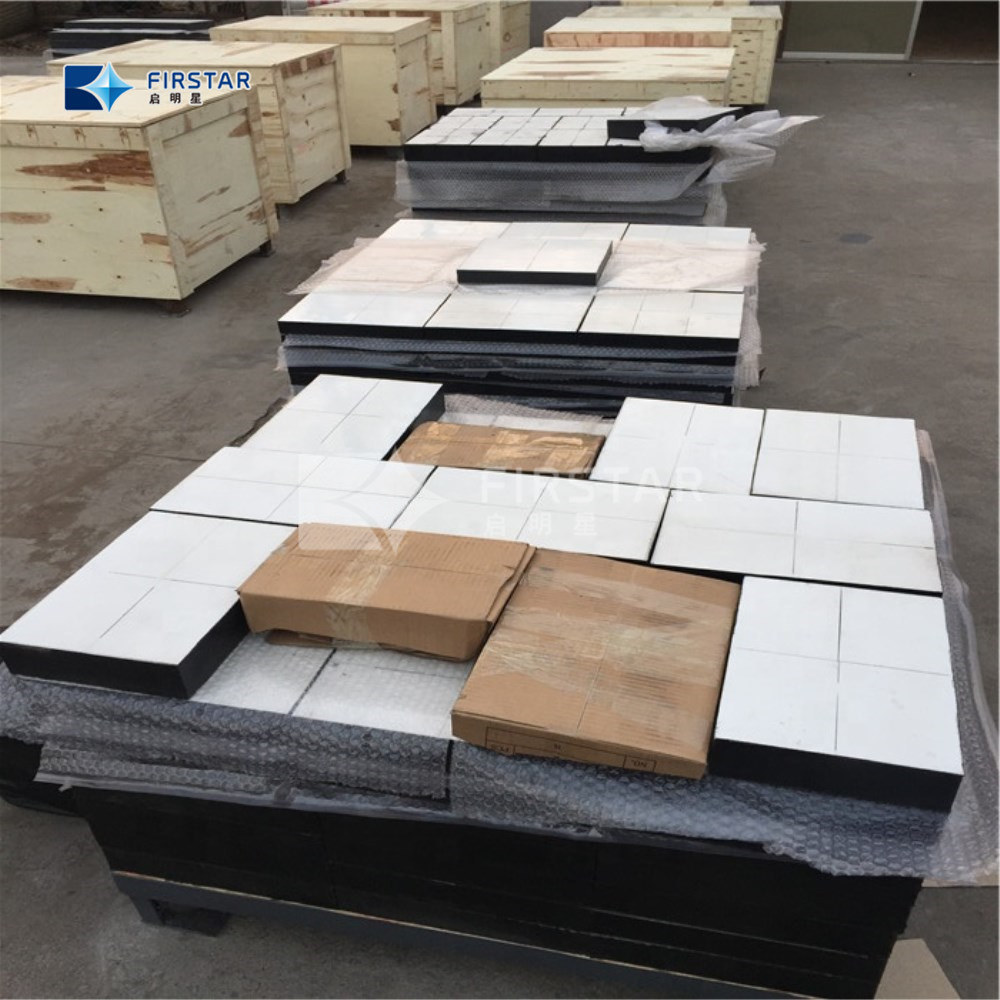

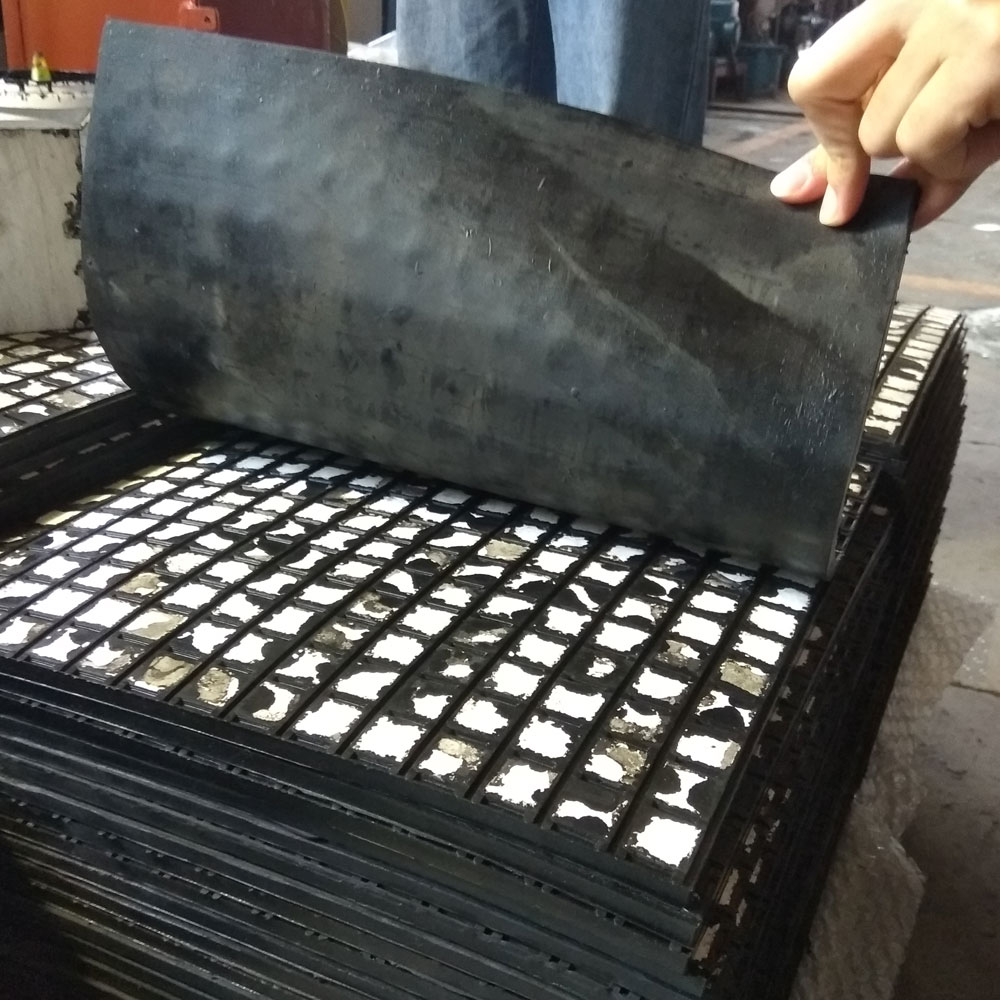

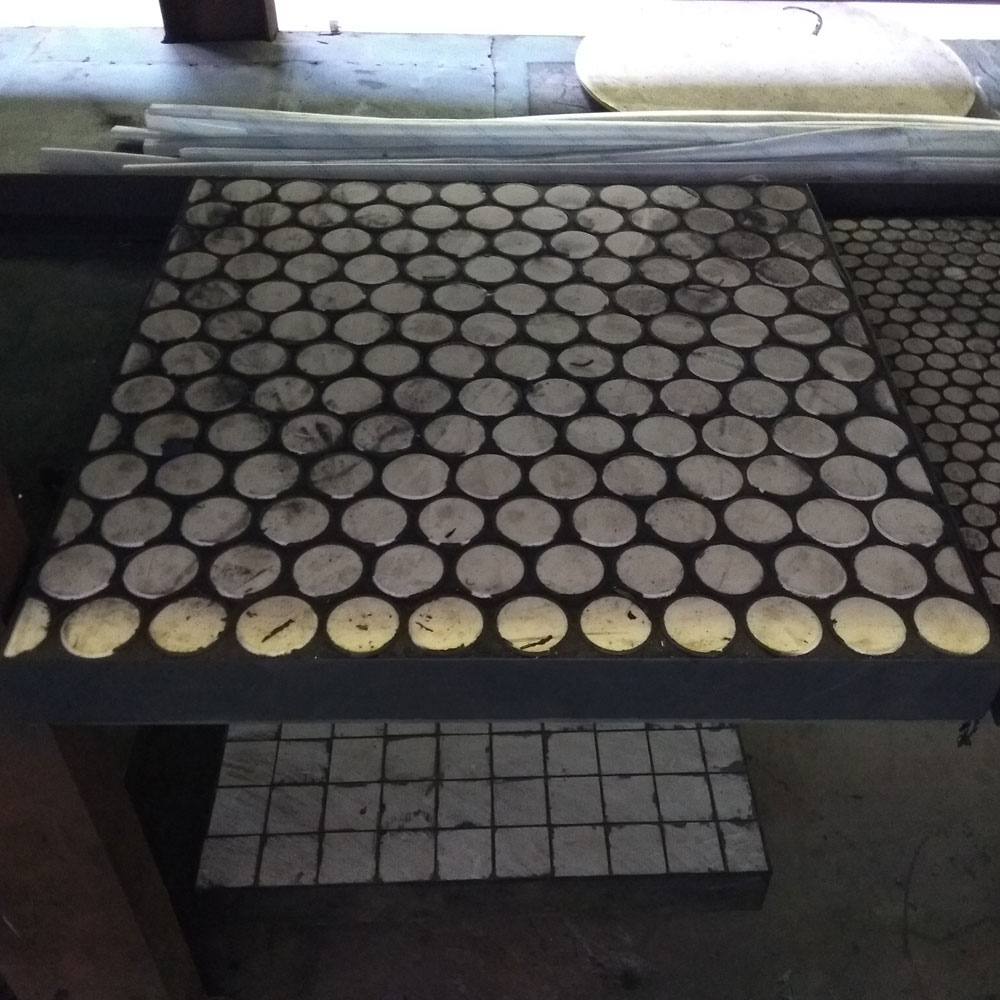

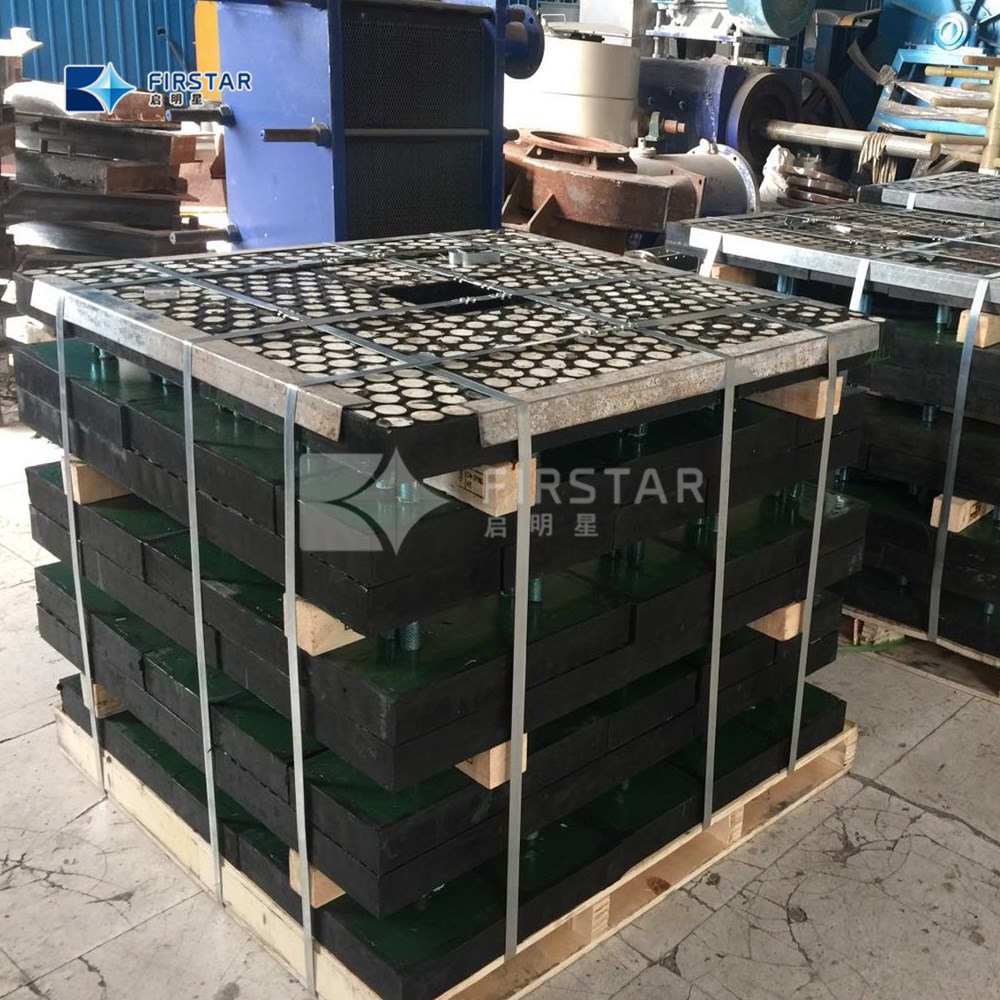

Product Picture:
