Home  >Products Catalog > modem > TCP IP Wireless RS232 & Mini USB Interface Wireless 4g Lte M2m Modem for Remote Meter Reading Use In Industry

TCP IP Wireless RS232 & Mini USB Interface Wireless 4g Lte M2m Modem for Remote Meter Reading Use In Industry

FOB Price: 39.00 - 80.00 USD/Piece
Supply Ability: 1,000 Piece(s) per Week
Shipping: SHENZHEN port or HONGKONG port
Payment Terms: T/T, Western Union
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: neutral packing

Quick Details

  • Brand Name: BL
  • Frequency: HSDPA UMTS2100MHz/GSM EDGE GPRS850/900/1800/1900MHz
  • Frequency Range: 800-2100
  • Polarization: 1
  • Weight: 40g
  • Model Number: EC25
  • Products Status: Stock
  • Interface Type: RS-232
  • Certification: FCC, ce, RoHS
  • Model Number: Quectel EC25A/E/AU/G 4G Modem
  • Warranty: 1year
  • internet service: TCP/UDP/FTP/HTTP/SMTP/POP3/SNMP/SSL
  • Control via AT Commands: 3GPP TS27.007 and enhanced AT Commands
  • data speed: LTE LTE-FDD Max 150Mbps (DL) Max 50Mbps (UL)
  • Function: mms/sms
  • Style: External

Specifications

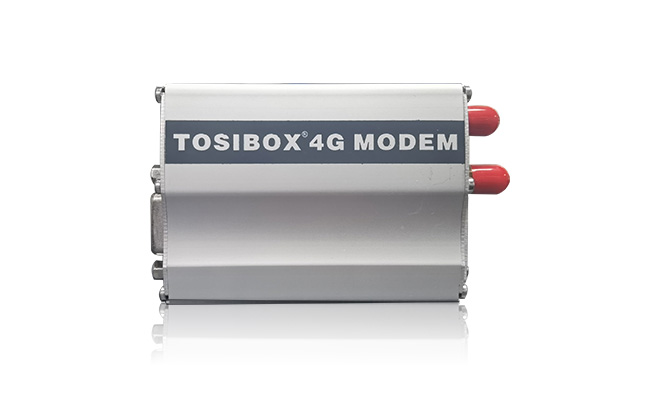

TCP IP M2M Cat 4 4G RS232 Modem with Quectel EC25A/E/AU/G GSM GPRS modem

BAILING Supreme 20_4G LTE_MODEMS EC25x
 TCP IP Wireless RS232 mini USB interface wireless 4g lte m2m modem for remote meter reading use in IndustryTCP IP Wireless RS232 mini USB interface wireless 4g lte m2m modem for remote meter reading use in IndustryTCP IP Wireless RS232 mini USB interface wireless 4g lte m2m modem for remote meter reading use in IndustryTCP IP Wireless RS232 mini USB interface wireless 4g lte m2m modem for remote meter reading use in IndustryTCP IP Wireless RS232 mini USB interface wireless 4g lte m2m modem for remote meter reading use in Industry






BAILING Supreme 20_4G LTE_MODEMS EC25x -series of modems are well known and used widely wherever a cellular solution is required.
the new Smart BAILING Supreme 20_4G LTE_MODEMS EC25x - category 1 modem is physically and electrically compatible to the 3G and 2G
Versions, making swap outs in the field easy. Importantly the new 4G modem comes with the BAILING Smart Stack as standard which
Will allow you to make full use of your preferred mobile network irrespective of the capability of your remote device.

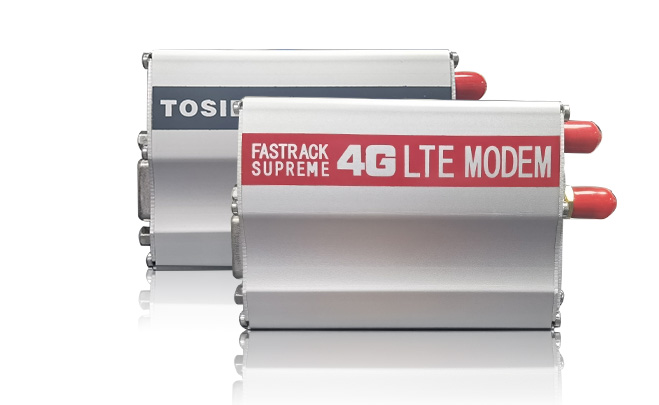

Housed in a strong and lightweight Aluminum case and with full Industrial Grade components, is ideal for all Industrial remote
Data applications including:

Remote Meter Reading / Smart Metering
Fleet Management
Security
Signage
Irrigation and other control applications.

Specification
Specification
Main features:

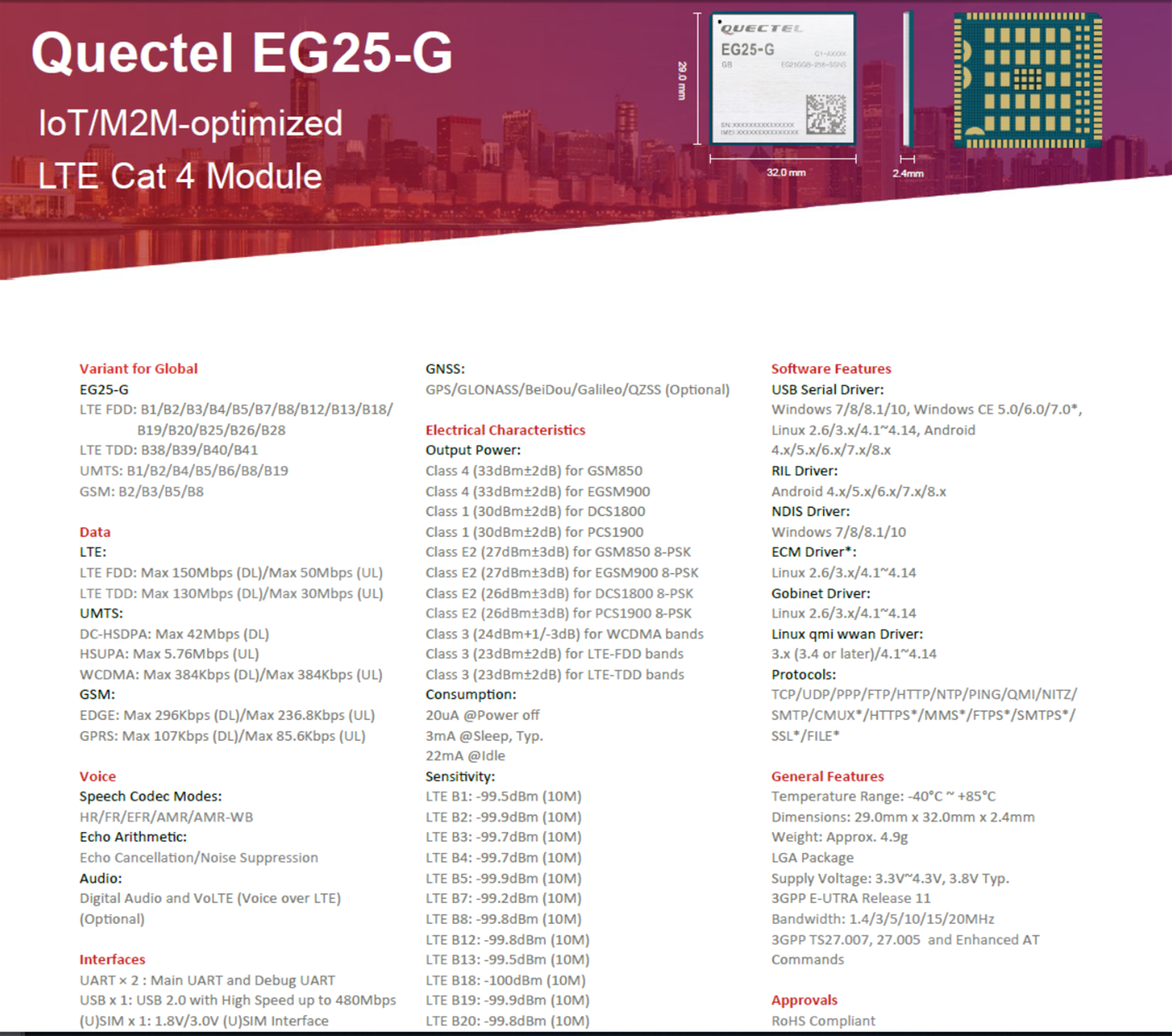

Module: Quectel
Quectel 4G EC-25A4G
Frequency band:


EC25-E
FDD LTE: B1/B3/B5/B7/B8/B20 2100/1800/850/2600/900/800MHZ
TDD LTE: B38/B40/B41 2600/2300/2500MHZ
WCDMA: B1/B5/B8 2100/850/900MHZ
GSM:B3/B8 900/1800
EC25-A
FDD LTE: B2/B4/B12 1900/1700/700MHZ
WCDMA: B2/B4/B5 1900/1700/850MHZ
EC25-AU
FDD LTE: B1/B3/B4/B5/B7/B8/B28 2100/1800/1700/850/2600/900/700MHZ
TDD LTE: B40 2300MHZ
WCDMA: B1/B2/B5/B8 2100/1900/850/900MHZ
GSM:B2/B3/B5/B8 1900/1800/850/900MHZ
EC25-J LTE: B1/B3/B8/B18/B18/B19/B26 2100/1800/900/850/800/850 MHZ
TDD LTE: B41 2500MHZ
WCDMA: B1/B6/B19 2100/850/800MHZ
GSM:B3/B8 900/1800
EC25-V FDD LET:B4/B13 1700/700MHZ
Specifications
LTE LTE-FDD Max 150Mbps (DL) Max 50Mbps (UL)
LTE-TDD Max 130Mbps (DL) Max 35Mbps (UL)
DC-HSPA+ Max 42Mbps (DL) Max 5.76Mbps (UL)
UMTS Max 384Kbps (DL) Max 384Kbps (UL)
TD-SCDMA Max 4.2Mbps (DL) Max 2.2Mbps (UL)
EDGE Max 236.8Kbps (DL) Max 236.8Kbps (UL)
GPRS Max 85.6Kbps (DL) Max 85.6Kbps (UL)
HR, FR, EFR, AMR, AMR-WB coding schemes
SMS mobile Terminate/Originate
BAILING's Smart Stack.
Feature
LTE Version 3GPP E-UTRA Release 10
Bandwidth 1.4/3/5/10/15/20MHz
Standard 3GPP at commands TS 27.007
Output power: Class 3 @ LTE and Class 3 @ UMTS.
Input voltage: 5V to 32V
Current consumption (TBC):
Standby: 30mA @ 12V
Average in Use (3G): 250mA @ 12V
Average in Use (4G): 205mA @ 12V
Support 3V/1V8 U-SIM card
Dimension: 74mm x 55mm x 24mm
Weight: 100g approx.
Operating temperature: -30C° to +85C°
RoHS compliant Data
Further Features:

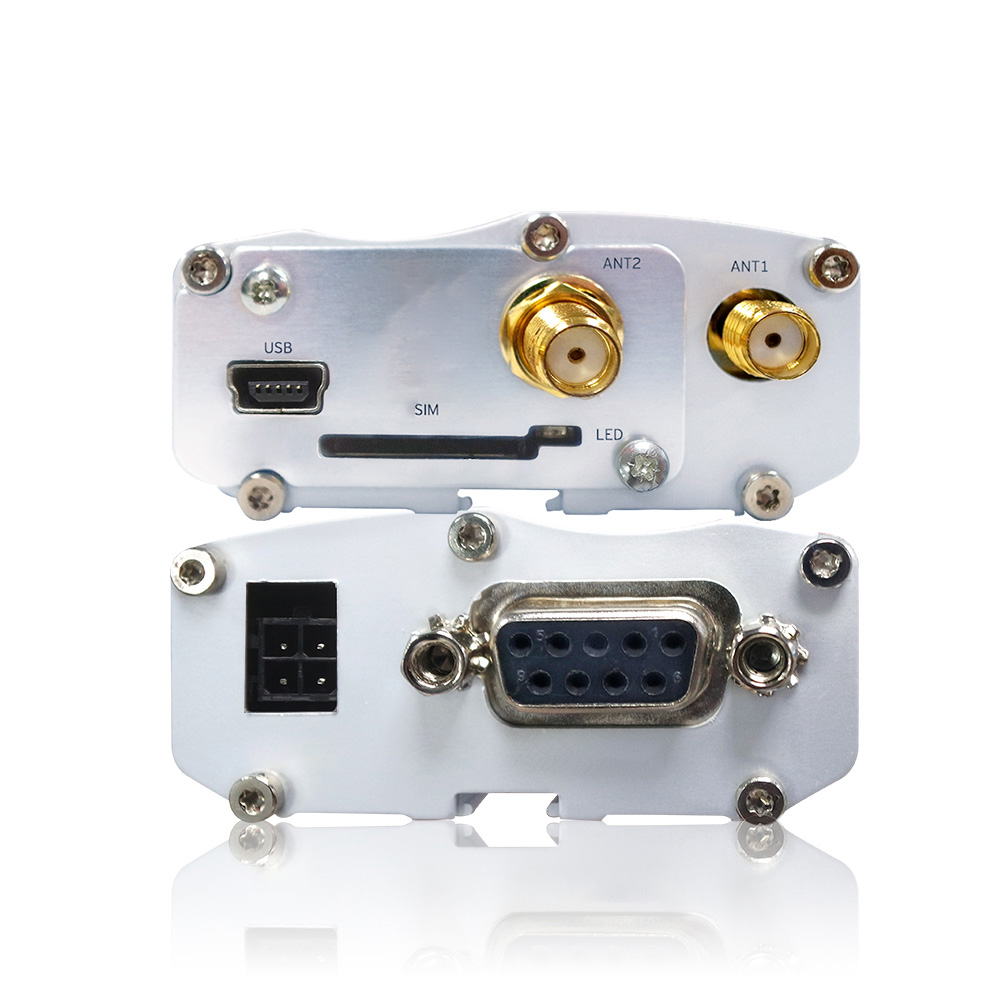

Serial Interface

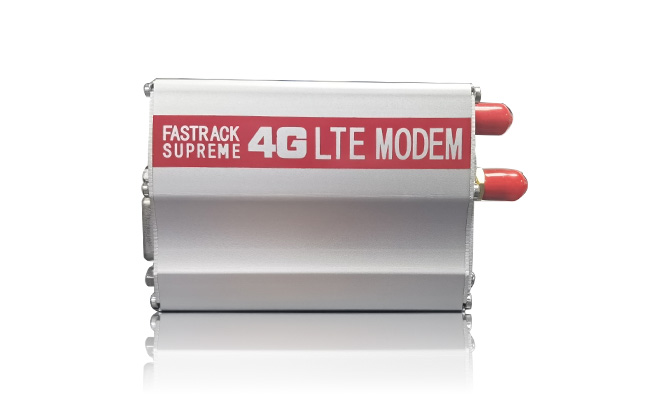

Physical: Strong lightweight Aluminum case

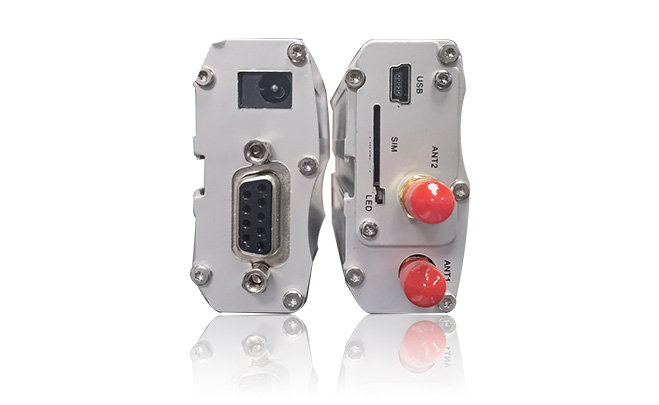

Serial RS232 and power through DC

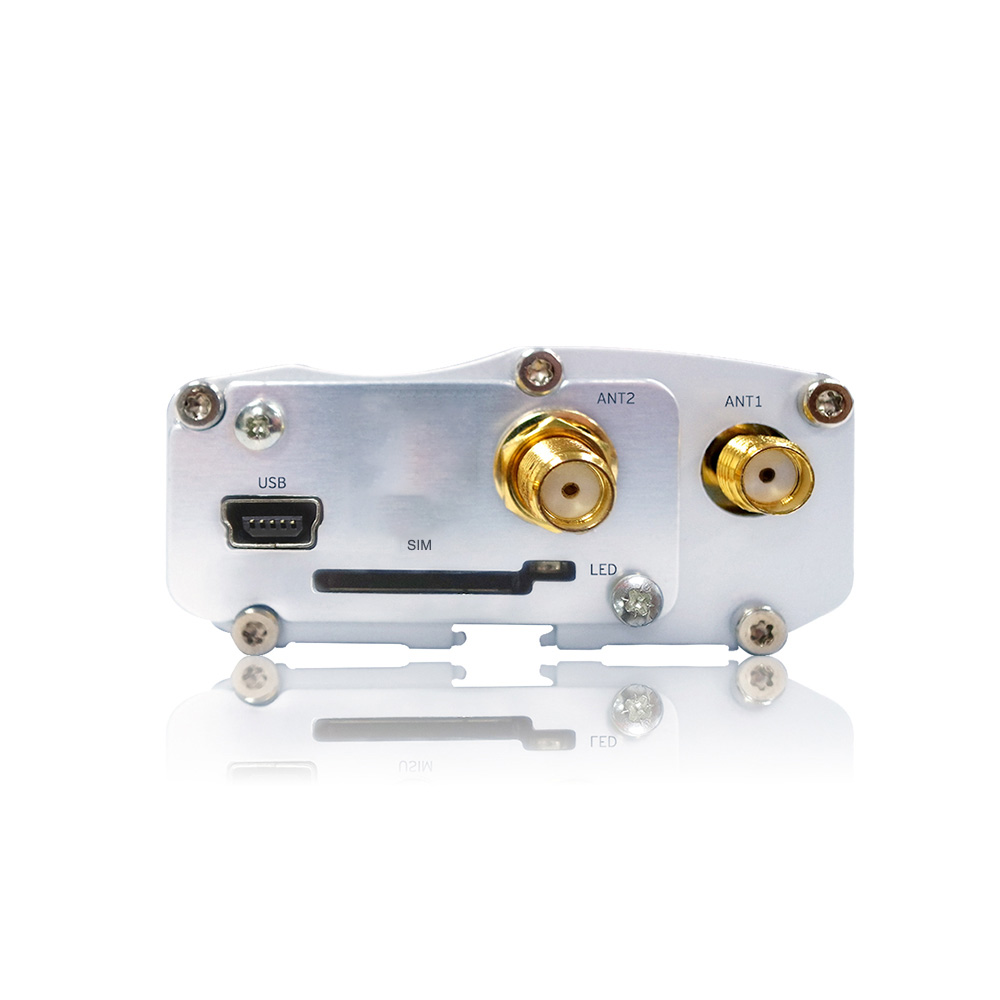

RF connector: 2 x SMA male
Small size: 66mm x 52mm x 24mm/18mm
Weight: approx. 40 grams
Power in: 5Vdc to 32Vdc
UDP/TCP stack: BAILING Smart Stack
Temperature range: -30C to +85C
SIM holder accepts standard 3V/1.8V mini SIM
Single mode LTE operation
LTE FDD bandwidth 1.4-20MHz
System release 3GPP Rel 11
4G Cat 4 up to 150Mbps downlink, 50Mbps uplink
3G HSPA+ up to 42Mbps downlink, 5.76Mbps uplink
SMS mobile Terminate/Originate
FOTA and DOTA functions supported
Protocols
TCP/UDP/PPP/FTP*/HTTP*/SMTP*/MMS*/NTP/
PING/DTMF*/FILE*/CMUX*/QMI
TCP IP Wireless RS232 mini USB interface wireless 4g lte m2m modem for remote meter reading use in Industry

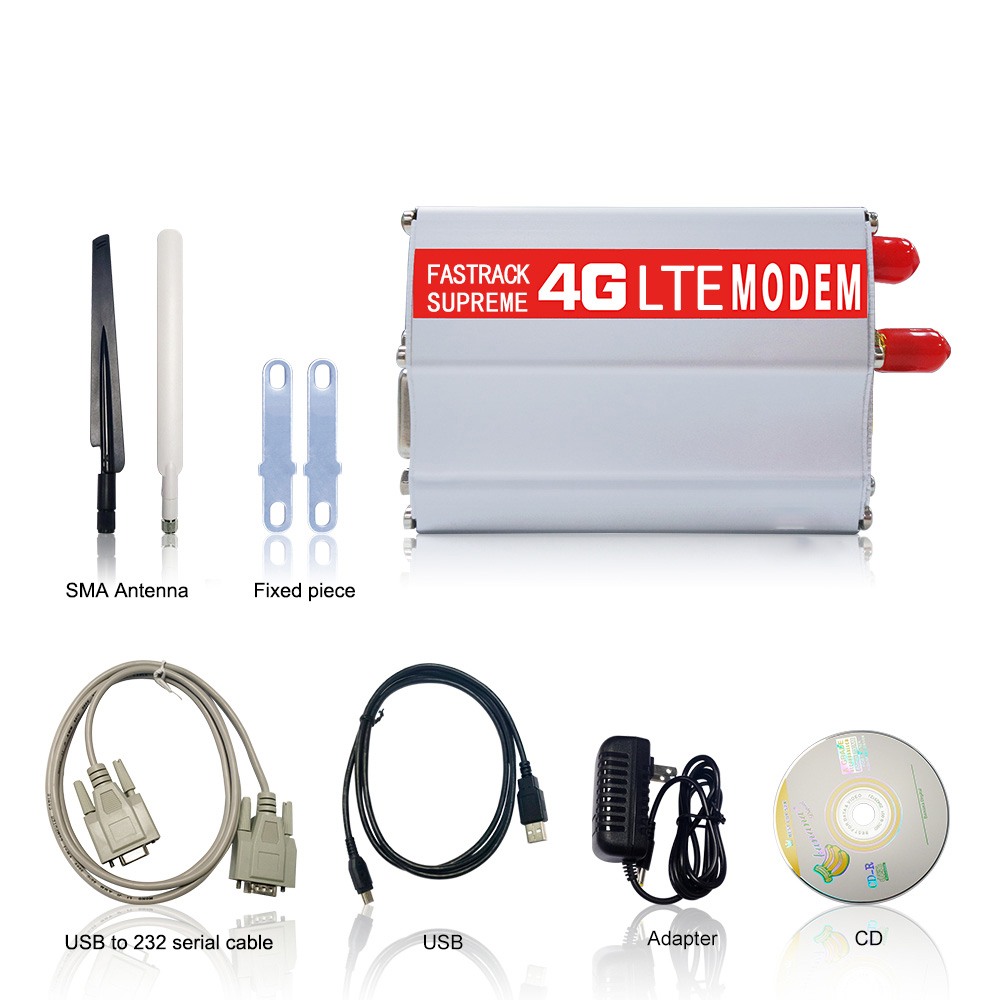

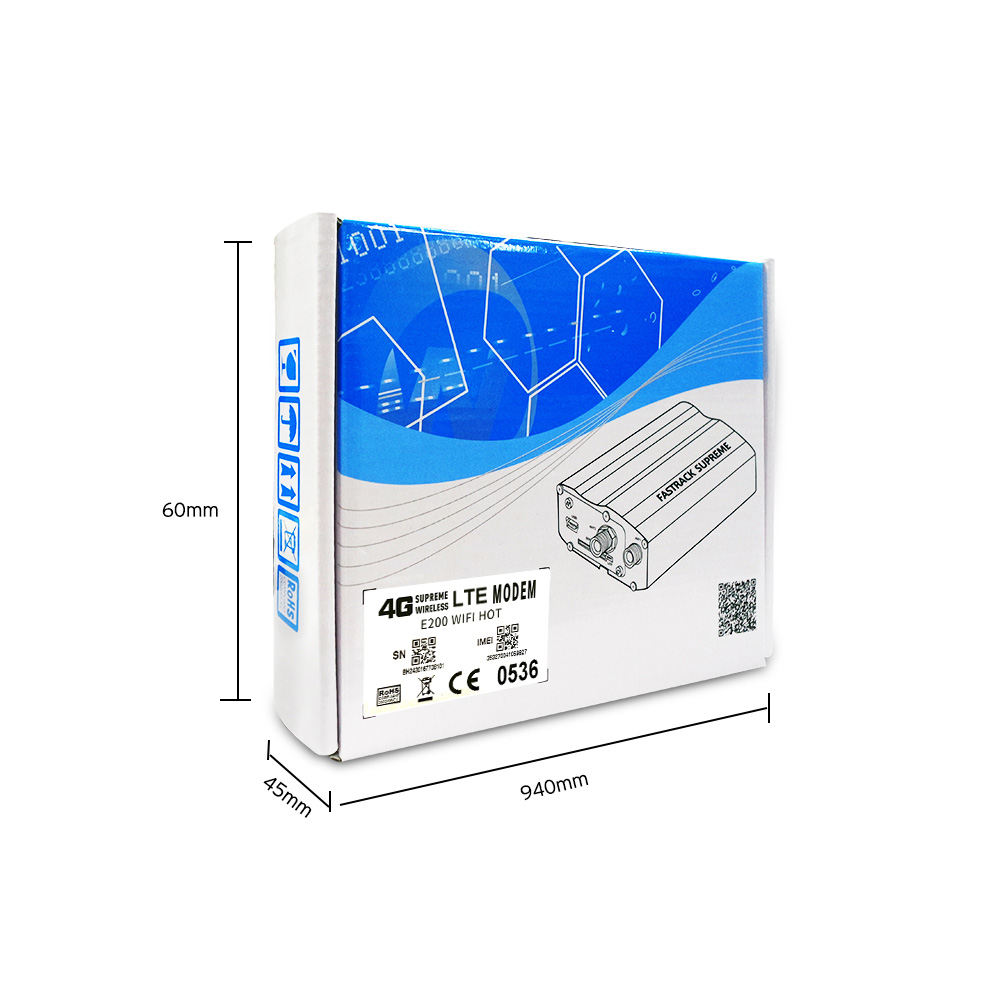

Packing & Delivery
Packing & Delivery
TCP IP Wireless RS232 mini USB interface wireless 4g lte m2m modem for remote meter reading use in Industry
TCP IP Wireless RS232 mini USB interface wireless 4g lte m2m modem for remote meter reading use in IndustryTCP IP Wireless RS232 mini USB interface wireless 4g lte m2m modem for remote meter reading use in Industry
TCP IP Wireless RS232 mini USB interface wireless 4g lte m2m modem for remote meter reading use in IndustryTCP IP Wireless RS232 mini USB interface wireless 4g lte m2m modem for remote meter reading use in Industry
TCP IP Wireless RS232 mini USB interface wireless 4g lte m2m modem for remote meter reading use in Industry
TCP IP Wireless RS232 mini USB interface wireless 4g lte m2m modem for remote meter reading use in Industry
