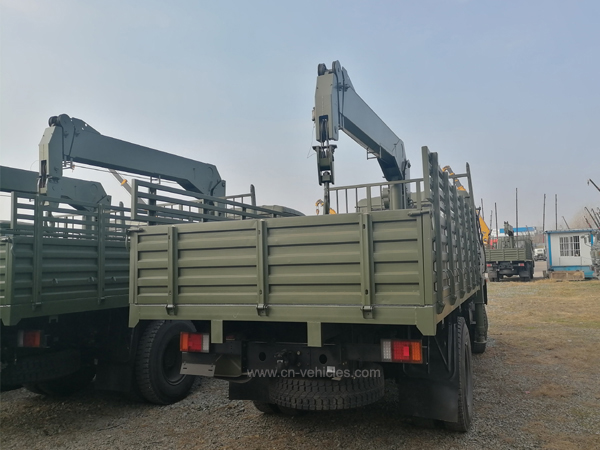

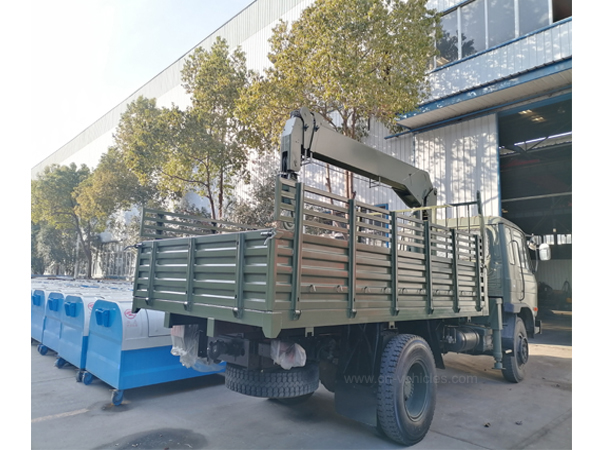

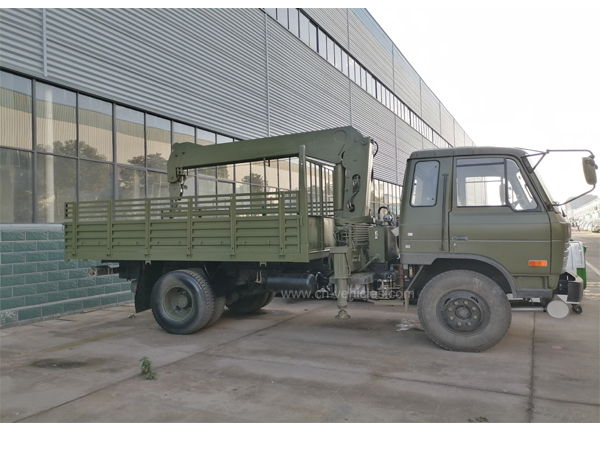

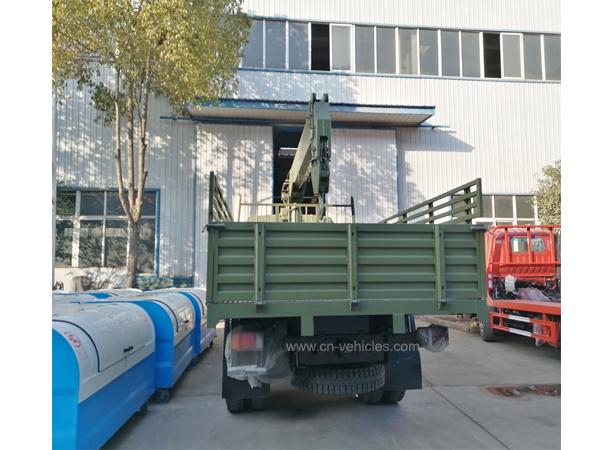

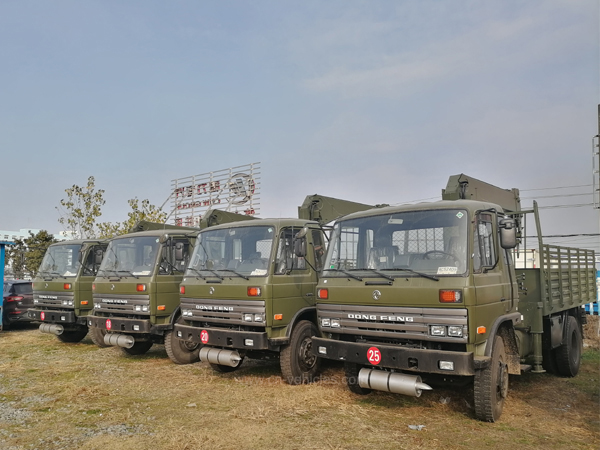

Chengli Factory Export Dongfeng DFAC Truck Mountd 4 Ton Straight Crane for Army with Lorry
| FOB Price: | 15000.00 - 43000.00 USD/Unit |
|---|---|
| Shipping: | Any Chinese Sea port |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
Quick Details
- Feature: Truck Crane
- Brand Name: Dongfeng DFAC
- Max. Lifting Load: 4ton
- Rated Loading Capacity: 10ton
- Year: 2020
- Make: Chengli
- After-sales Service Provided: Overseas third-party support available
- Warranty: 12 month
- Product name: Truck Mountd 4 Ton Straight Crane
- Brand: Dongfeng DFAC
- Capacity: 4ton
- Usage: Army
Specifications
Chengli factory export Dongfeng DFAC Truck Mountd 4 Ton Straight Crane for Army with Lorry
1 telescopic boom or knucle boom all available
2 crane brand:CLW,ZOOMLION, SMJ, SANY or others
3 Crane capacity: 2 ton,3.2 ton,4 ton,5 ton,6.3 ton,7 ton,8 ton,10 ton,12 ton,14 ton,16 ton,20 ton,25 ton,30 ton,40 ton,60 ton,70 ton,80 ton,100 ton,120 ton,150 ton etc
Truck crane,also called boom truck crane,mobile truck crane, truck mounted crane, hydraulic folding truck crane,telescopic straight boom crane,truck with crane, crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale etc
A crane mounted on a truck carrier provides the mobility for this type of crane. this crane has
Two parts: the carrier, often referred to as the Lower, and the lifting component which includes the
Boom, referred to as the Upper. these are mated together through a turntable, allowing the upper
to swing from side to side. these modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane. The upper is
Usually powered via hydraulics run through the turntable from the pump mounted on the lower. in
Older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the
crane down the road and ran a hydraulic pump for the outriggers and jacks. the one in the upper ran
the upper through a hydraulic pump of its own. Many older operators favor the two-engine system
Due to leaking seals in the turntable of aging newer design cranes.
Technical date:
TRUCK MOUNTED CRANE | ||
# |
Descriptions |
Specifications and types |
General
|
Truck Brand |
Chengliwei (our brand) |
Chassis Brand |
Dongfeng | |
Approx. Dimension |
7100*2300*3150 mm | |
GVW./Kerb Wt. |
8275/ 4780kg | |
Cab
|
Cab Capacity |
3 persons' seat |
Air Conditioner |
Air Conditioner is optional | |
Chassis
|
Drive Type |
4X2,LHD or RHD |
Fuel Type |
Diesel | |
Engine Make & Model |
Chaochai engine | |
Power |
120hp | |
Emission Standard |
Euro II or EURO III or EURO IV | |
Brake |
Air Brake | |
Wheelbase/No.of axle |
3800 mm / 2 | |
Tyre Specfication |
7.50-16 | |
Tyre Number |
6 Tyres and 1 spare tyre | |
Max Speed |
80 km/h | |
Paint |
Automative metallic paint | |
Cargo box |
Cargo body dimension |
4350*2050*550 mm |
Crane
|
Max Lifting Capacity |
1000kg/2000kg /3200 kg /4000kg |
Installation Space |
550-850mm | |
Structure& Function |
Telescopic/Articulated boom crane loading weight:2T,3.2T,4T,5T, 6.3T,8T,10T,12T,14T,16T,20T 25T or others Truck Cargo length: 3m-13m. Crane Brand optional: ZOOMLION, SMJ, SANY,UNIC or others. Crane Installation Site: Rear or Middle part | |
