>Products Catalog > Mini DIY CNC 3040 Woodworking Router Machine Engraving Tool Milling Machinery

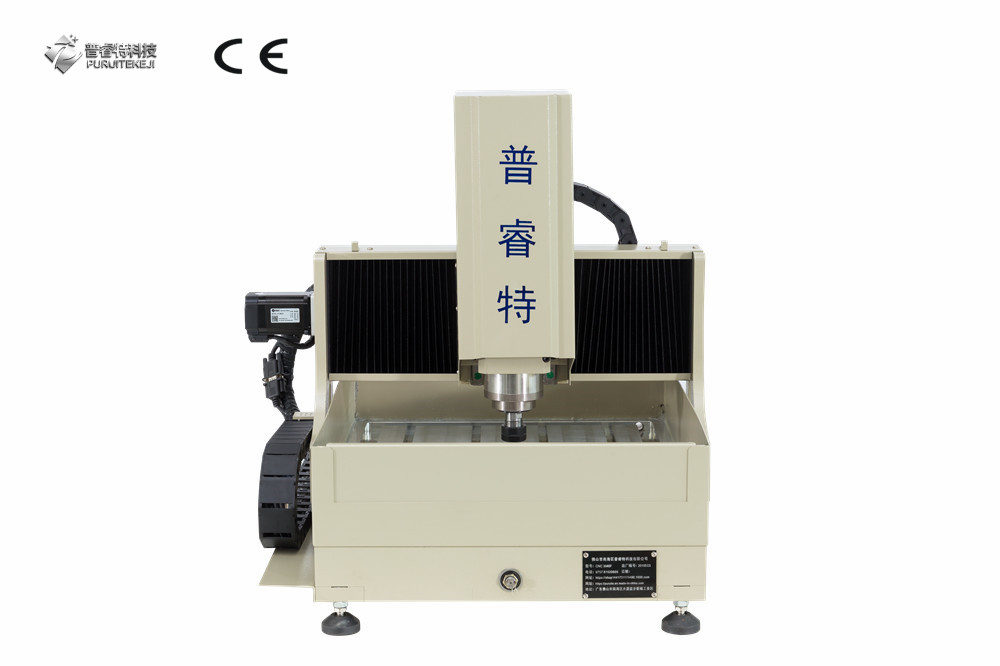

Mini DIY CNC 3040 Woodworking Router Machine Engraving Tool Milling Machinery
| FOB Price: | 1470.00 - 1500.00 USD/Set |
|---|---|
| Supply Ability: | 1,200 Set(s) per Year |
| Shipping: | Ex.w |
| Payment Terms: | Western Union |
Related products from verified members
| Export Markets: | Eastern Europe, Southeast Asia, Africa, Western Europe |
|---|---|
| Packaging Details: | foam+ carton |
Quick Details
- After-sales Service Provided: Overseas third-party support available
- Warranty: 1 year
- CNC or Not: CNC
- Brand Name: FoshanPuruite
- Condition: New
- Certification: 726x822x750mm(LxWxH)
- Weight: 55kg
- Dimension(L*W*H): 726x822x750mm
- Power(W): 2200
- Voltage: 220V(AC)
- Type: Universal
- Model Number: CNC3040SW
- Working Area: 300X400X130mm(X*Y*Z)
- Feed high: 115mm
- Motor Drive Power Supply: AC 110-220V, 240W, Output: DC 24V 10A
- Rotate Speed: 0-24000r/min
- Cooling Method: Water cooling
- Carving Instruction: G code/TAB file or NC file or NCC file
- Acceptable Software: Mach3 or EMC2
Specifications
| Machine Dimension | 726x822x750mm(LxWxH) |
| Workbench Dimension | 480x640mm(LxW) |
| Frame Material | Aluminium alloy and metal plate |
| Working Area | 300x400x130mm(X*Y*Z) |
| Feed high | 115mm |
| Slide Unit | X, Y,Z axis: 20 high-intensity square orbit |
| Drive Unit | X, Y, Z axis: SFU1605 ball screw |

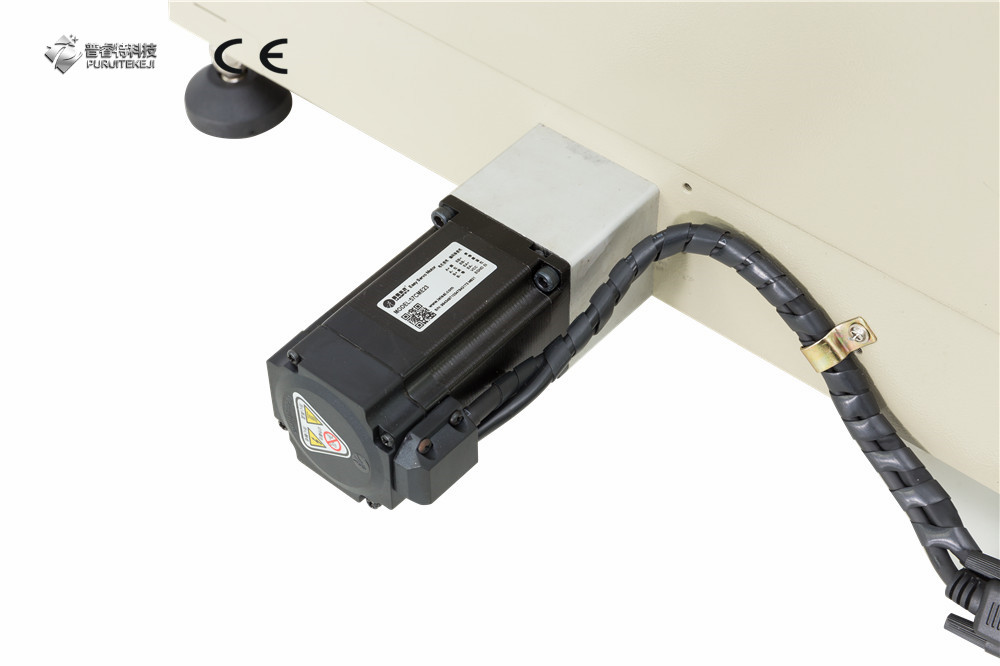

| Stepper Motor | 57 mode, 3A two-phase stepping motor |
| Drive Power Supply | AC 110-220V, 240W, Output: DC 24V 10A |
| Max idling speed | 50-1500mm per min, |
| Cutting Speed | 50-1500mm/min |
| Standard Spindle | 2200W, ER11 collet, 6mm core |
| Repeated Positioning Accuracy | ≤0.05mm |
| Positioning Accuracy | ≤0.03mm |
| Rotate Speed | 0-24000r/min |
| Cooling Method | Water cooling, come with submersible pump |
| Carving Instruction | G code/TAB file/nc file/NCC file |
| Acceptable Software | Mach3 or EMC2 |
| Converter | AV 220V, 1500W, 0-400Hz |
| Electric Protection | Emergency Stop Button |
| Communication Interface | USB port to computer |
| Software Environment | Windows XP 32 bite, Windows 7 32 bite |
| Input Voltage | AC220V(AC110V customized) |
FAQ:
1. Delivery time?
for standard machines, 5-7 days;
for customized machines, according to clients specific requirements, 15 to 30 days.
2. Payment terms?
30% for deposit, 70%balance before shipping by T/T, West Union or Paypal.
3. Shipment?
for FOB or CIF, shipped by our ship partner.
for EX.W, shipped by you or your agents.
4. Operate the machine?
A. Detail process guide video to show you how to operrate the machine. B. If available, welcome to our factory, free training will be provided until you got it. C. English operate manual will also come with the machine.
5. Guarantee & after-sales service?
A. the machine guarantee is 12 months.
B. 24 hours on line service, free technical support by email, fax, MSN, Skype, phone, TradeMessenger.
6. Problems during warranty period?
We will supply free parts during the warranty period. or you will pay for it.
Any problem after warranty period, we will provide solutions in 48hours.
7. MOQ?
Only ONE.
8. how to order?
Requirements(used for? and special requires?)
→suitable configuration provided by professional designer
→final confirmation
→PI
→deposit
→production
→balance
→shippment
→after-service
