Changzhou Weitefu Tools Co., Ltd.

China Manufacturer with main products: Solid Carbide End Mill, Tungsten Carbide Drilling Bit, Carbide Reamer, Forming Tools, PCD Tools, Boring Tools, Step Drill, Deep Hole Drills

Home  >Products Catalog > non-standard carbide drilling tools > VOTFO Factory Wholesale 5D Tungsten Carbide Drill Bits without Inner Coolant

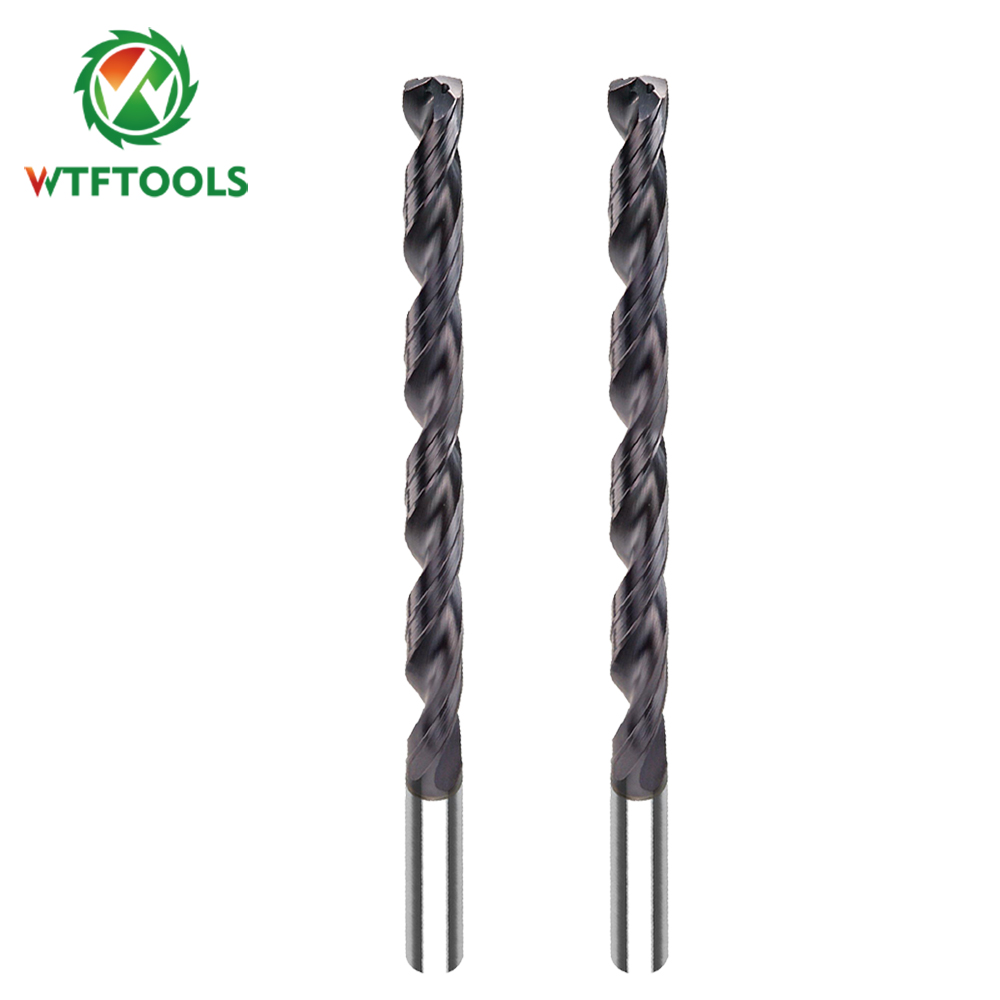

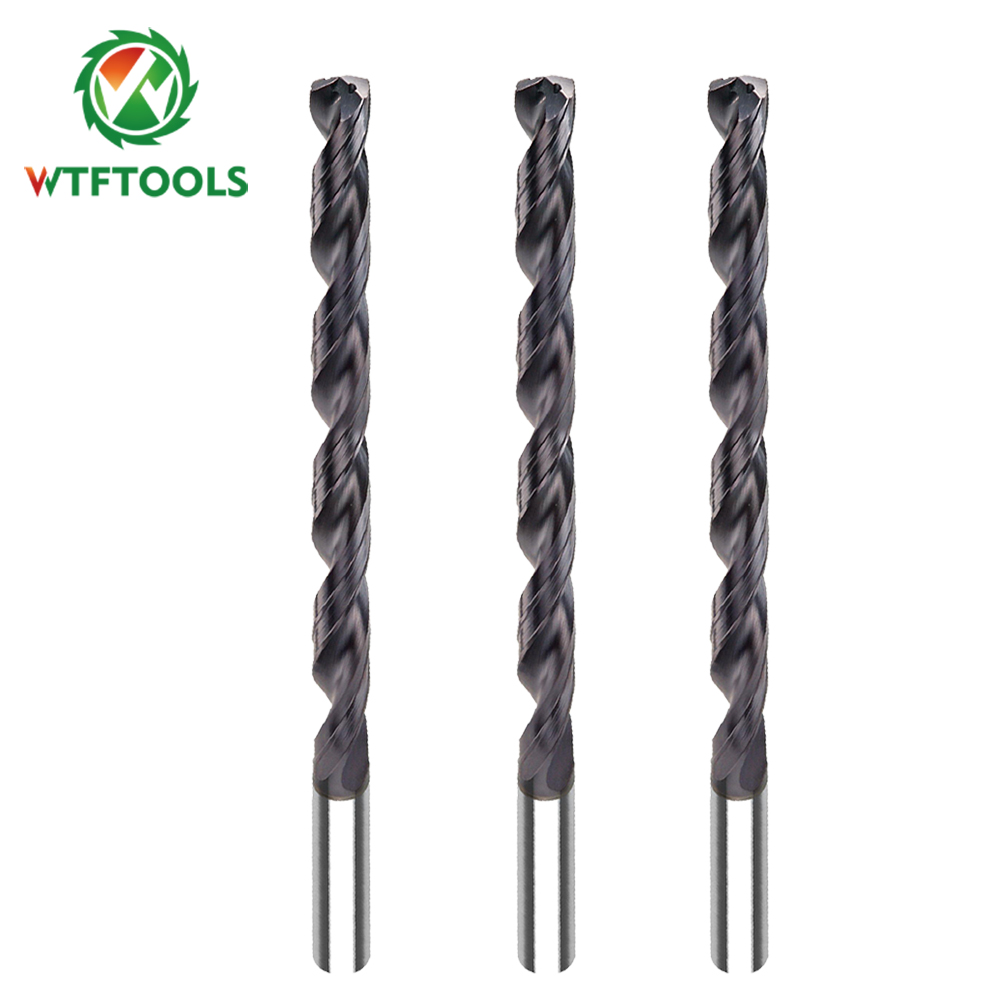

VOTFO Factory Wholesale 5D Tungsten Carbide Drill Bits without Inner Coolant

FOB Price: 8.00 - 18.00 USD/Piece
Supply Ability: 100,000 Piece(s) per Month
Shipping: Express Delivery
Payment Terms: L/C, T/T, Western Union
In Stock

Related products from verified members

  • Price:3.00-180.00 USD/Piece
    Min. Order:20 Pieces
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Jiangsu in China
Packaging Details: 1 piece/plastic box or according customer requirement

Quick Details

  • Use: Metal Drilling
  • Material: Tungsten Carbide
  • Type: Twist Drill Bit
  • Brand Name: VOTFO
  • Color: natural
  • Model Number: WTF5DA
  • Flute Diameter: 3~20.00mm
  • Flute Length: 28.00mm
  • Workpiece Material: Coper.Cast Iron.Carbon Steel.Mould Steel.Hardened Steel.Aluminum....

Specifications

VOTFO factory wholesale 5D tungsten carbide drill bits without inner coolant

Flute Diameter Thread Dimension
Metric
Shank Diameter Total Length Flute Length Limit Depth Shank Length
3.00
6.00  66 28 23 36
3.25
6.00  66 28 23 36
3.30  M4 6.00  66 28 23 36
3.40
6.00  66 28 23 36
3.50
6.00  62 20 14 36
3.70
6.00  66 28 23 36
4.00
6.00  74 36 29 36
4.20  M5 6.00  74 36 29 36
4.30
6.00  74 36 29 36
4.50
6.00  74 36 29 36
4.65
6.00  74 36 29 36
4.80
6.00  82 44 35 36
5.00  M6 6.00  82 44 35 36
5.10
6.00  82 44 35 36
5.20
6.00  82 44 35 36
5.50
6.00  82 44 35 36
5.55
6.00  82 44 35 36
5.80
6.00  82 44 35 36
6.00
6.00  82 44 35 36
6.10
8.00  91 53 43 36
6.20
8.00  91 53 43 36
6.30
8.00  91 53 43 36
6.50
8.00  91 53 43 36
6.60
8.00  91 53 43 36
6.80  M8 8.00  91 53 43 36
6.90
8.00  91 53 43 36
7.00  M8X1 8.00  91 53 43 36
7.10
8.00  91 53 43 36
7.40
8.00  91 53 43 36
7.50
8.00  91 53 43 36
7.80
8.00  91 53 43 36
8.00
8.00  91 53 43 36
8.10
10.00  103 61 49 40
8.40
10.00  103 61 49 40
8.50  M10 10.00  103 61 49 40
8.60
10.00  103 61 49 40
8.70
10.00  103 61 49 40
8.80
10.00  103 61 49 40
9.00  M10X1 10.00  103 61 49 40
9.30
10.00  103 61 49 40
9.50
10.00  103 61 49 40
9.60
10.00  103 61 49 40
9.80
10.00  103 61 49 40
10.00
10.00  103 61 49 40
10.25  M12 12.00  118 71 56 45
10.40
12.00  118 71 56 45
10.50  M12X1.5 12.00  118 71 56 45
10.60
12.00  118 71 56 45
10.80
12.00  118 71 56 45
11.00
12.00  118 71 56 45
11.20
12.00  118 71 56 45
11.50
12.00  118 71 56 45
11.80
12.00  118 71 56 45
12.00  M14 12.00  118 71 56 45
12.20
14.00  124 77 60 45
12.25
14.00  124 77 60 45
12.50  M14X1.5 14.00  124 77 60 45
12.70
14.00  124 77 60 45
12.75
14.00  124 77 60 45
12.80
14.00  124 77 60 45
13.00
14.00  124 77 60 45
13.10
14.00  124 77 60 45
13.50
14.00  124 77 60 45
13.80
14.00  124 77 60 45
14.00  M16 14.00  124 77 60 45
14.25
16.00  133 83 63 48
14.50  M16X1.5 16.00  133 83 63 48
14.75
16.00  133 83 63 48
14.80
16.00  133 83 63 48
15.00
16.00  133 83 63 48
15.10
16.00  133 83 63 48
15.50
16.00  133 83 63 48
15.80
16.00  133 83 63 48
16.00
16.00  133 83 63 48
16.50
18.00  143 93 71 48
16.75
18.00  143 93 71 48
16.80
18.00  143 93 71 48
17.00
18.00  143 93 71 48
17.50
18.00  143 93 71 48
17.80
18.00  143 93 71 48
18.00
18.00  143 93 71 48
18.50
20.00  153 101 77 50
18.80
20.00  153 101 77 50
19.00
20.00  153 101 77 50
19.50
20.00  153 101 77 50
19.80
20.00  153 101 77 50
20.00
20.00  153 101 77 50
