Demei 2740 Acrylic Coated Fiberglass Sleeving

FOB Price:	0.06 - 2.00 USD/Meter
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

Quick Details

Rated Voltage: 4000v
Application: High Voltage
Material: Fiberglass
Type: Insulation Sleeving
Brand Name: Demei

Specifications

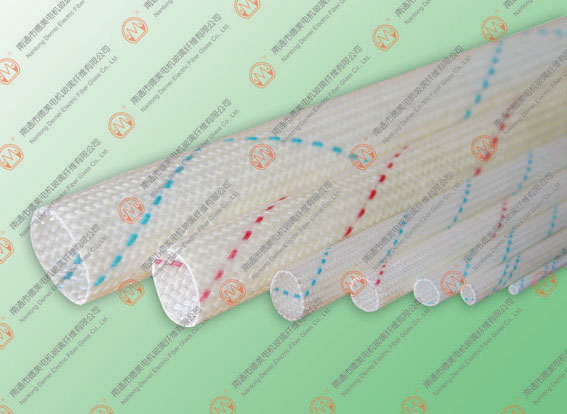

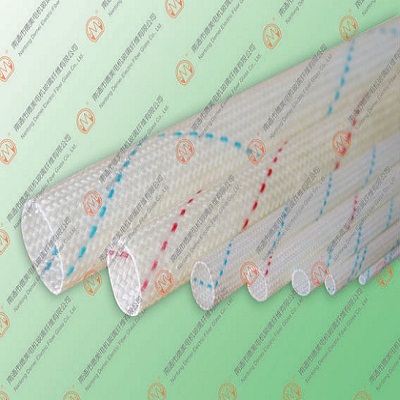

Demei 2740 Acrylic Coated Fiberglass Sleeving

Demei2740 Acrylic Sleeving is used for insulation in motors, dry and oil-filled Transformers, generators, home appliances, lighting fixtures, instrument Circuits and many other apparatus working at a temperature below 155°C.

Physical Property

Inside Diameter (mm)		Wall Thickness
Nominal	Tolerance	Min	Max
0.5, 0.8	±0.10	0.20	0.50
1.0, 1.5	±0.15	0.20	0.75
2.0, 2.5	±0.20	0.20	0.75
3.0	±0.25	0.20	0.75
3.5, 4.0, 5.0	±0.25	0.30	0.75
6.0	±0.25	0.30	1.00
7.0, 8.0	±0.50	0.30	1.00
9.0, 10.0, 12.0, 14.0, 16.0 18.0, 20.0, 23.0, 25.0, 27.0	±0.50	0.40	1.30

Electrical Property

Test Environment	Breakdown Voltage
Test Environment	2740-II	2740-III
Room Temperature	4000v	2500v
in Humidity	2000v	1200v
Wound	2500v	1500v
