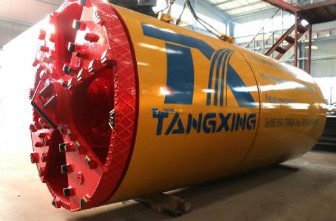

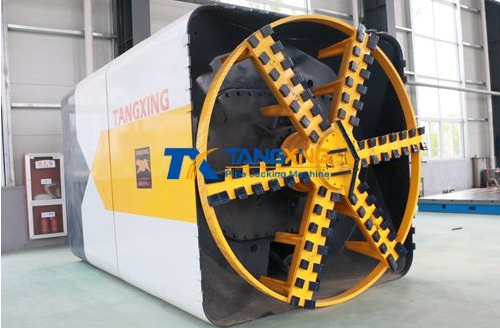

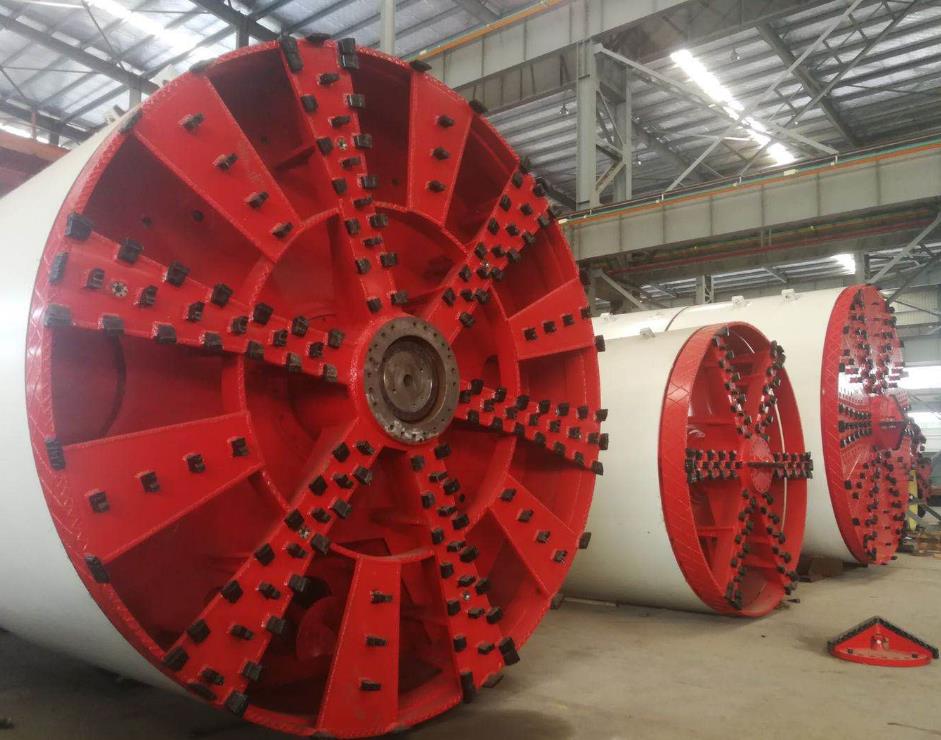

Slurry Balance& Epb&Rock Pipe Jacking Machine

FOB Price:	1.00 - 100000.00 USD/Set
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Dimension(L*W*H): 1940*4900mm
Brand Name: tangxing
Condition: New
Application: Pipe Jacking

Specifications

Features:
1,Designed for gravel and rock(up to 150 Mpa).
2,Driven by inner gear, big driving torque, no axis.
3,Direct access to the tunnel face for maintenance and repair work.
4,through cutterhead rotation,stones or obstructions entering the crusher cone are crushed to a conveyable grain size.
5,Bentonite injected into the annular gap reduces friction between the extrados of the pipe and surrounding soil.
Technical Parameters:

SPECIFICATIONS for 1600MM ROCK PIPE JACKING MACHINE
Inner Diameter	1600mm
OD*Length	1940*4900mm
Cutter	Motor Power	2*37KW
	Rated. Torque	190KN.M
	Revolution	3.7RPM
Steering System	Thrust*Qty	80T*4
	Angle	0~2.7
	Motor Power	2.2KW
Jacking Cylinder	Thrust*Qty	200T*4
	Stroke	2500/3000/3500MM
	Pressure	31.5MPA
Slurry Pipe	Diameter	4INCH
Machine Total Power		80KW
