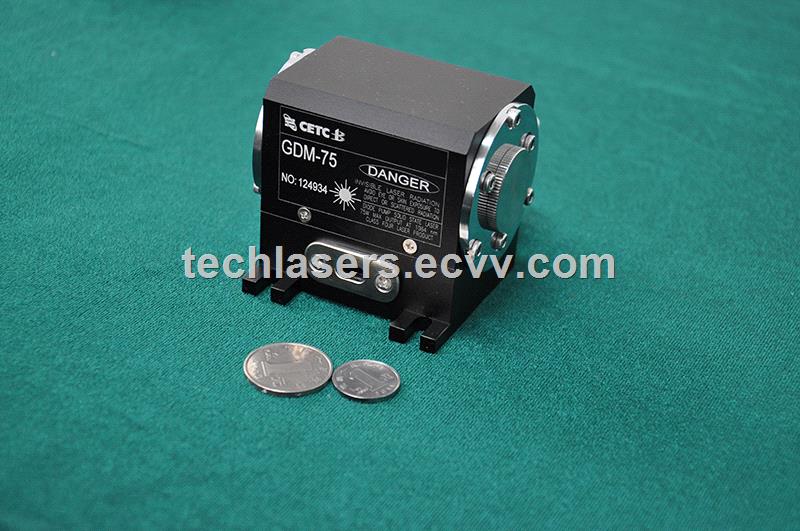

75W CW DPSS Diode Pumped Nd: YAG Laser Module

FOB Price:	1000.00 - 2500.00 USD/Piece
Supply Ability:	10,000 Piece(s) per Month
Shipping:	DHL, TNT, Fedex, EMS
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China

Quick Details

Max. Reverse Current: 40
Max. Reverse Voltage: 24
Package Type: Surface Mount
Type: Laser Diode
Brand Name: Tech lasers

Specifications

Specifications:

Parameter	Value	Unit
Central Wavelength	1064	nm
Typical Output Power	>=75	W
TypicalOperationCurrent	20	A
Max Operation Current Limit	40	A
Typical Operation Voltage	<24	V
Threshold Current	~9	A
Nd:YAG Diameter	3	mm
Nd:YAG Length	75	mm
Nd:YAG Center Height	40	mm
Nd:YAG Doping	0.6%	-

1.Minimum 1064 nm multi-mode output with 300mm cavity length with best tuning.
2.Cavity optics: Front Mirror R=80% T=20%, End Mirror R>99.7% with Radius=1000mm).
3.the Nd:YAG rod can be customized in diameter & doping.
4.Expected life time is around 10,000 hours.
5.Warranty: 13 months after delivery.
Typical Operation Conditions

Conditions	Requirements
Current limit set	40A
Environment moisture	<20%
Environment temperature	<25℃
Chiller temperature set	15-25℃
Chiller water flow rate	7~10 L/Min
Chiller pressure	0.4~0.6MPa
Minimum diameter in cooling circuit	≥6mm
Chiller accuracy	<+/-0.5 ℃
Chiller cooling capability	≥1200W
Water requirement	Purified water or distilled water
Chiller water filter	10"
Front mirror (output coupler)	R=80%, T=20% @ 1064nm
End mirror (rear mirror)	HR @1064nm, plane or concave (R=500~1000mm)
