Home  >Products Catalog > 5.8G 28dBi MIMO Grid Antenna 2xN Female

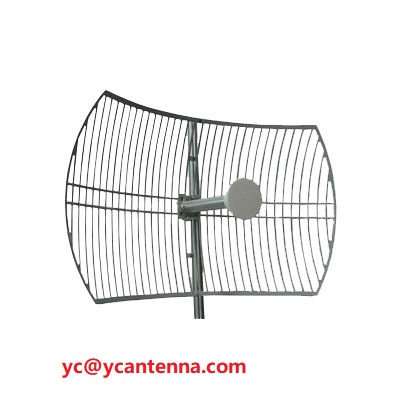

5.8G 28dBi MIMO Grid Antenna 2xN Female

FOB Price: 35.00 - 40.00 USD/Piece
Payment Terms: T/T
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

  • Brand Name: AC
  • Input connector type: 2XN Female
  • Lightning protection: Yes
  • Gain(dBi): 28dBi
  • Frequency range(MHz): 5158-5850MHz
  • Model Number: AC-D5158G28-0609X2

Specifications

58G 28dBi MIMO Grid Antenna 2xN Female


Electrical
Frequency Range  5158-5850MHz
Band width   700MHz
F/B Ratio ≥25dB
Gain  2x28dBi
V.S.W.R  ≤1.5,Max 2.0
Radiation  Direction
Horizontal Beam width
Vertical Beam width
Polarization  Vertical and Horizontal
Lightning Protection DCGrounded
Maximum Input Power  100W
Impedance 50
Connector  2xN Female
Antenna Radome Material Aluminium alloy
Mount way  Pole
Diameter of Installation Pole 50~70mm
Mechanical
Dimensions 600x900mm
Weight 2.5KG
Operating Temperature -40 to+70
Rated Wind Velocity  60m/s
RoHS Compliant YES
