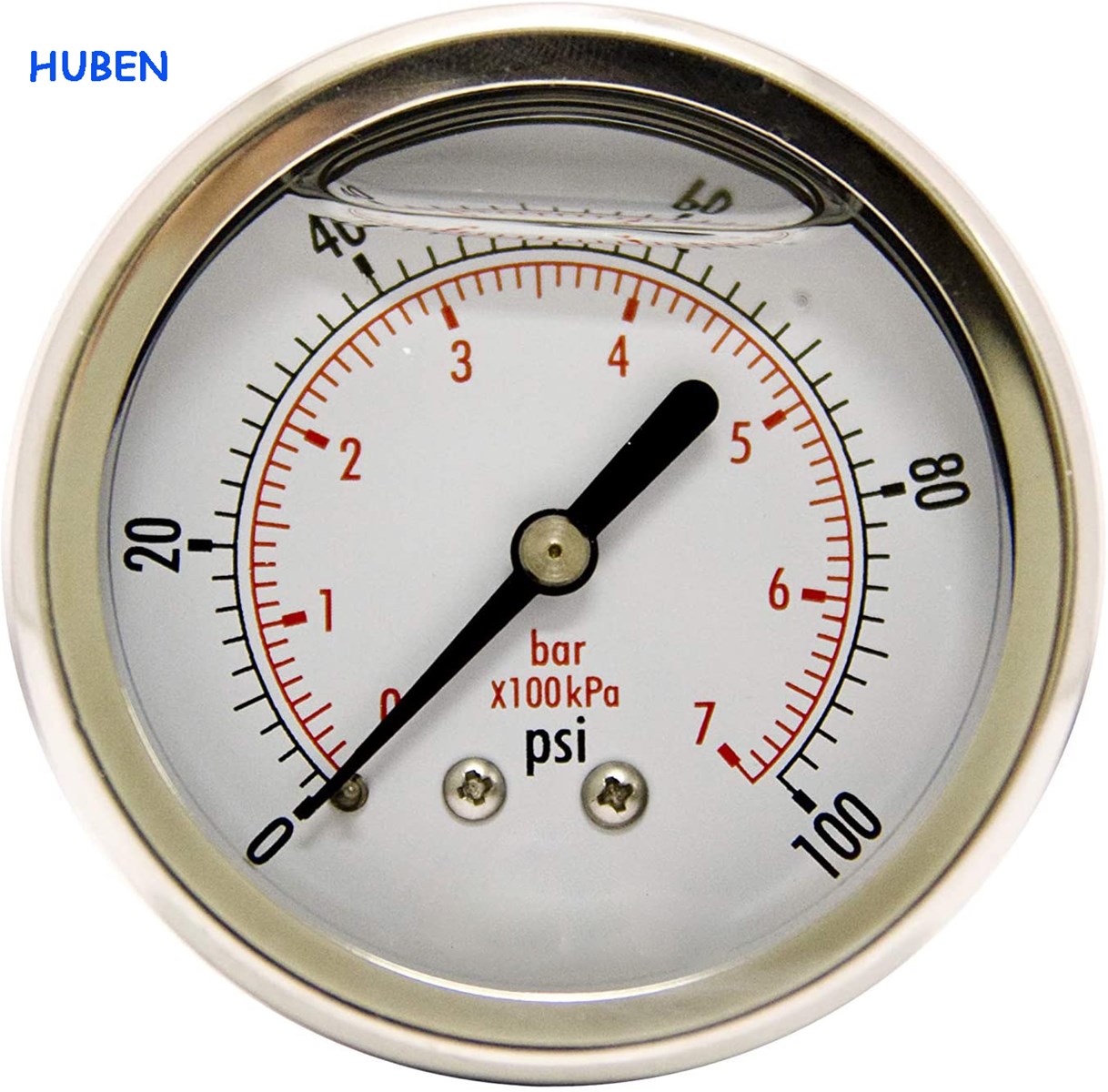

2-1/2" Liquid Filled Pressure Gauges

FOB Price:	0.90 - 5.50 USD/Piece
Supply Ability:	1,000 Piece(s) per Month
Shipping:	Ningbo or Shanghai Port
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy, Other

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	individual box / 100pcs/master carton ,pallet

Quick Details

Brand Name: HUBEN
Accuracy: 1.6%
Charging time: 2
Sensor structure: bourden tube
Peak load: 100psi
Model Number: HB-63-2
Case Material: stainless steel
connection: 1/4" NPT
Accuracy: 1.6%
Diameter: 50mm
Application: Water, Oil, Air & Hydraulic Application
Movement: Copper Alloy
Bourdon Tube: Copper Alloy
Window: Polycarbonate
Normal Ambient Temp: -4F to +140F (-20C to +60C)

Specifications

Application: Water, Oil, Air & Hydraulic Application

Dial Size:2-1/2" Dial Size (Crimped Casing)

Accuracy: +/- 3/2/3%

Scale: Dual Scale - PSI / Bar

Movement: Copper Alloy

Bourdon Tube: Copper Alloy

Window: Polycarbonate

Case: Stainless Steel case for protection in harsh environments

Connection: Copper Alloy Center Back Mount; 1/4" NPT (for 2-1/2" dial)

Normal Ambient Temp.: -4F to +140F (-20C to +60C)

Liquid Filling: Glycerin oil filled to enhance the reliability and integrity; helps dampen the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
