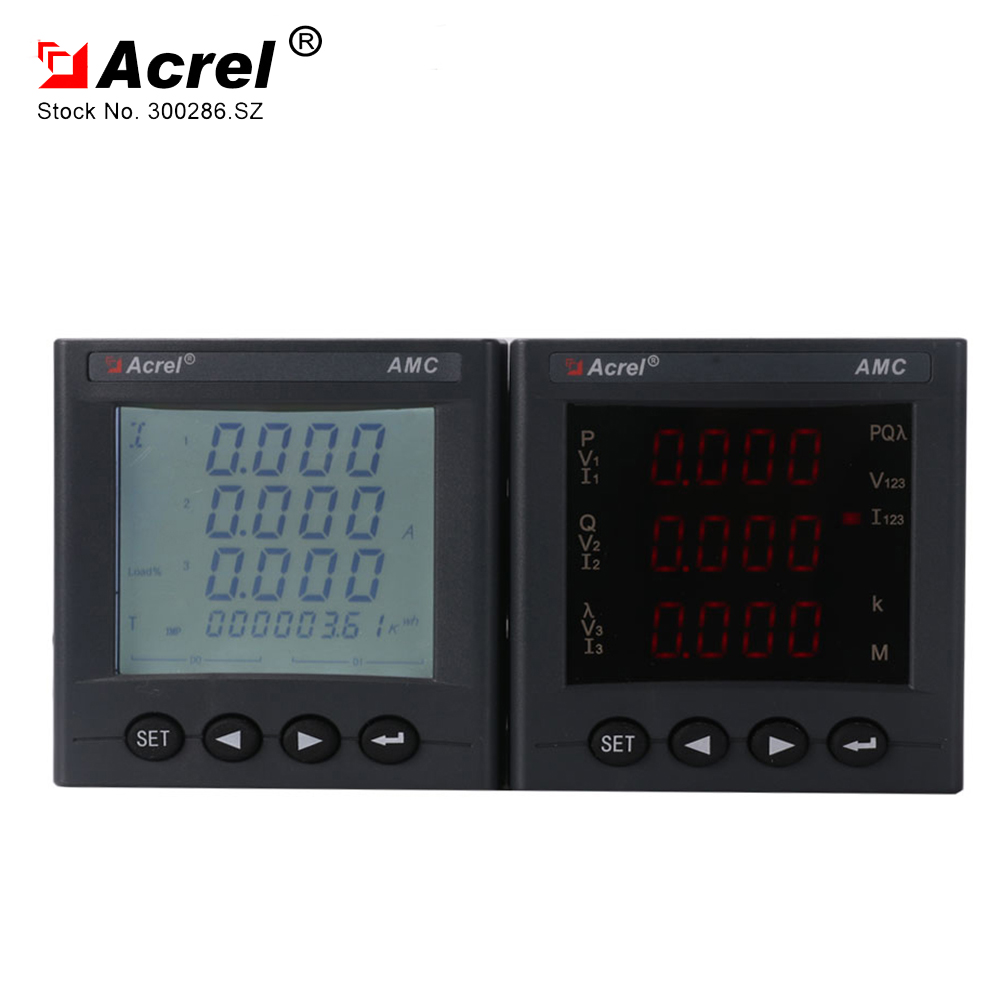

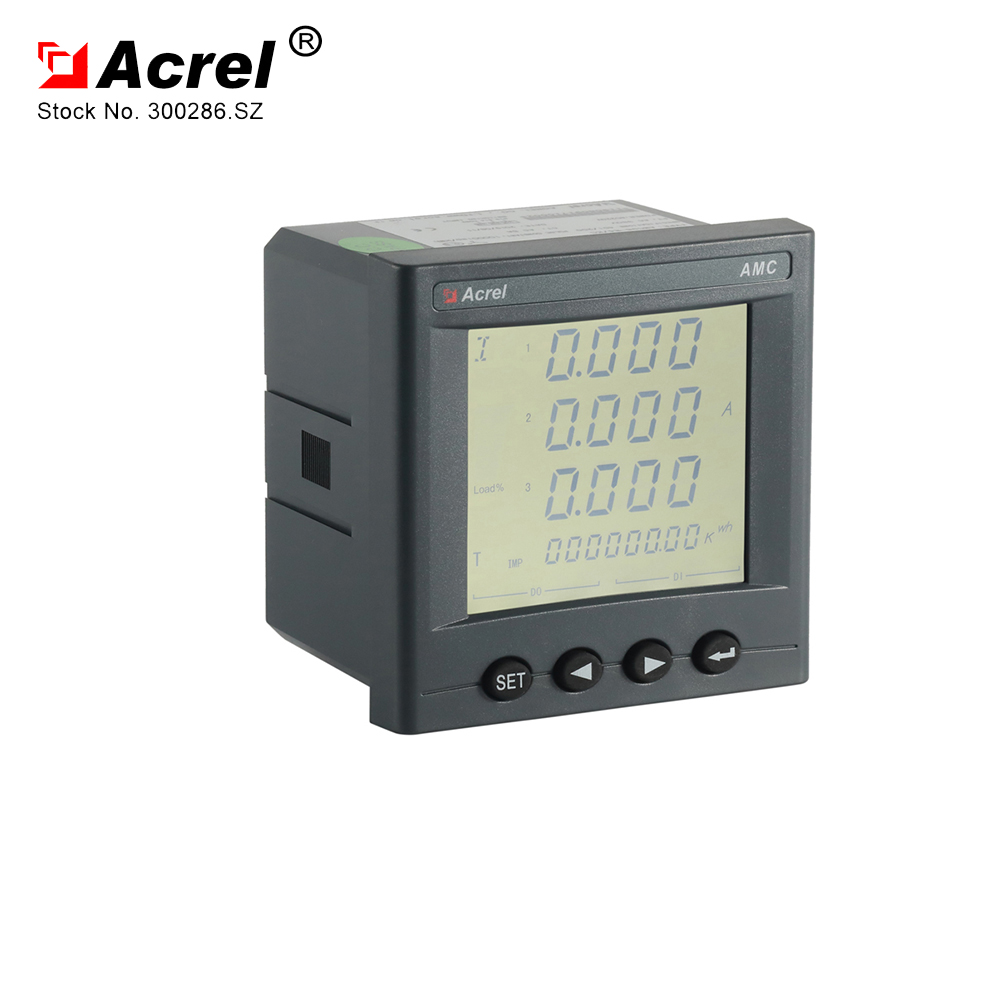

ACREL AMC72L-E4/KC 220v Power Meter Display Digital Panel Mount 3 Phase Energy Meter LCD
| FOB Price: | 53.00 - 60.00 USD/Acre |
|---|---|
| Supply Ability: | 80,000 Acre(s) per Month |
| Shipping: | arishipping |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | PAPER CARTON BAG |
Quick Details
- Dimensions: 75*75mm
- Operating Temperature: -20 +60
- Measuring Voltage Range: AC85-265V or DC100-350v
- Measuring Current Range: 0-9999A
- Brand Name: ACREL
- Accuracy Class: 0.5
- Model Number: AMC72L-E4/KC
- Type: 3-phase power meter
- Communication: RS485 Port MODBUS-RTU Protocol
- Auxiliary power: AC85-265V or DC100-350V
- Reference frequency: 50Hz
- Connection: 3 phase 4 wire
- Optional function: 2-31st harmonic
Specifications
Product Overviews
AMC series intelligent power collection and monitoring device is a smart meter designed for power monitoring needs of power systems, industrial and mining enterprises, utilities, and intelligent buildings. It integrates measurement of power parameters (such as single-phase or three-phase current, voltage, and active power). Power, reactive power, apparent power, frequency, power factor and power monitoring and assessment management.
| Instrument type | Panel size | Cut-out (mm) | Depth (mm) |
| AMC 72 | 75*75 | 67*67 | 94.3 |
| AMC 96 | 96*96 | 92*92 | 77.8 |
