Home >Products Catalog > ACREL AMC48-AI CURRENT MONITOR Single Phase Current Monitoring Panel Mounted Ammeter

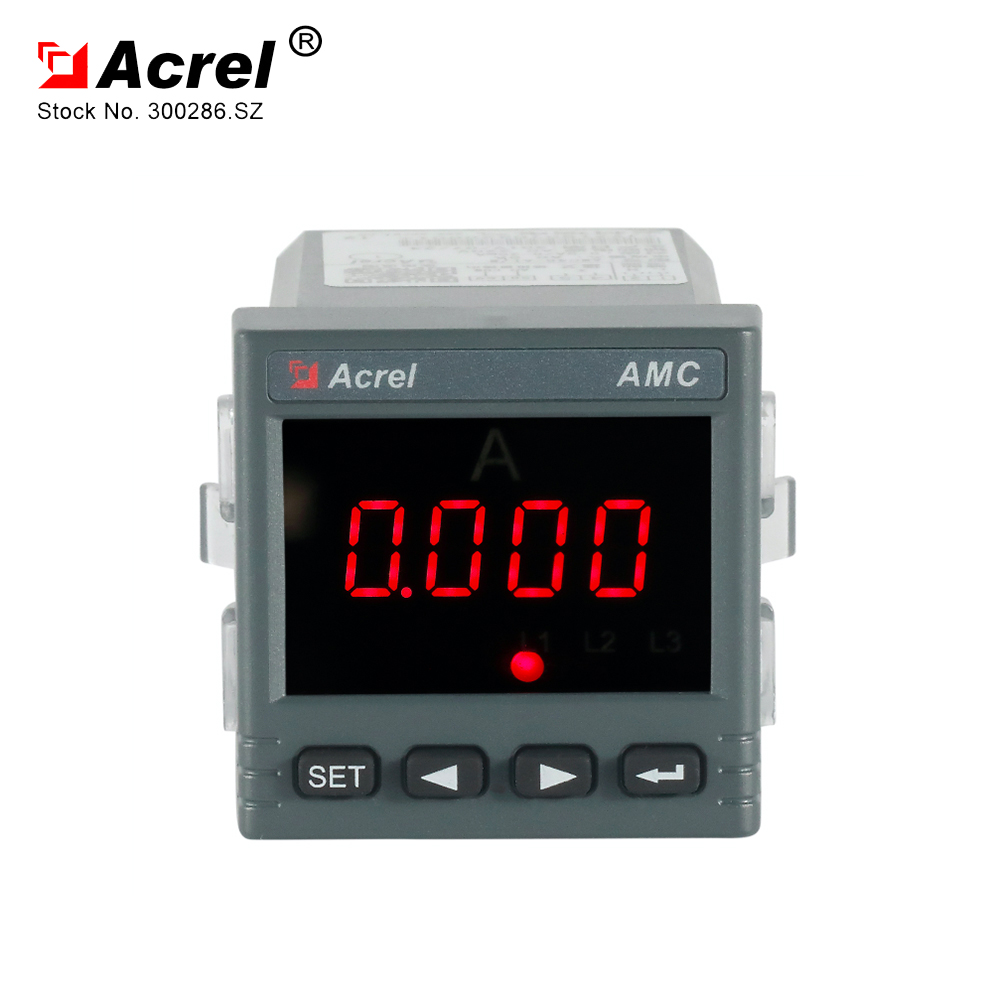

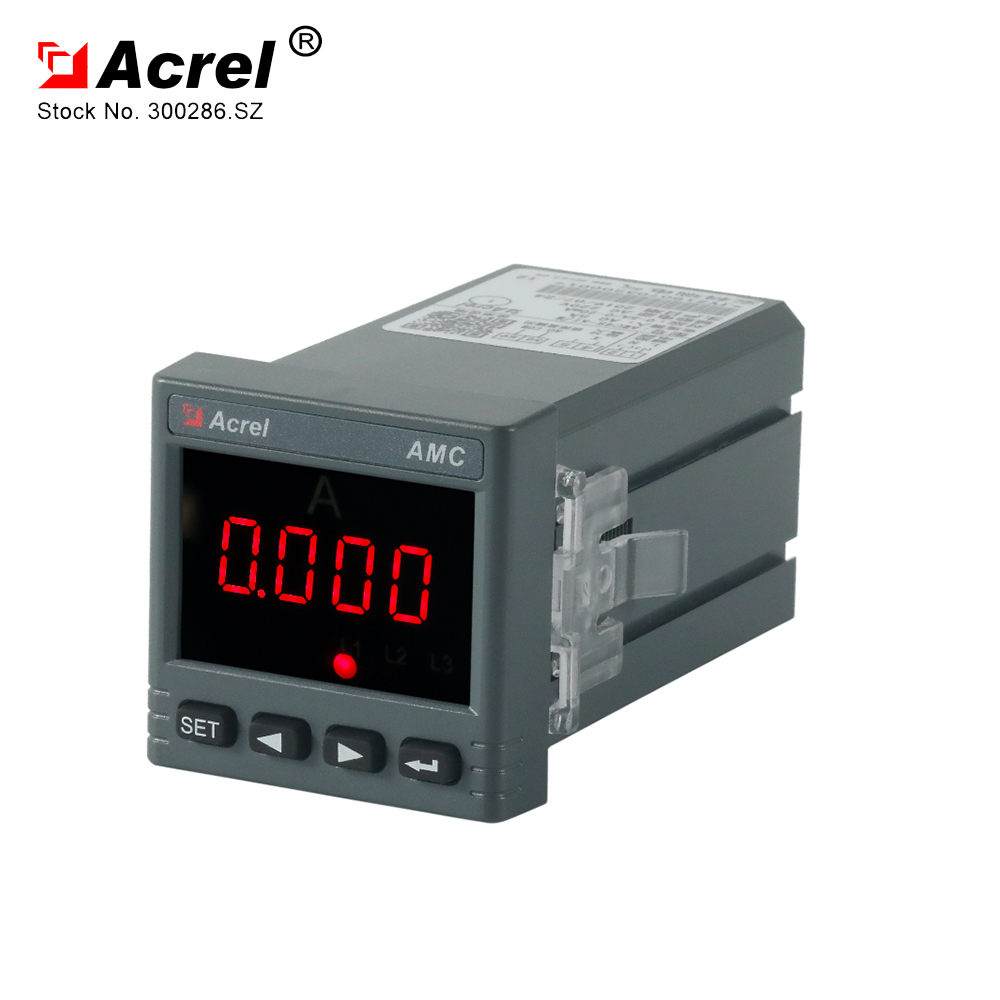

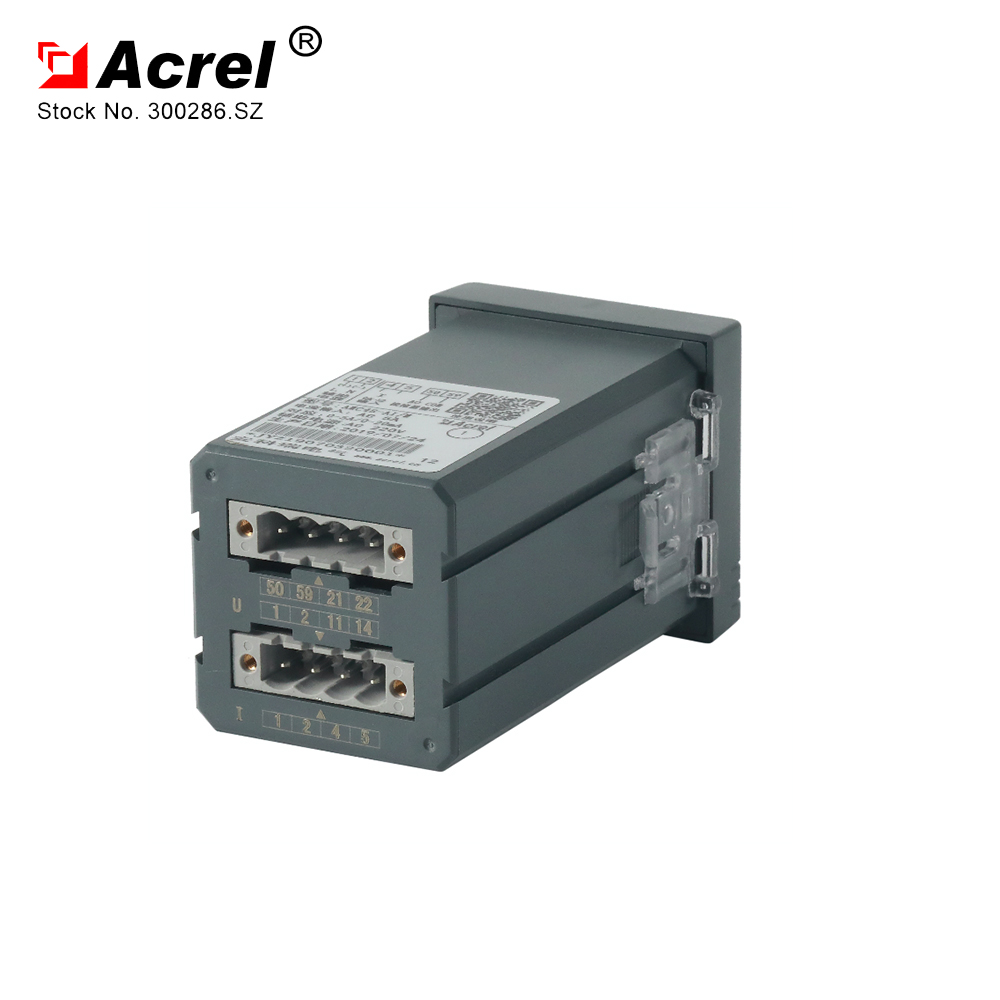

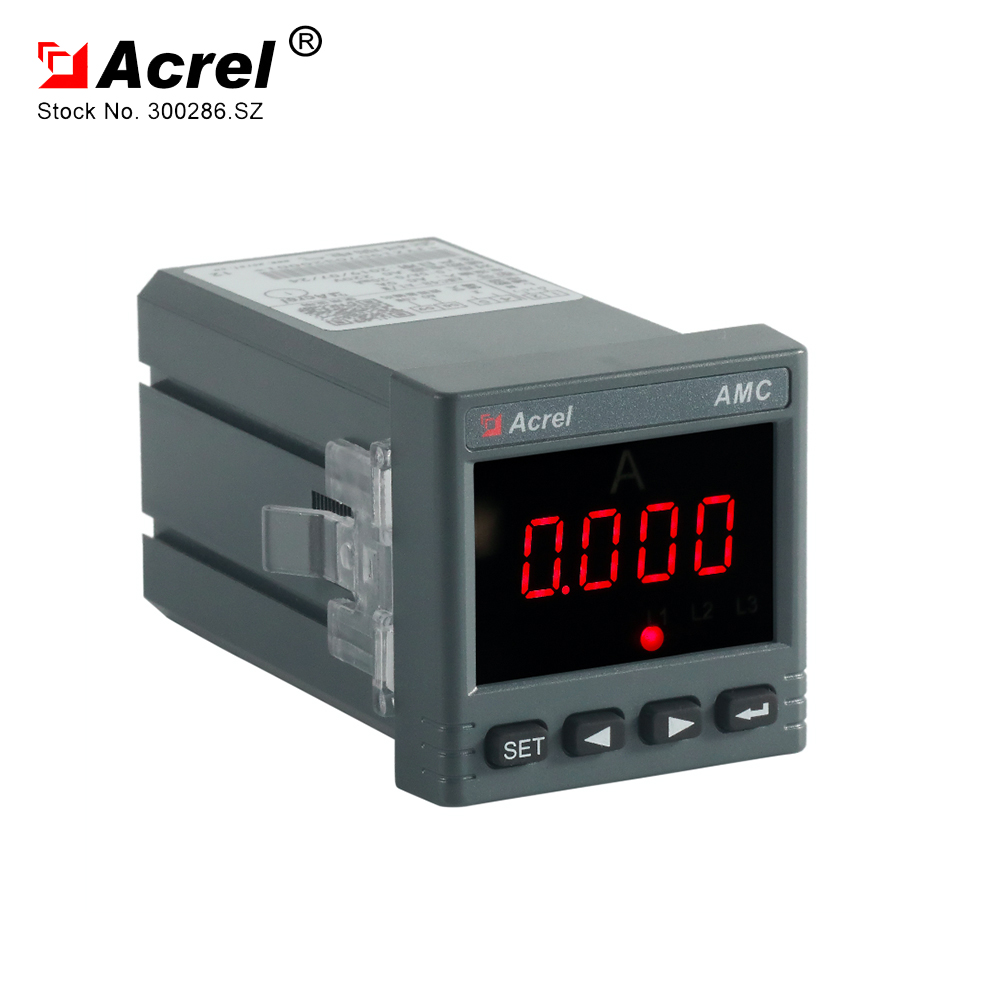

ACREL AMC48-AI CURRENT MONITOR Single Phase Current Monitoring Panel Mounted Ammeter

FOB Price:	21.00 - 22.00 USD/Acre
Supply Ability:	80,000 Acre(s) per Day
Shipping:	arishipping
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy, Other

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	paper carton bag

Quick Details

Dimensions: 48*48MM
Supply Voltage: AC80-270V, DC100-350V
Measuring Range: 0.000~999.9A/KA
Display Type: Digital Only
Brand Name: ACREL
Operating Temperature: -20 +60
Accuracy Class: class 0.5
Model Number: AMC48-AI
Installation: Panel Mounted
Frequency: 45~65HZ
Storage temperature: 20 -70

Specifications

Product Overviews

AMC series single-phase meters

Using AC sampling technology, it can directly or indirectly measure the power, power, voltage, current and frequency of a single-phase or three-phase power grid. It can be used for local display, and can be connected with industrial control equipment to form a measurement and control system.

the instrument can have RS-485 communication interface and adopt Modbus-RTU protocol, with analog output, relay alarm output and switch input/output.

According to different requirements, through the instrument panel button, set and control parameters such as ratio, alarm, communication.

Type	Function
AMC48-AI	LED display; Single Phase Ammeters, 1A or 5A input; AC/DC 85-270V
AMC48-AI/C	LED display; Single Phase Ammeters, 1A or 5A input; AC/DC 85-270V /C: RS485 Communication(Modbus-RTU)
AMC48-AI/M	LED display; Single Phase Ammeters, 1A or 5A input; AC/DC 85-270V /M: one analog output (4-20mA)
AMC72-AI	LED display; Single Phase Ammeters, 1A or 5A input; AC/DC 85-270V
AMC72-AI/C	LED display; Single Phase Ammeters, 1A or 5A input; AC/DC 85-270V /C: RS485 Communication(Modbus-RTU)
AMC72-AI/KC/JC	LED display; Single Phase Ammeters, 1A or 5A input; AC/DC 85-270V /C: RS485 Communication(Modbus-RTU) /K: 2DI2DO /J: Alarm out (over or under current)

ACREL AMC48AI CURRENT MONITOR single phase current monitoring panel mounted ammeter

FAQ

Thank you very much for your interest in Jiangsu Acrel MFG Co.,Ltd. products and visit our website, below are few questions you may ask answers.

1. Q: Where is your factory located ? how can I visit here ? Can your factory arrange transportation for me?

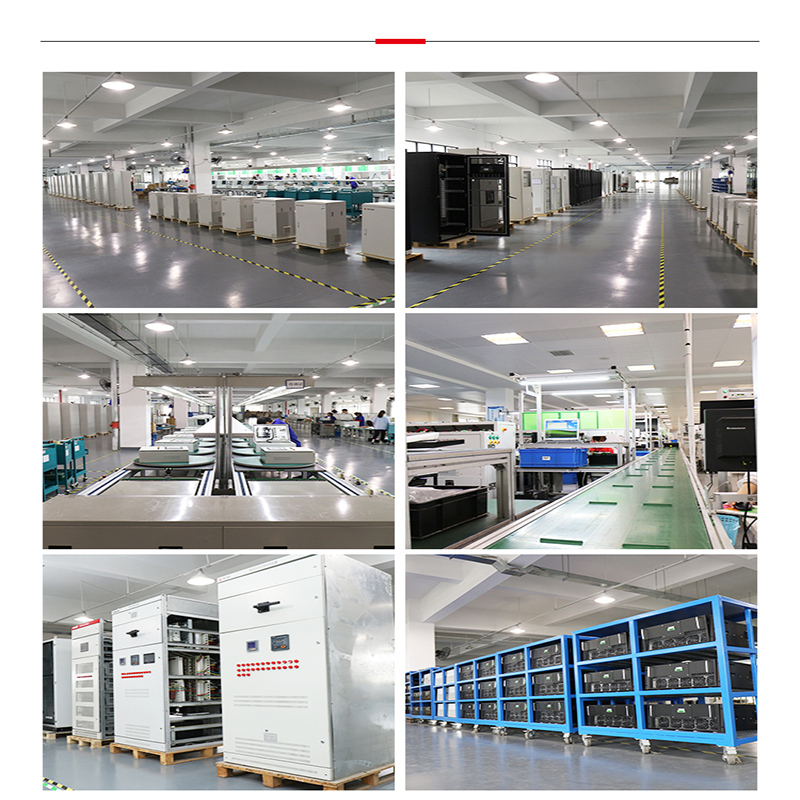

A: Our production base is located in Jiangyin City, Jiangsu Province, China;
Which will take about 2 hours by car from Shanghai to our factory. We can arrange our driver to pick you up from your hotel when you arrive Shanghai.
2. Q: Does your factory have the design and development capabilities, can you factory accept customized products?
A: the staffs in our R&D department are well experienced in the Electric industry, with more than 10 years' experience.
We can make customized products especially for you; please kindly contact us for more
3. Q: how long could I get my order?
A: Stock Products: shipping within 5 days.
B: Customized products: usually 10-15 days. It depends on your design and quantity.
4. Q: how is your production management and quality control system?
A: All our product process follows up ISO9001. the strict implementation of ISO9001 assures to provide errorfree products to our customers. We will show you these in our workshop during your visiting.
5. Q: how can I get a sample to check the quality?
A: We are glad to offer you samples for test. Leave us message of the item you want and your city address.
We will offer you detail sample packing information, and select the best way to deliver it.
