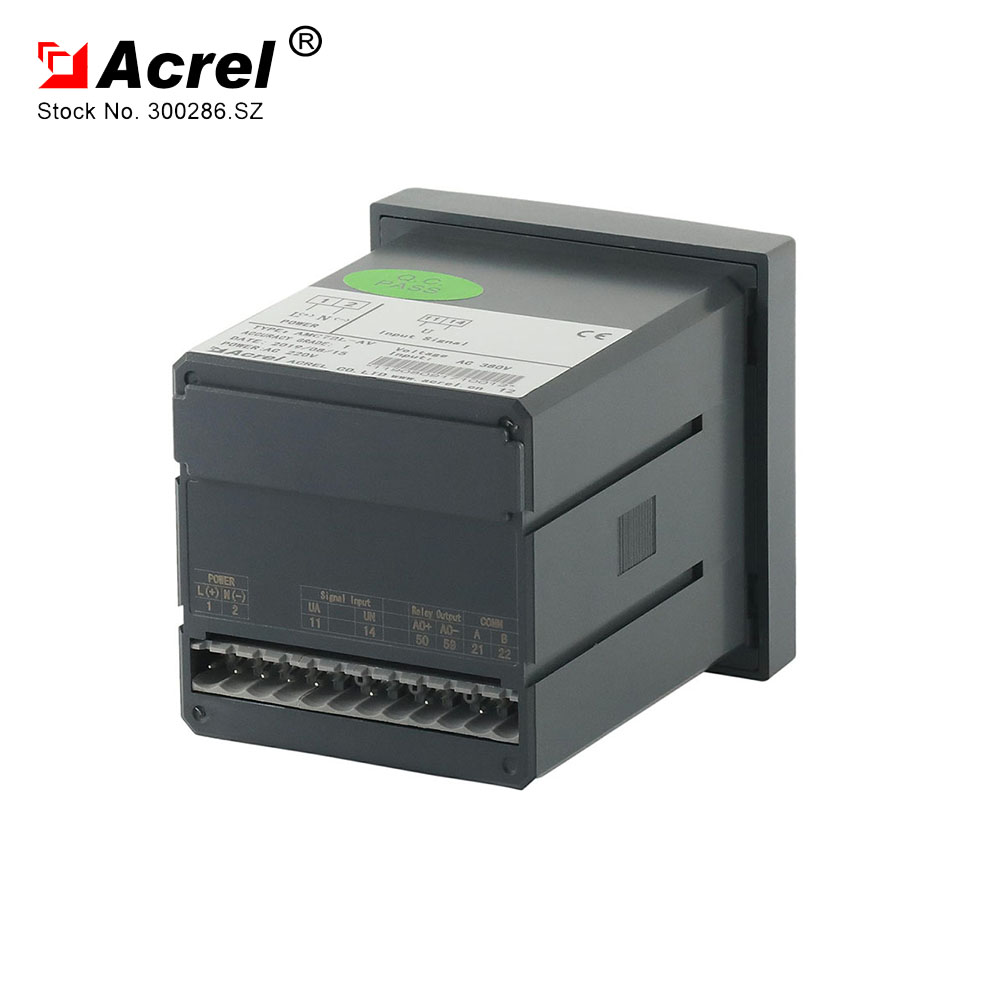

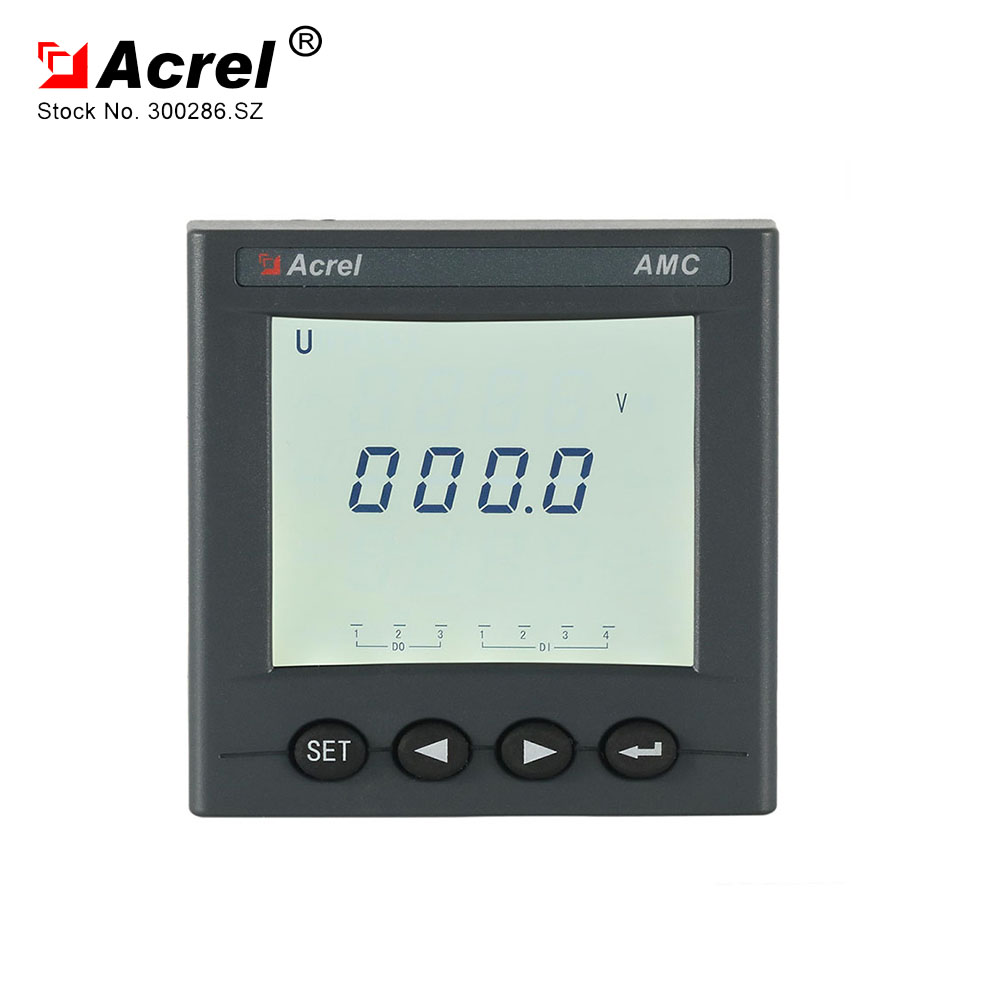

ACREL New Arrival AMC72L-AV Power Consumption Lower Than 5VA Single Phase LCD Voltmeter
| FOB Price: | 38.00 - 40.00 USD/Acre |
|---|---|
| Supply Ability: | 80,000 Acre(s) per Month |
| Shipping: | arishipping |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy, Other |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Quick Details
- Operating Temperature: -20 +60
- Accuracy Class: class 0.5
- Measuring Range: 0.000~999.9A/KA
- Display Type: Digital Only
- Brand Name: ACREL
- Dimensions: 75*75
- Model Number: AMC72L-AV
- Installation: Panel Mounted
- Frequency: 45~65HZ
- Input current: CT 1A or 5A
- Display: LCD Digital Display
Specifications
AMC Series Single/Three-Phase Meters
Using AC sampling technology, it can directly or indirectly measure the power, power, voltage, current and frequency of a single-phase or three-phase power grid. It can be used for local display, and can be connected with industrial control equipment to form a measurement and control system.
the instrument can have RS-485 communication interface and adopt Modbus-RTU protocol, with analog output, relay alarm output and switch input/output.
According to different requirements, through the instrument panel button, set and control parameters such as ratio, alarm, communication.
| Type | Function | Option |
| AMC72-AV | LED display; Single Phase voltmeter, 100/220/380V input; AC/DC 85-270V |
/C: RS485 (Modbus-RTU) /M: one analog output (4-20mA) /K: 2DI2DO /J: Alarm out |
| AMC72L-AV | LCD display; Single Phase voltmeter, 100/220/380V input; AC/DC 85-270V | |
| AMC72-AV3 | LED display; Three Phase voltmeter, 100/220/380V input; AC/DC 85-270V | |
| AMC72L-AV3 | LCD display; Three Phase voltmeter, 100/220/380V input; AC/DC 85-270V |
