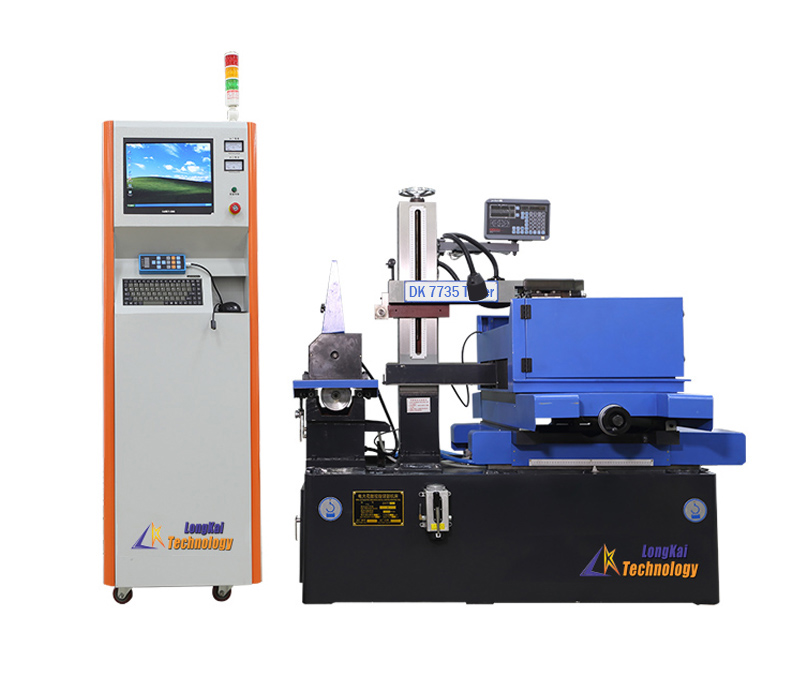

China Direct Factory High Speed Wire Cut Machine DK7735

FOB Price: 4000.00 - 5000.00 USD/Piece
Payment Terms: L/C, T/T
In Stock

Related products from verified members

Export Markets: Eastern Europe, Mid East, Eastern Asia, Western Europe
Place of Origin: Jiangsu in China
Packaging Details: Wooden package

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certification: CE
  • Weight: 1400 kg
  • Brand Name: Longkai
  • Condition: New
  • Warranty: 1 year
  • Dimension(L*W*H): 1700*1130*1800 mm
  • Power(W): 2000
  • Voltage: 380V
  • Model Number: DK7735
  • CNC or Not: CNC
  • Color: blue

Specifications

the following example is for you reference.
China direct factory high speed wire cut machine DK7735

1.Brief Introduction:

Usage: the W E D M consists of main machine, electrical control system, software
and cooling filter system. the equipment is used for the discharge machining
of various complex dies and parts, for the machining of various non-ferrous
Metals, tool steels, alloy steels and other materials. The main machine of the
Equipment shall have high geometric accuracy and position accuracy, and enough
Static, dynamic, thermal stiffness and accuracy. The equipment has the
Functions of taper cutting, variable taper and special meshing cutting;






2. Technical parameters:



1
Model
D K 7735
2
Electrical cabinet form
Vertical cabinet (full step type)
3
Guide
Steel rail
4
Lead screw form
Ball screw
5
X Y U V motion motor form
Reactive stepping motor
6
Working mode of wire conveying Frequency
Converter
Speed 2
Motor
Regulation 1~12 m/s
7
Machine tool protection
Environmental protection cover
8
Resolution of motion axis
0.001 mm
9
Table size
720 X 500
10
X, y axial stroke
350 X 450 mm



3.WOrking conditions of the machine

Working

Environment
Temperature
540℃
Relative humidity
≤85%
Working
Temperature
of cooling water
≤30℃
Power Supply
380 V±5%; 50 Hz±1 Hz; Three phase alternating current
