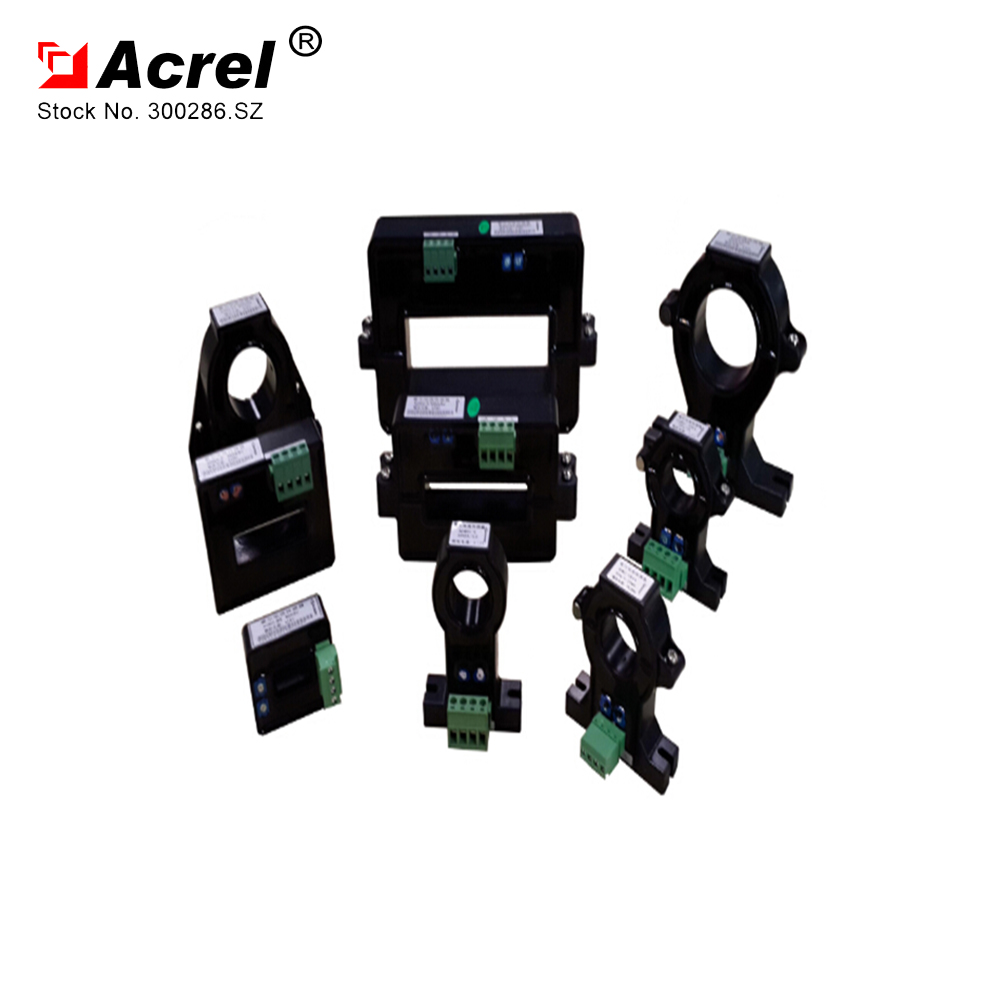

ACREL Hall Effect Sensor AHKC-EKAA Open-Loop Open Ring Current Hall Sensor

FOB Price:	10.50 - 11.00 USD/Acre
Supply Ability:	80,000 Acre(s) per Week
Shipping:	air shipping
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy, Other

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Home Burglar Alarm-Frequency Convert Beam Senso...

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	It is packed in a crash bag and then put into a cardboard box.

Quick Details

Output: Analog Sensor
Theory: Current Sensor
Usage: Magnetic Sensor
Brand Name: ACREL
material: copper
Model Number: AKHKC-EKAA
Rated current: DC 0- (50-500)A
Rated voltage output: 4-20mA
Measuring aperture: 20mm
Power supply: 12/24V
Altitude: lower than 3500m
Product name: hall-effect current sensor

Specifications

Hall sensor

1.General

Hall current sensors are mainly used to isolate and convert AC,DC,pulse and other complex signals.after signals are convertedaccording to the Hall Effect Theory,the can be directly acquired by AD,DSP,PLC, secondary instruments and other devices.Hall current sensors are widel applicable for acquisition and feedback control of current signals in the current monitoring,battery application,inverter,solar power management,direct current cabinet,DC motor drive,electroplating,welding,frequency converter,UPS servo control systems.They feature the quick response,wide range of measurement,high precision,strong overload capcity,good linearity and excellent and anti-interference performace.

Model	Rated current	Power supply	Rated output	Measuring Aperture(mm)
AHKC-EKA	0~(20-500)A	±15v	5v	φ20
AHKC-EKAA	DC 0~(50-500)A	12V/24V	4~20mA	φ20
AHKC-EKB	0~(200-1000)A	±15v	5v	φ40
AHKC-EKBA	DC 0~(200-1000)A	12V/24V	4~20mA	φ40
AHKC-K	0~(400-2000)A	±15v	5v	64x16
AHKC-KAA	DC 0~(400-2000)A	12V/24V	4~20mA	64x16
AHKC-H	0~(500-3000)A	±15v	5v	82x32
AHKC-KA	0~(500-5000)A	±15v	5v	104x36
AHKC-HB	0~(2000-20000)A	±15v	5v	132x52
AHKC-HBAA	DC 0~(2000-20000)A	12V/24V	4~20mA	132x52
