Home  >Products Catalog > Thermal & Optical Bi-Spectrum 1080P Camera with Temperature Measurement

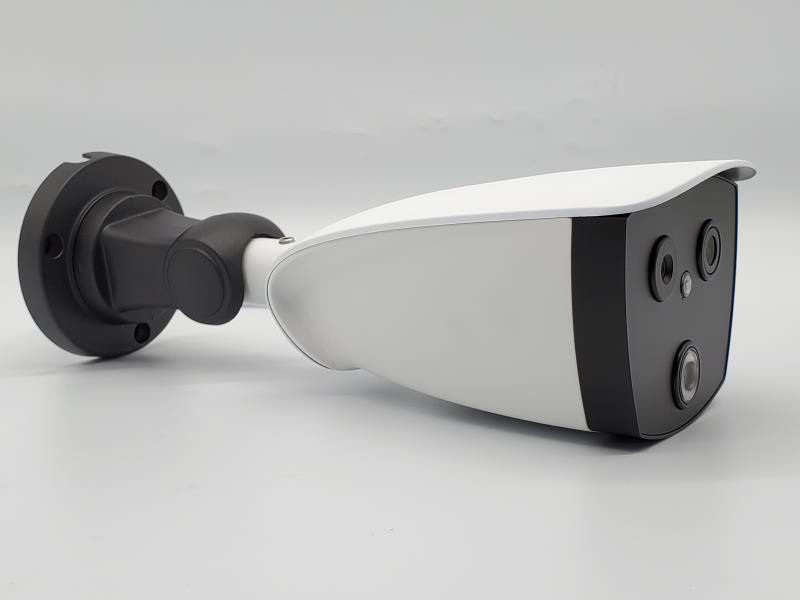

Thermal & Optical Bi-Spectrum 1080P Camera with Temperature Measurement

FOB Price: 1000.00 - 5000.00 USD/Piece
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

  • Special Features: Vandal-proof
  • Technology: NetWork
  • Sensor: CCD
  • Type: Digital Camera
  • Brand Name: HHVISION
  • Model Number: HH-8828

Specifications

Specification

Thermal

Image Sensor

VOx Uncooled Focal Plane Arrays

Resolution

256192

Pixel Interval

12μm

NETD

Less than 60 mK (@25°C,F#=1.1)

Aperture

F1.0

Field of View

35° 27° (H V)

Optical

Image Sensor

1/2.8" 2.0M Pixel CMOS

Resolution

19201080P


Min. Illumination

Color: 0.005Lux @ (F1.2, AGC on), B/W: 0.001 Lux @ (F1.2, AGC on)

Field of View

84° 45° (H V)

Focal Length

4mm

Shutter Speed

1s to 1/100,000s

White Balance

Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp

Day & Night

ModeIR cut filter with auto switch

WDR

80 dB

Feature

Bi-spectrum Image Fusion

Fusion view of thermal view and overlaid details of the optical channel

Picture in Picture

Combines details of thermal and optical image PIP, overlay thermal image on optical image

Smart Function

Face snapping

Built-in deep learning AI algorithm, Supports simultaneous detection of 20-30 faces

Temperature Measurement

Support global and local temperature

Temperature Range

from -15°C to +150°C

Temperature Accuracy

Target temperature 35°C ^ 38°C±0.3 °C

Target temperature 20°C ^ 33°C ±0.6 °C Target temperature 38°C ^ 50°C ±0.6 °C

Network

Main Stream

Thermal: 25fps(1920 1080, 1280 720)

Sub Stream

Thermal: 25fps(704 576, 352 288)

Video Compression

H.264 (Baseline/Main/High Profile) /MJPEG/H.265

Audio Compression

G.711u/G.711a/G.722.1/MP2L2/G.726/PCM

Protocols

TCP/IP, ONVIF, GB/T 28181, DHCP, RTP, RTSP, PPPoE, UPnP, UDP

API

ONVIF (Profile S, Profile G, Profile T), SDK

General

Web Client Language

Languages English, Chinese

Power

DC 12V, 0.65A

Work Temperature/Humidity

from -20°C to 55°C; Humidity: 95% or Less

Protection Level

IP67

Dimension

246 mm 101 mm 81 mm (with bracket)


Thermal Optical Bispectrum 1080P Camera with temperature measurement
