Mini AC Motor Driver 1.5kw 2hp Variable Frequency Inverter VFD with Wholesale Price

Supply Ability: 3,000 Set(s) per Day
Shipping: 7-10 days on receiving the payment , EXW , Shenzhen port
Payment Terms: T/T, Western Union, MoneyGram
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: We have good cartons and wood boxes , which are packed in cartons below 75KW and wooden boxes about 93kw . Thickened shockproof foam for packaging ,

Quick Details

  • Type: DC/AC Inverters
  • Output Voltage: 0~240V 3 phase
  • Input Voltage: 110V~300V single phase
  • Output Type: Triple
  • Brand Name: M-driver
  • Output Current: 7A
  • Output Frequency: 0~500Hz
  • Weight: 0.8kg
  • Size: 142*85.5*113mm
  • Model Number: S0015G1
  • Color: Black
  • Control Mode: SLVC, V/F
  • Overload Capacity: 150%- 60s,180%- 3s
  • Application: Motor power less than 1.5KW
  • Ingress Protection: IP20
  • Warranty: 18 months
  • OEM: Accepted
  • Leading time: 7 days
  • Batteries Included ?: No
  • Batteries required ?: No

Specifications

Mini AC motor driver 1.5kw 2hp variable frequency inverter VFD with wholesale price

Frequency converter Freqency inverter AC driver



 Mini AC motor driver 15kw 2hp variable frequency inverter VFD with wholesale price


Specifics

_______________________________________

Model
S0004G1-6
Power range
3 phase AC 380V (-15%~+30%) 0.75~500KW
Output Frequency Range
0~600Hz
Control Mode
V/F Control, Sensorless Vector Control, Torque Control
Starting Torque
0.5Hz/150%(SVC), 1Hz/150%(V/F);
Communication port
RS-485, which support MODBUS protocol
Vibration
Less than 5.9m/s
Fault Protection
Protect from over current, over voltage, under voltage, over temperature, phase failure, over load etc.







Item Specifications
Basic function over load capability G type:150% rated current 60s;180% rated current 3s
P type:120% rated current 60s;150% rated current 3s
Torque boost Auto torque boost function; Manual torque boost 0.1%~30.0%
V/F curve Linear V/F, multi-point V/F and square V/F curve(power of 1.2,1.4,1.6,1.8,2)
V/F separation 2 ways: separation and semi-separation
Acc./dec curve Straight line or S curve acceleration and deceleration mode,
Four kinds of acceleration and deceleration time. Acceleration and deceleration time range from 0.0s to 6500.0s
DC braking DC braking frequency:0.00Hz to maximum frequency. Braking time:0.0s to 36.0s
Brake current value:0%-100%
Jog control Jog frequency range:0.00Hz~50.00Hz;
Jog acceleration/deceleration:0.0s~6500.0s.
Simple PLC   It can realize at maximum of 16 segments speed
Basic function  Multiple segment speed running Running via the built-in PLC or control terminal.
Built-in PID It is easy to realize process-controlled closed loop control system.
Auto voltage regulation (AVR) It can keep constant output voltage automatically in the case of change of network voltage.
over-voltage/current stall control It can limit the running voltage/current automatically and prevent frequent over-voltage/current tripping during the running process.
Quick current limit Minimize the over-current fault, protect normal operation of the AC Drive.
Torque limit & control "Excavators" characteristics, automatically limit torque during operation, prevent frequent over-current tripping. Closed loop vector mode can realize the torque control.
Personalized function Instantaneous stop non-stop When instantaneous power off, voltage reduction is compensated through load feedback energy, which could make AC Drive keep running in a short period of time.
Rapid current limit to avoid AC Drive frequent over-current fault.
Timing control Timing control function:set time range 0Min~6500.0Min.
Running Command source Operation panel reference, control terminal reference and serial communication port reference. these channels can be switched in various modes.
Frequency source There are totally eleven types of frequency sources, such as digital reference, analog voltage reference, analog current reference, pulse reference, MS speed, PLC, PID and serial port reference.
Input terminal 5 digital input terminals.
2 analog input terminals.
1 supporting 0-10V voltage input or 0~20mA current input terminal.
Output terminal 2 digital output terminals.
2 relay output terminals.
2 analog output terminals, supporting 0~10V voltage output or 0~20mA current output.
Keyboard operation Keyboard potentiometer Equipped with keyboard potentiometer or coding potentiometer.
Keyboard operation Protection function It can implement power-on motor short-circuit detection, input /output phase loss protection, over current protection, over voltage protection, under voltage protection, overheating protection and overload protection.
Environment Using place Indoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
Altitude below 1000m
Ambient temperature -10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃)
Humidity Less than 95%RH,without condensing
Vibration Less than 5.9m/s  (0.6g)

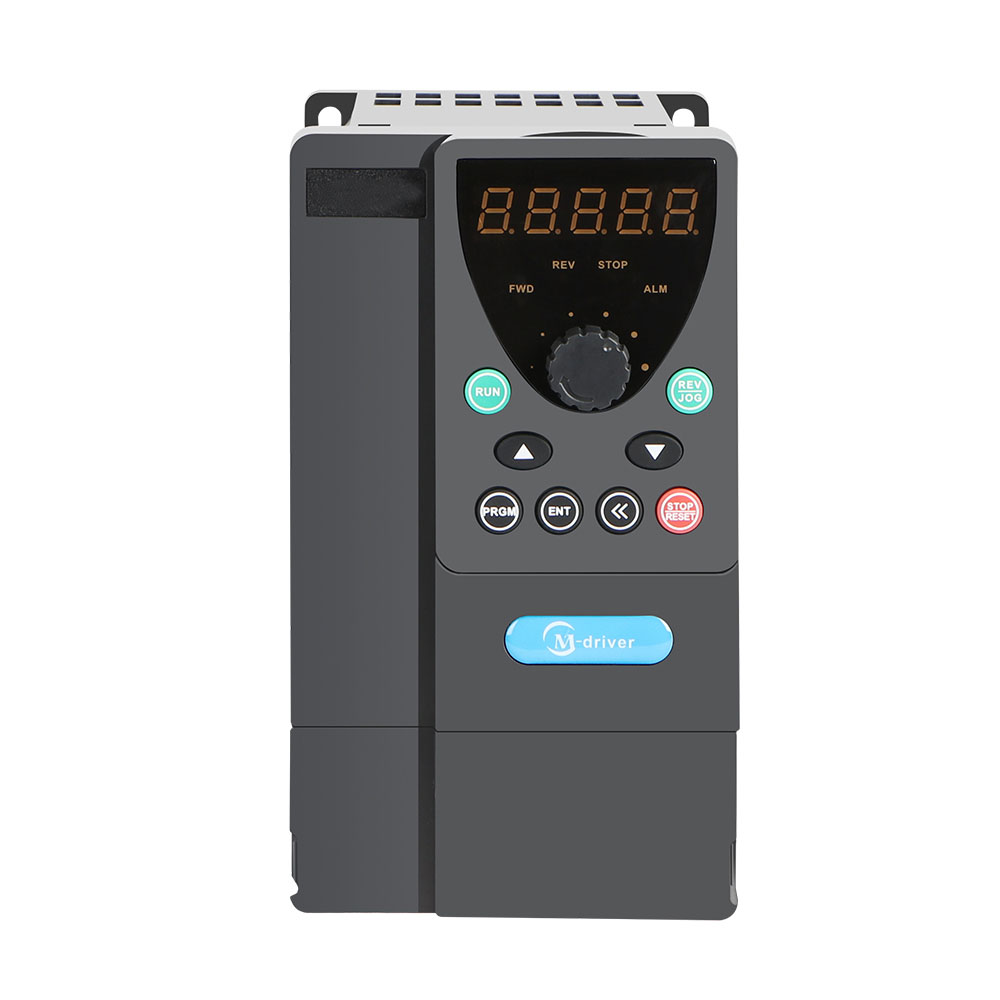

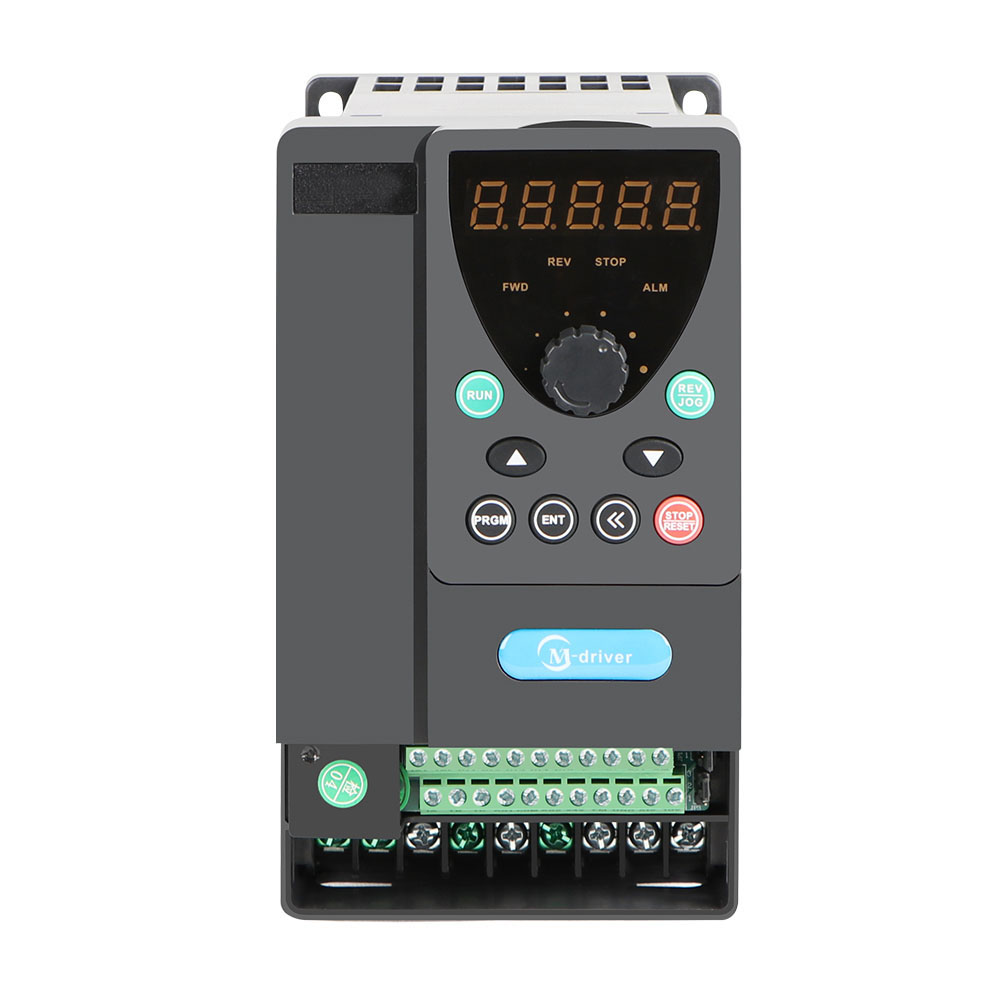

Product details

_______________________________________

 Mini AC motor driver 15kw 2hp variable frequency inverter VFD with wholesale priceMini AC motor driver 15kw 2hp variable frequency inverter VFD with wholesale priceMini AC motor driver 15kw 2hp variable frequency inverter VFD with wholesale priceMini AC motor driver 15kw 2hp variable frequency inverter VFD with wholesale price








Connection diagram

_______________________________________

 Mini AC motor driver 15kw 2hp variable frequency inverter VFD with wholesale priceMini AC motor driver 15kw 2hp variable frequency inverter VFD with wholesale price




 Mini AC motor driver 15kw 2hp variable frequency inverter VFD with wholesale priceMini AC motor driver 15kw 2hp variable frequency inverter VFD with wholesale priceMini AC motor driver 15kw 2hp variable frequency inverter VFD with wholesale priceMini AC motor driver 15kw 2hp variable frequency inverter VFD with wholesale price








FQA:

Q 1: Are you trading company or manufacturer?

We are factory.


Q 2: how long is your lead time?

Generally 3-7 days if the goods are in stock, or 10-20 days if the stocks are not enough, it is according to quantity.


Q 3: Do you provide samples? Is it free or extra?
Yes, we provide samples and charge for the samples with freight cost. the sample fees will be returned if the order quantity over 500pcs.


Q 4: What is your terms of payment?
We accept T/T(30% deposit, 70% balance), L/C and CASH.


Q 5: What is the standard of package?

Single small carton or plywood crate.


Q 6. Is there any discount?

the discount will depend on the quanlity you purchase.


Q 7. What is your supply capacity?

the daily production is 500pcs.


Q 8. Do you provide warranty for the goods?

Yes, we provide 18 months warranty for all the goods.


Q 9. Could M-driver provide technical support?

Yes, we worked 19 years in this field and have a lot of experienced engineers, they will provide solutions if get a problem.
