Aluminum Casting Machine Riser Tube, Stalk Silicon Nitride Ceramic Component, Low Pressure Die Casting Stalk

FOB Price:	1000.00 - 3000.00 USD/Piece
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China

Quick Details

Dimensions: dia.50-200mm
Material: Aluminum
Application: aluminum foundry or low pressure die casting
Brand Name: SGJL
Type: SG-RT01
Material: Silicon nitride
Process: Extrusion forming-Sintering
Mechanical strength: high
adhere aluminum liquid: No
Density: high
service life: longer

Specifications

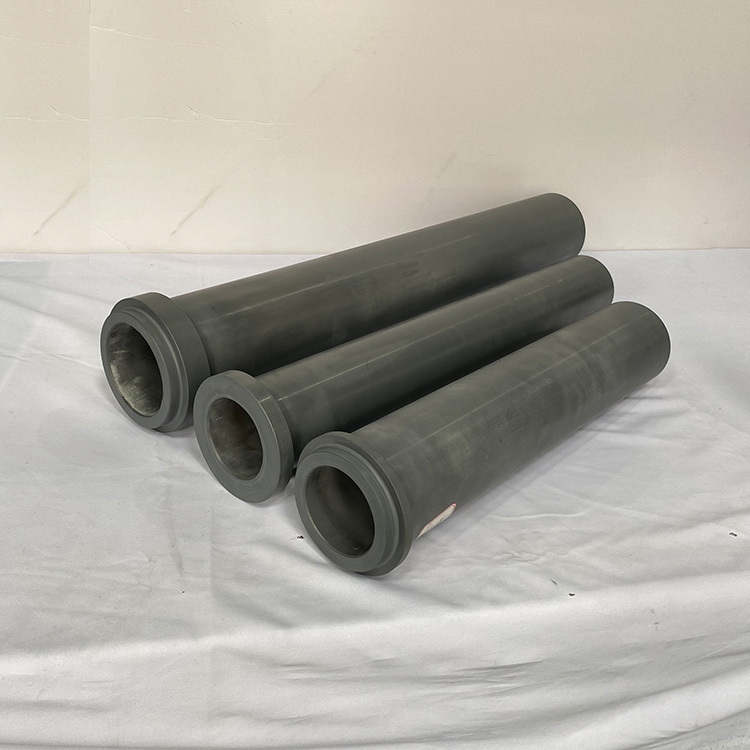

RIser Tube, Stalk for low pressure Die-casting.

Comparing with cast iron materials, our silicon nitride ceramic riser tube for low pressure die casting has low heat conduction, its super heat preservation can prevent the temperature reducing of aluminum solution in low pressure casting. We keep high mechanical strength when temperature rises. It will reduce the risk of air leakage and damage if load and strength are weak.It is not easy to adhere aluminum, so it makes daily maintenance more convenient.

Stalk is the pipe fitting which transports aluminum liquid to the die cavity in the process of aluminum alloy die-casting.

Si3N4 Silicon Nitride has better thermal shock resistance and high temperature mechanical strength, and the strength will not alter at the 800 degree or other molten metal. If preheated at the time of use, It will get the best effect,

Low wettability of molten aluminum can reduce the adsorbates and slag on the tube, making it easier to do the daily maintenance.It has low heat conduction and superior heat preservation performance,

Due to its excellent corrosion resistance and low wettabillity, the tube can stand repeat washing of molten aluminum or other molten metal.

with good high temperature mechanical strength, corrosion resistance and how wettability. the Si3N4 material can protect the normal working of heater element in the tube for a long time.

aluminum casting machine riser tubestalk Silicon nitride ceramic componentlow pressure die casting stalk

We provide high-performance silicon nitride ceramic products and professional solution for customers in aluminum foundry & casting.
