Stainless Steel Ytype Pneumatic Angle Seat Valve Burkert High Temperature Steam Angle Valve

FOB Price:	16.50 - 300.00 USD/Piece
Supply Ability:	10,000 Piece(s) per Month
Shipping:	by sea
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Si3N4 Ceramic Balls Used in Joints & Slides...

Price:0.65 USD/Piece

Min. Order:1000 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Foam + small carton box to protect goods+plywood

Quick Details

Material: stainless steel
Brand Name: kinko
Pressure: 0-1.6Mpa
Port Size: DN10-100
Temperature of Media: -20degree C~+180degree C
body: stainless steel
medium: water, neutral gas, oil
medium temperature: -20degreeC~+180degreeC
working temperature: -20degreeC~+80degreeC
cylinder type: pneumatic
cylinder material: plastic/stainless steel
air pressure: 4-8bar
working pressure: PN16
fluid direction: unidirection
connection: thread/flange/welding/clamp

Specifications

Our difference with others
1) All bolts & Nuts are SS304
2) All Piston are hard anodizing
3) Packing:Foam + small carton box to protect goods
4) Laser fonts on body

Our pneumatic valves are applicable for:
1.Beer beverage filling equipment 2.Pharmaceutical and medical equipment
3.Water and Sewage treatment equipment 4.Gas industry
5.Printing and dyeing textile,foam machinery.
6.Chemical industry. 7.Petroleum industry.

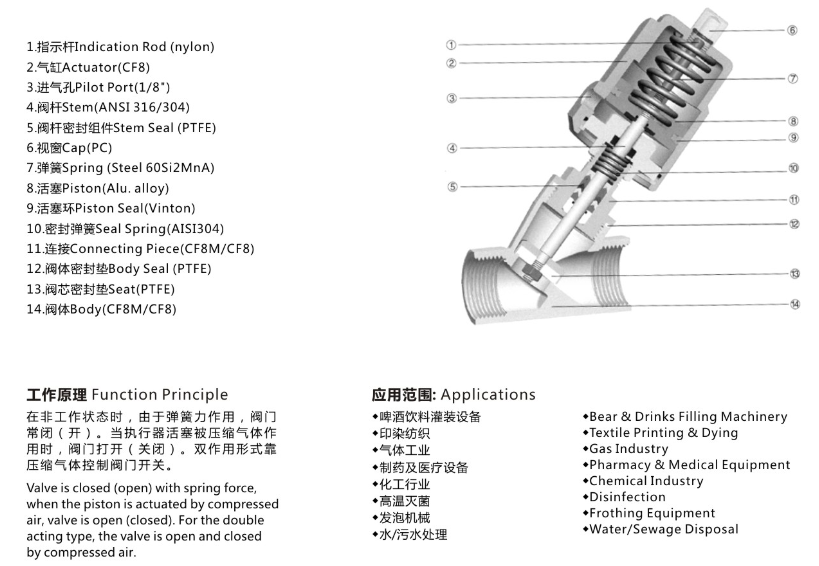

Angle Seat Valve Specification
Fluid Pressure: 0~1.6Mpa
Control Pressure: 4~8Bar
Control Gas: Neutral Gas or Air
Body Material: CF8/304, CF8M/316
Seals Material: PTFE
Actuator Material:CF8/304, Polyamide PA, Aluminum Alloy
Medium Temperature: -20°C~+180°C, +25°C~+220°C
Working Temperature: -20°C~+80°C
Medium Viscosity≤600mm2/s
Control Type: Single Function Normally Closed,Single Function Normally Open,Double-Acting,Manual
Connection: Threaded(BPS,NPT),Welding, Tri-Clamp, Flange
Applicable Medium: Water,Alcohol,Oil,Feul,Steam,Neutral Gas Liquid,Organic Solvent,Acid and Alkali Solution
Optional Accessories: Proximity Switch,Solenoid Valve,Manual Limit,Intelligent Positioner

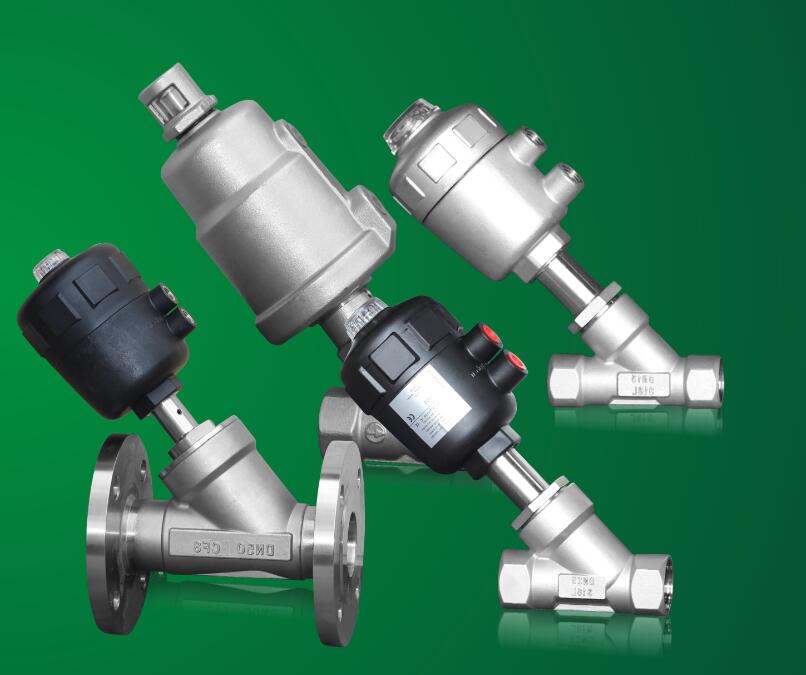

stainless steel angle seat valve with AT type pneumatic control actuator

stainless steel angle seat valve with AT type pneumatic control actuator
