Chongqing Nakin Electromechanical Co., Ltd.
China Manufacturer with main products: Oil Purifier, Vacuum Oil Purifier, Oil Filter, Oil Filtration, Transformer, Oil Purification, Oil Refinery, Oil Dehydration |

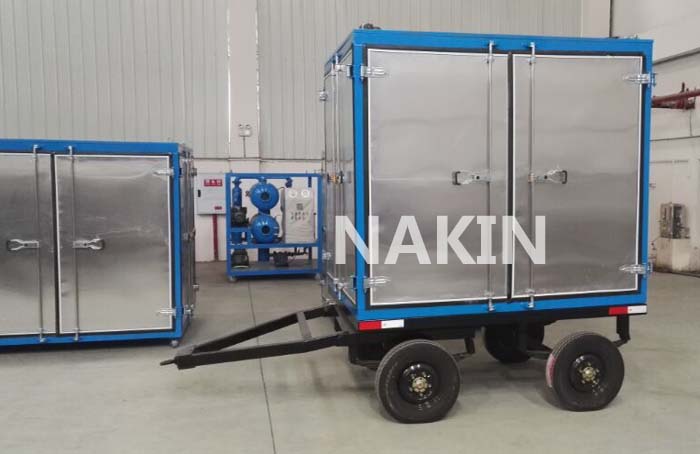

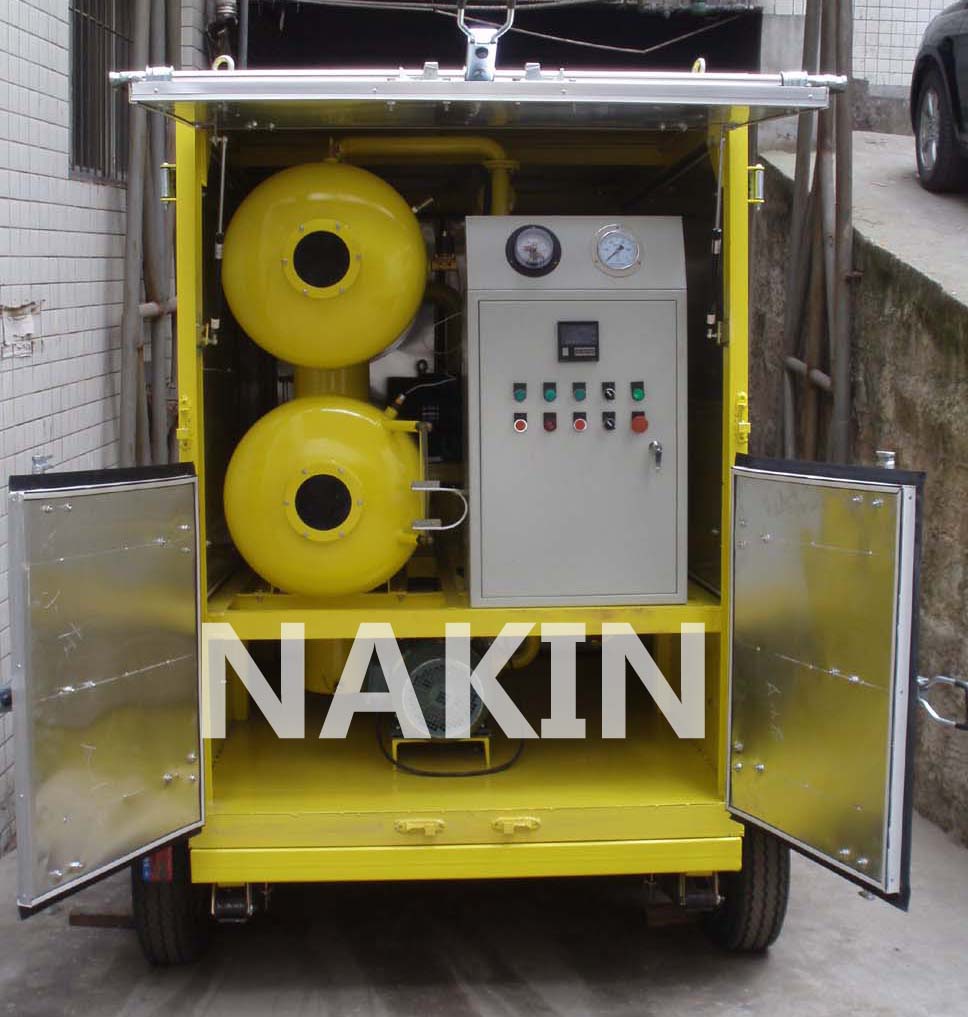

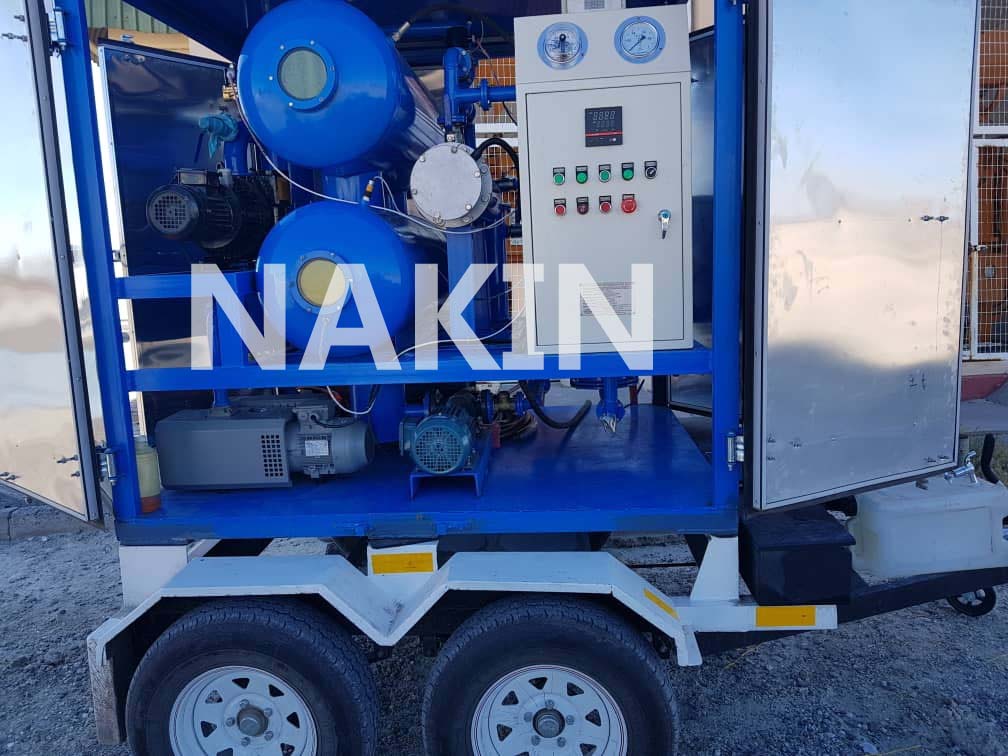

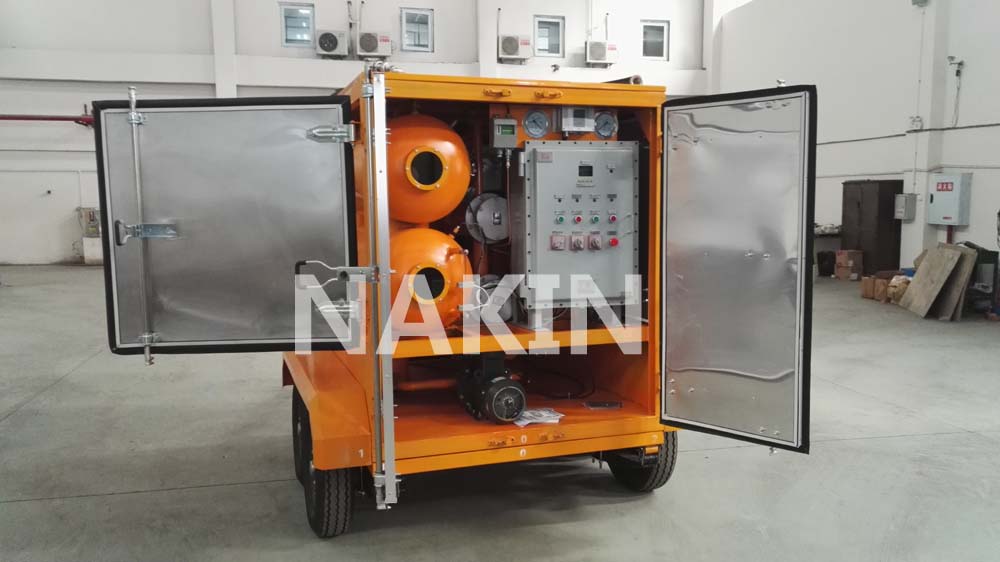

ZYM Trailer Type Insulating Oil Purifier
| FOB Price: | 4000.00 - 8000.00 USD/Piece |
|---|---|
| Supply Ability: | 30 Piece(s) per Month |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CCC Certification
- Weight: 1000kgs~1700kgs
- Brand Name: NAKIN
- Condition: New
- Dimension(L*W*H): Custom Made
- Power(W): Custom Made
- Voltage: Custom Made
- Usage: Insulation Oil
- Working Pressure: under 0.4 MPa
- Flow: Custom Made
- Working Noise: 65~85 db
- After Purification Breakdown Voltage: Beyond 70 kv
- After Purification Water Content: Under 3 ppm
- After Purification Gas Content: Under.01%
Specifications
According to field work requirements, the ZYM series trailer-type insulating oil vacuum oil purifier developed by our company has the characteristics of convenient movement, rapid transfer, rainproof, dust-proof, etc., it is especially suitable for oil filtering operations during field power maintenance. ZYM trailer oil purifier is a double-stage vacuum oil purifier, which can quickly and effectively remove moisture, gas (acetylene, hydrogen, methane, etc.) and impurities from the insulating oil, to restore and improve the insulating oil. the filtered oil can effectively ensure the safe and normal operation of power equipment. this machine also has the functions of vacuum drying, vacuum oil injection, and hot oil circulation. It can also be used as a separate vacuum pumping unit to vacuum the transformer and power equipment.
the vacuum system uses the roots pump as the main pump and the rotary vane vacuum pump as the primary pump. It has fast start-up, large pumping speed, stable performance, and high ultimate vacuum of less than 5Pa.
Double horizontal vacuum separators, combined with Duplex-Stereo film evaporation technology
Strong ability to remove impurities: ultra-large area cylindrical precision filter element, with high filtration accuracy, easy installation and replacement.
Low-load heating: Adopt advanced internal and external double-tube heat radiation indirect heating technology.
Automatic control to realize unattended, safe and stable working.
Safety interlock protection for oil pump, vacuum pump, heater to keep safely working
Low noise, easy operation, long maintenance interval, low energy consumption, low operating cost
It can be used together with the insulation oil regeneration device, which has the effect of decoloring, deacidification, deoxidation and removing free carbon and other harmful substances from the oil.
CHONGQING NAKIN ELECTROMECHANICAL CO.,LTD is joint-stock high-tech enterprise from Chongqing China. We are professional in various oil purifier equipment manufacturing, main products cover vacuum transformer oil purifier, turbine oil treatment, hydraulic oil filtration, waste engine oil regeneration system etc. after many years of development, company has grown into a comprehensive enterprise, engaging in vacuum oil purifier manufacture, technical service and Imp&Exp trading. NAKIN products are widely applied in projects of transformer substation, electric department,steel structure, bridge, auto, railway, aviation, chemicals, petroleum etc. the products are exported to more than 30 countries and areas, such as Europe, America, Middle East, Southeast Asia and so on. The product gets the good reputation from the dealer and end user.
