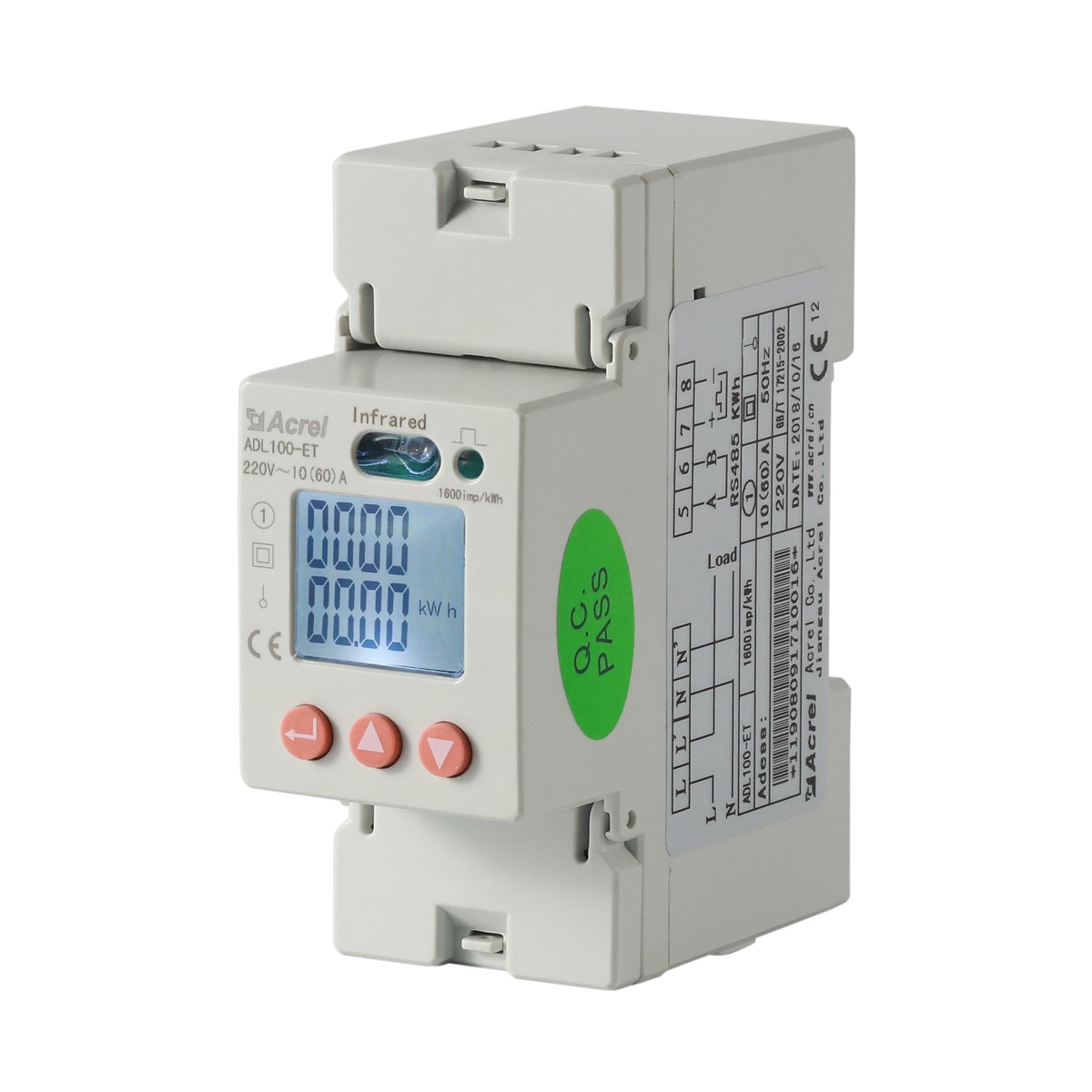

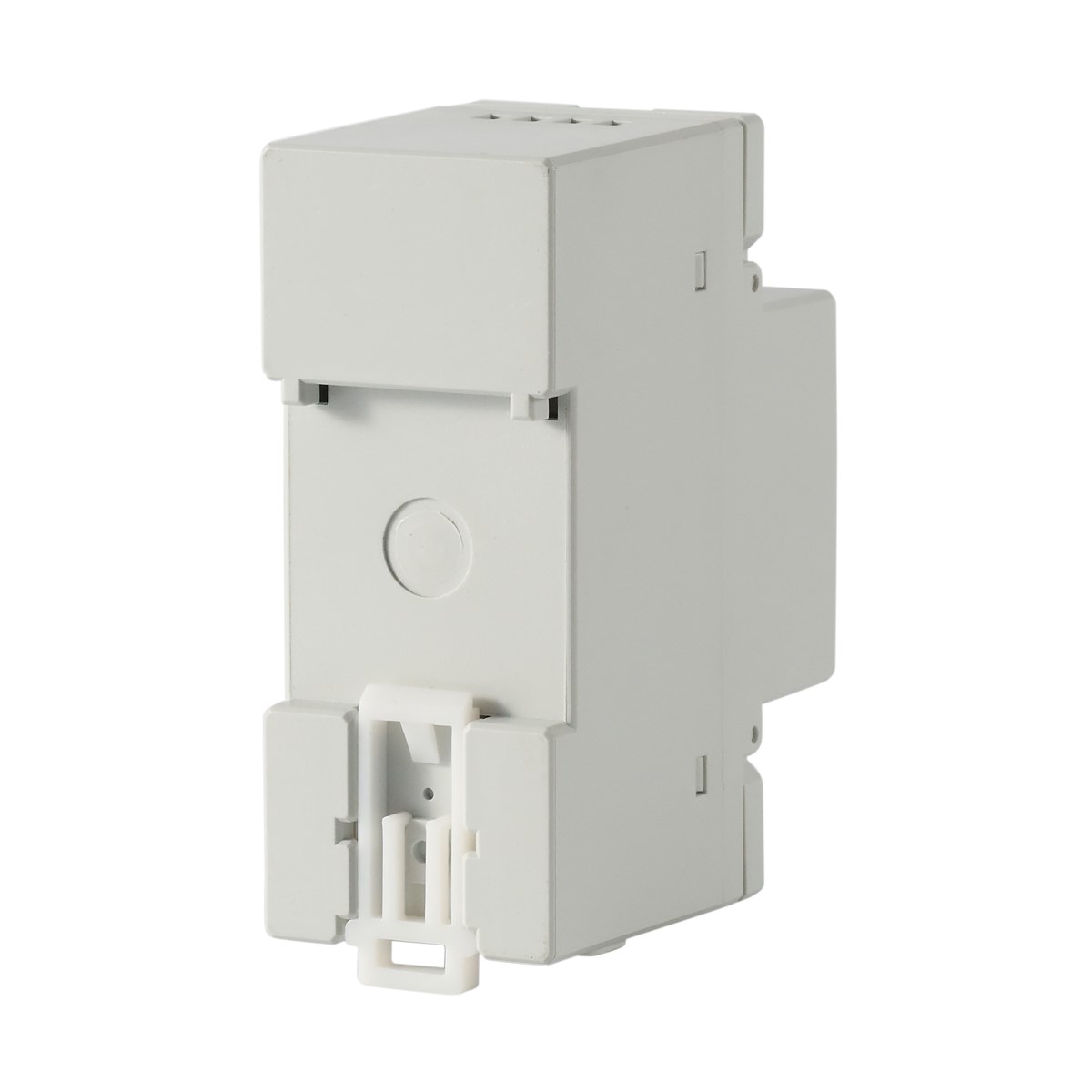

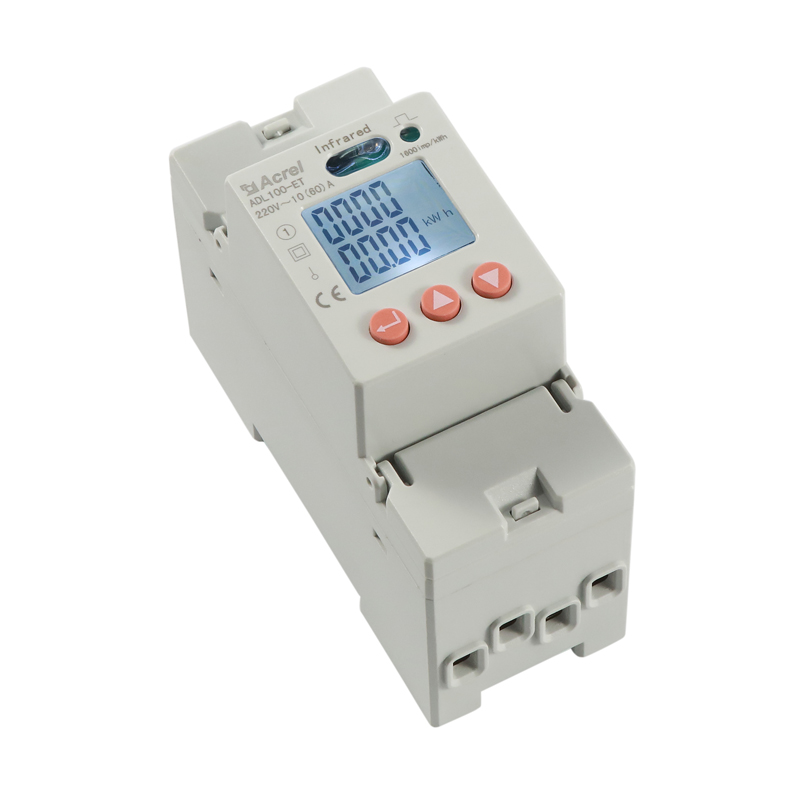

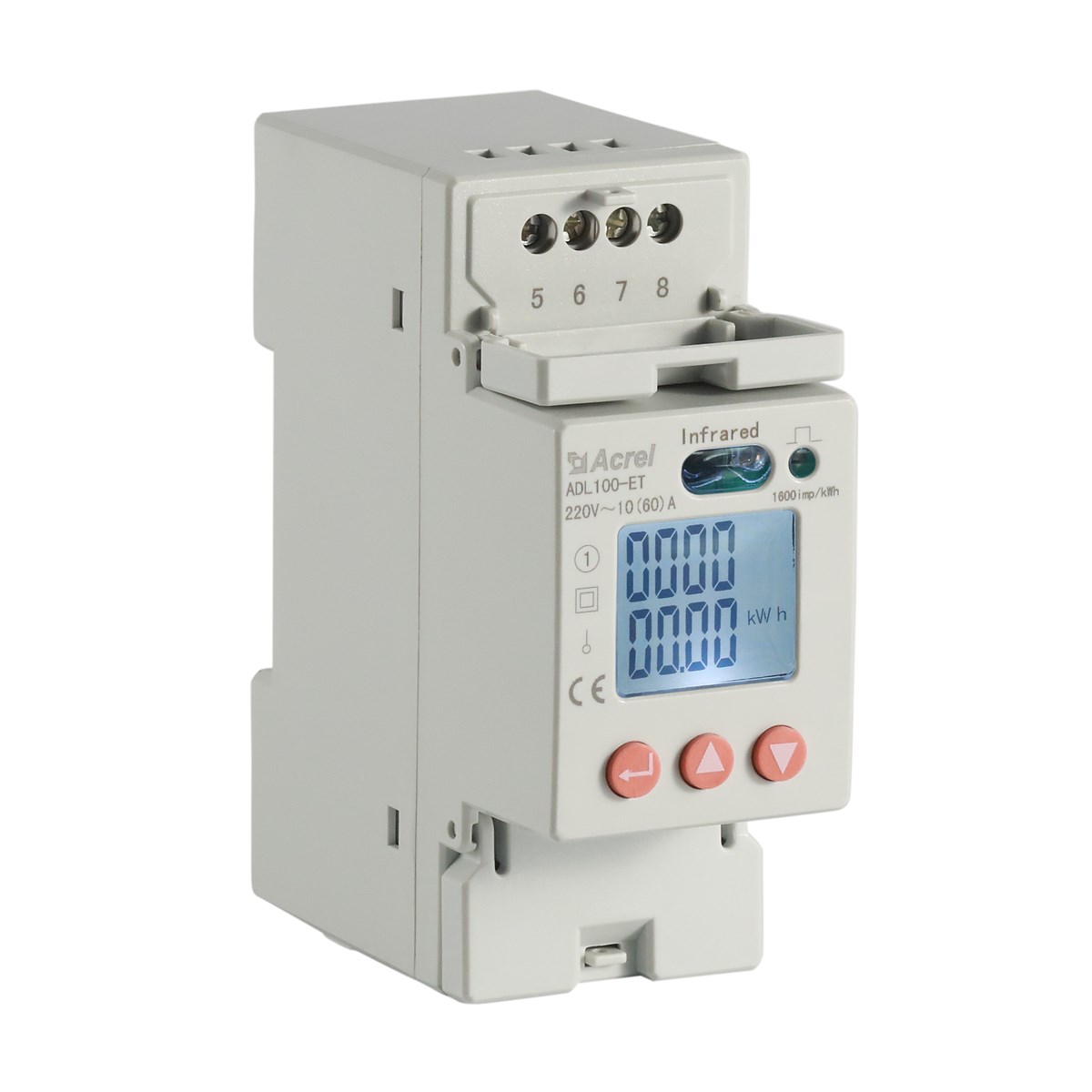

Acrel 300286. SZ ADL100-ET/C Single Phase DIN Rail Energy Meter Rs485 Modbus Rtu
| FOB Price: | 48.00 - 50.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Week |
| Shipping: | FOB shanghai |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Products are packed in carton box with air bubble film |
Quick Details
- Brand Name: ACREL
- Size: 36*88*70mm
- Type: LCD displat
- Material: metal
- Color: white
- Model Number: ADL100-ET
- Product name: 2P singel phase energy meter
- Brand: OEM ODM
- Reference voltage: AC 220V
- Reference frequency: 45~65HZ
Specifications
Product Description
ADL100-ET Multi-Function DigitalSingle PhaseDIN RailEnergy Meter
General
ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. this power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC62053-21,IEC 62053-22 standard.
Features
AC220V
10(60)A,20(100)A
RS485(MODBUS-RTU)
Set parameters
LCD display
KWh Class 1
DIN 35 mm
Technical Parameters
Voltage |
Reference voltage |
AC 220V |
Reference frequency |
45-65 Hz | |
Consumption |
<10VA( Single phase) | |
Current |
Maximum |
60A |
Starting current |
0.004 Ib | |
Consumption |
<4VA(Maximum current) | |
Measurement performance |
Accuracy of active kWH |
Class 1 |
Standards complicant |
IEC 62053-21:2003 | |
Pulse |
Pulse width |
80+20 ms |
Pulse constant |
3200 imp/kWH | |
Communication |
Interface |
RS485 |
Protocol |
Modbus-RTU | |
Outling |
L*W*H(mm) |
36*88*70 |
Environment |
Temperature |
Operating:-25℃~55℃;Storage:-40℃~70℃ |
Humidity |
≦95% (No condensation) | |
Altitude |
<2000m |
LCD Display
Function
Wiring
Typical connection
