| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
Quick Details
- Brand Name: HY
- Temperature of Media: Medium Temperature
- Material: Forged
- Pressure: High Pressure
- Standard or Nonstandard: Standard
- Port Size: DN15-DN80
- Media: Gas
- Power: Manual
- Structure: Gate
Specifications
Design standard:API 602/BS5352

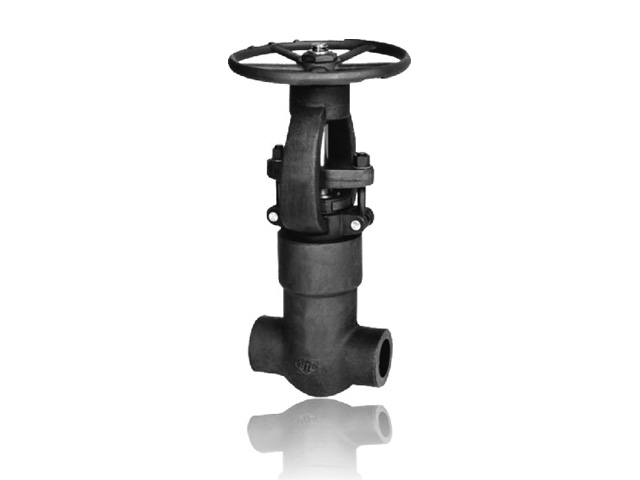

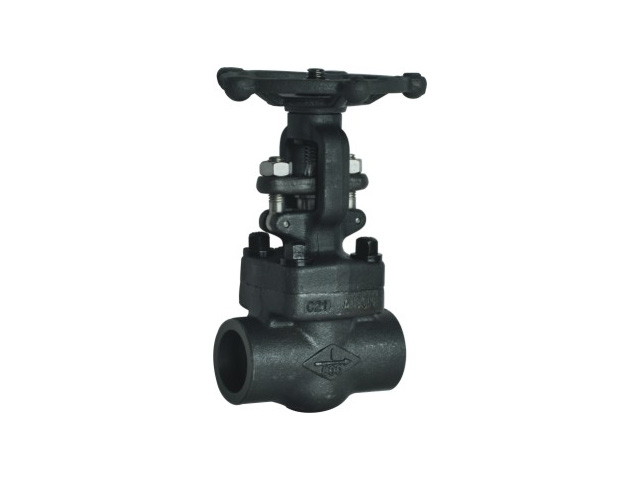

the length of the structure:length of structure of socket welding / thread end of forged steel gate valve is manufactured by factory standard=

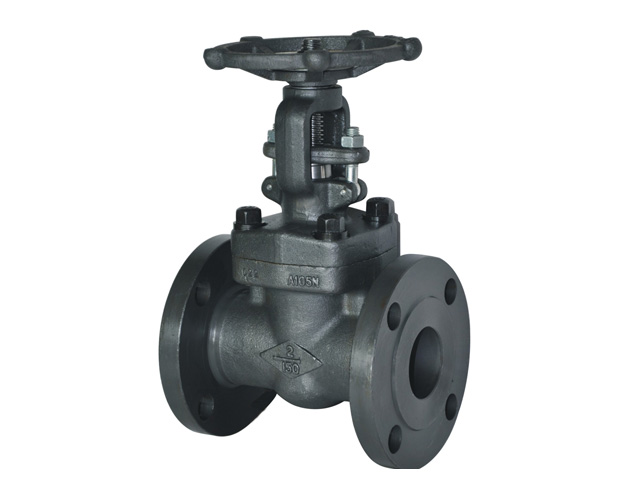

the length of structure of flange/ butt welding end of forged steel gate valve is manufactured by ASME B16.10
Flange connecting end:ASME B16.5
Wall thickness:API 602/ASME B16.34
Inspection and test:API 602
Pressure and temperature rating:ASME B16.34
Product scope:NPS ~NPS 3,CL150~CL2500
Main body material:A105LF2F11F22F51F91F304F316F304LF316L etc.
Drive device:handle, bevel gear, electric, pneumatic, etc.
