Home >Products Catalog > ACREL 300086. SZ Transducers Split Core Open Loop 4-20mA Output 0-500A DC Input AHKC-EKAA Hall Effect Current Sensor

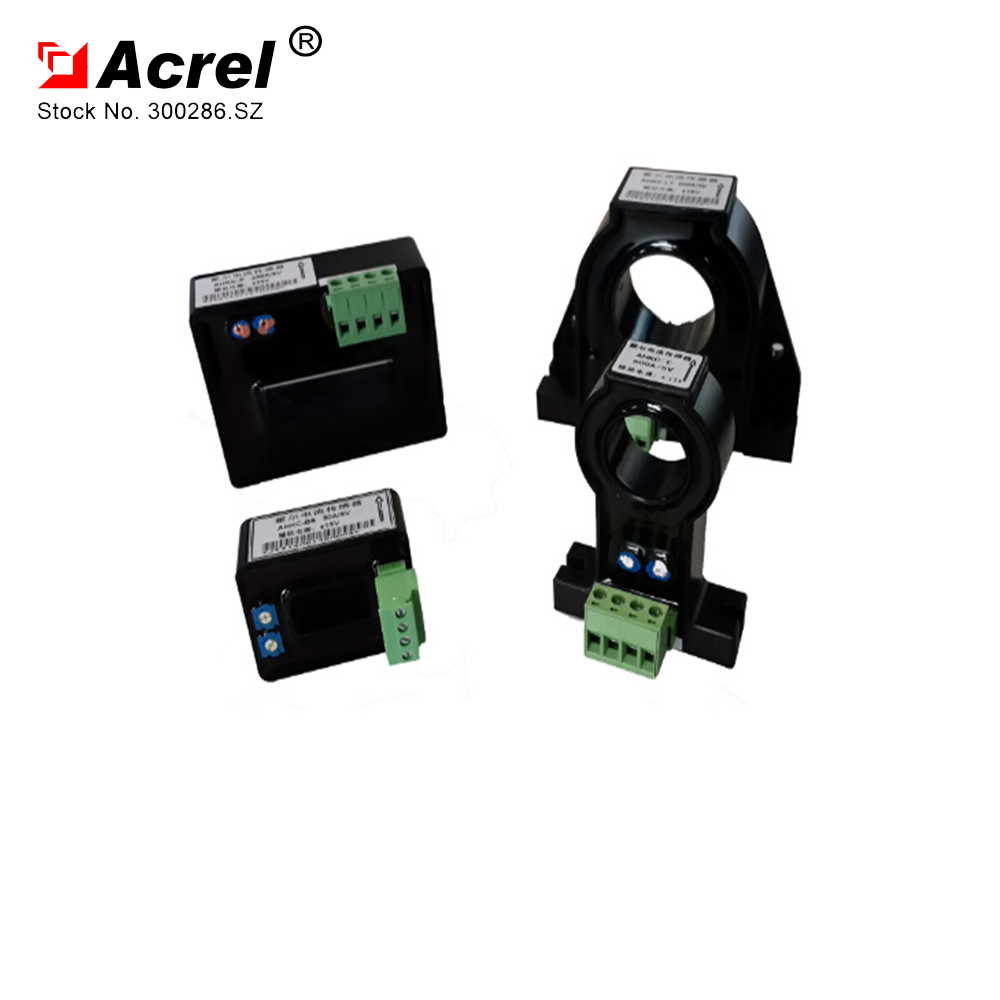

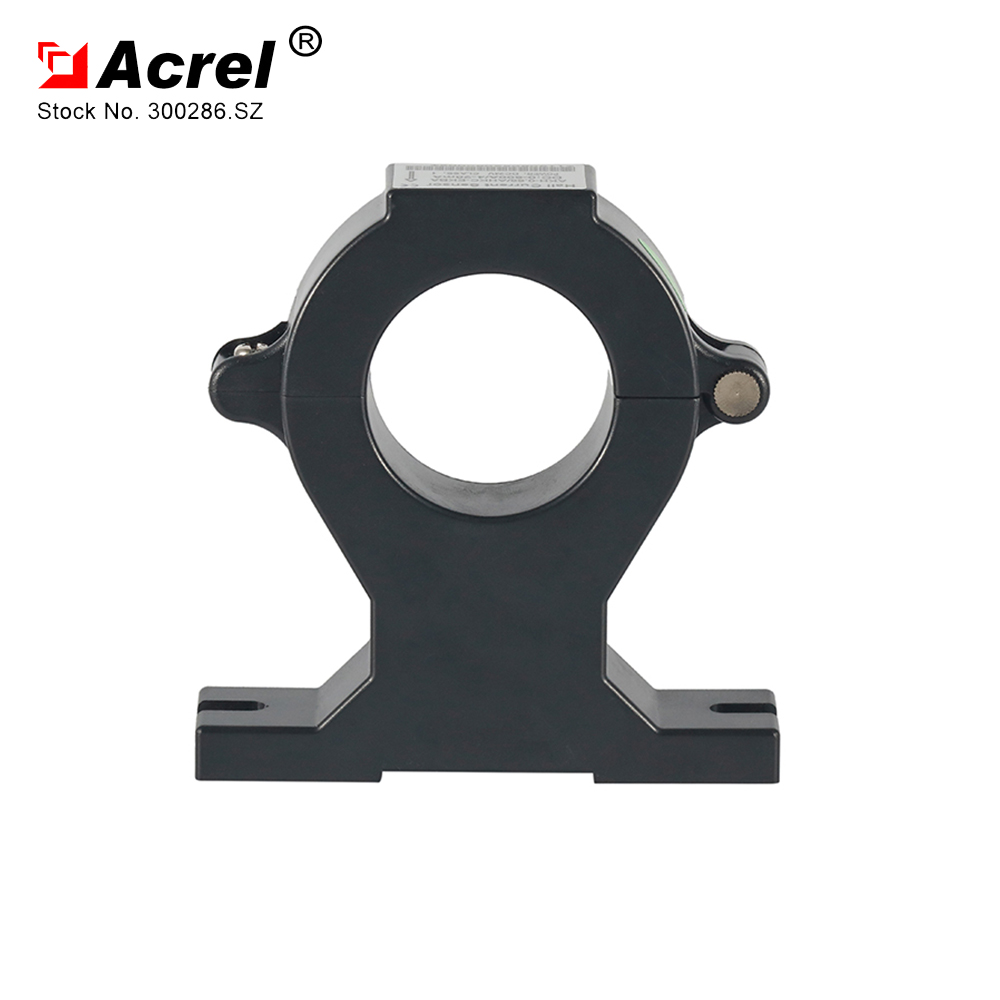

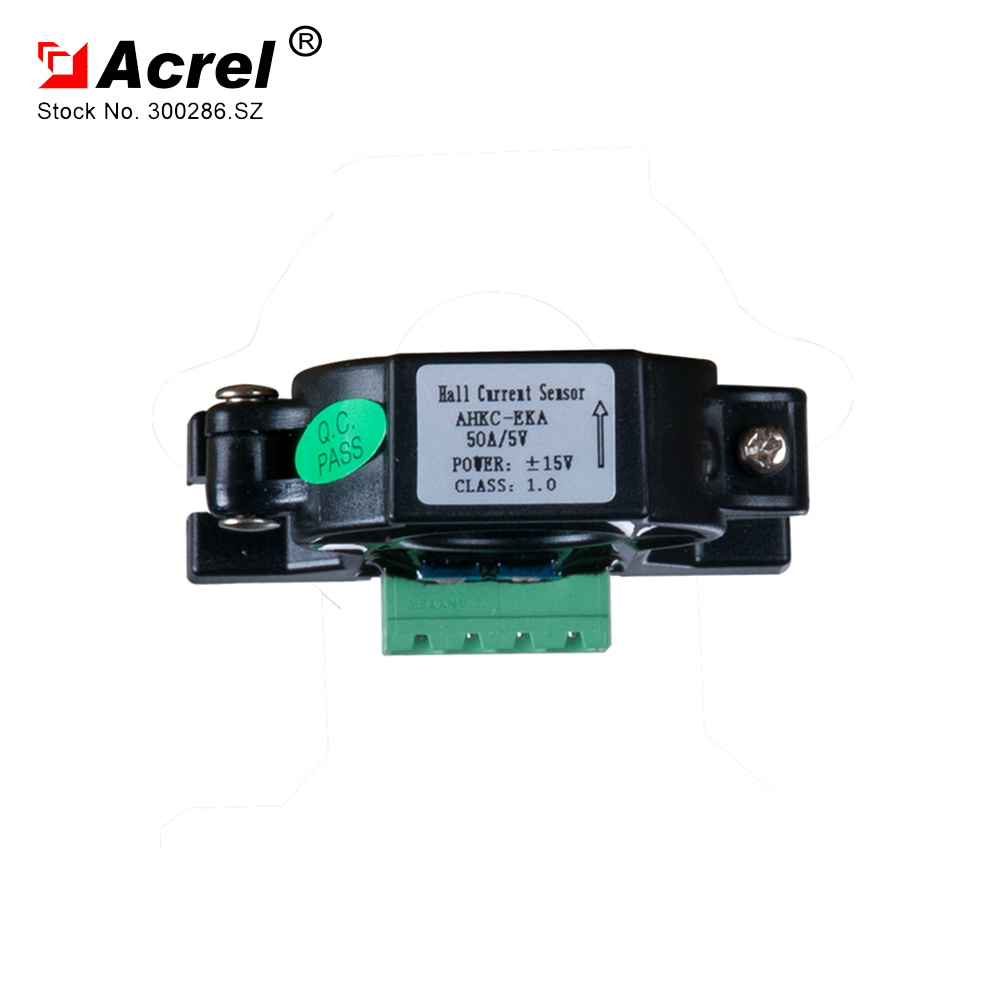

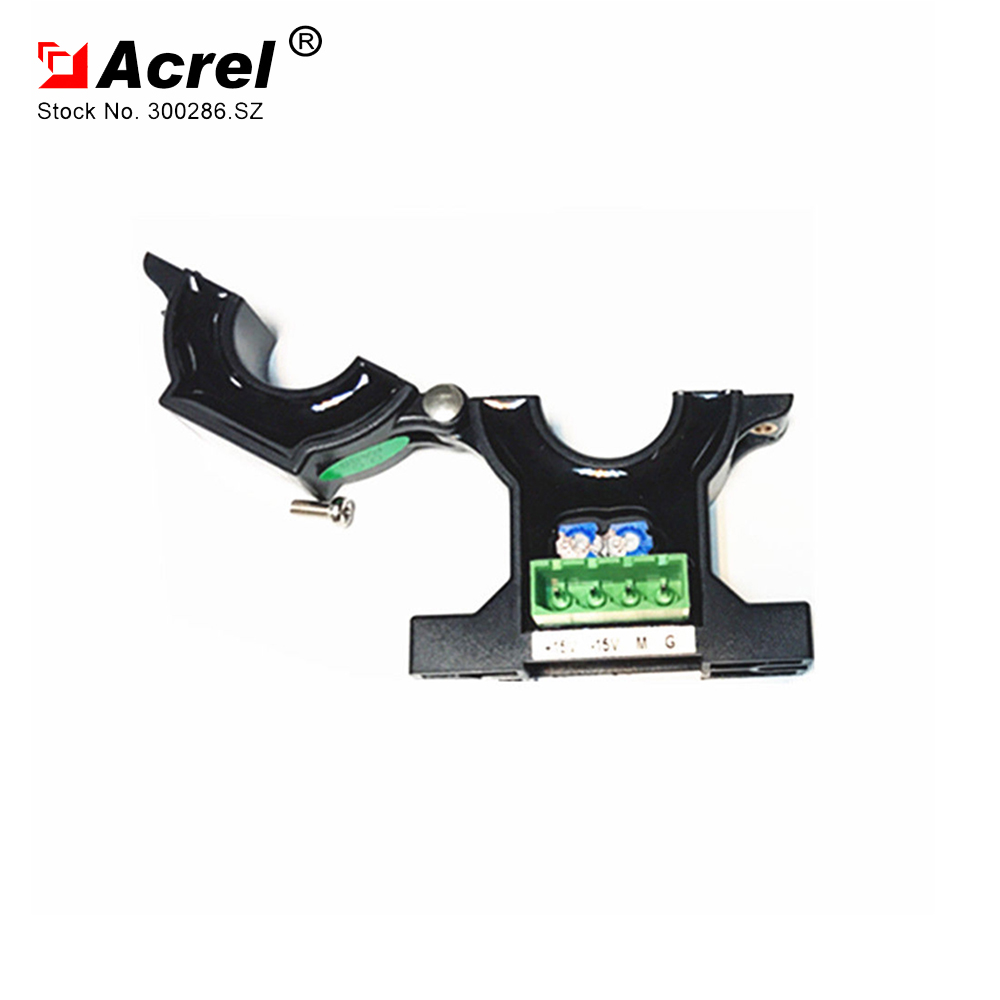

ACREL 300086. SZ Transducers Split Core Open Loop 4-20mA Output 0-500A DC Input AHKC-EKAA Hall Effect Current Sensor

FOB Price:	10.50 - 12.00 USD/Acre
Supply Ability:	80,000 Acre(s) per Month
Shipping:	arishipping
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy, Other

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

E3C-JC4P/E3C-JC4P: OMRON SENSOR

Price:

Min. Order:
Electronic Sensor for Camera Display

Price:17.00-20.00 USD/Piece

Min. Order:1000 Pieces
Solar Motion Sensor Light

Price:5.00-30.00 USD/Piece

Min. Order:500 Pieces
Armord RTD

Price:10.00-20.00 USD/Piece

Min. Order:10 Pieces
lvdt sensor

Price:10.00-106.00 USD/Piece

Min. Order:1 Piece
YSI 400 series temperature probe

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

Quick Details

Output: Digital Sensor
Theory: Hall Sensor
Usage: Magnetic Sensor
Brand Name: ACREL
material: copper
Model Number: AKHKC-EKAA
Product name: close loop hall current sensor hall effect current tranducer
Rated voltage output: 5V/4V
Rated current: 0- (20-500)A
Power supply: 12V/24V
Accuracy class: 1.0

Specifications

Product Description

Hall sensor

1.General

Hall current sensors are mainly used to isolate and convert AC,DC,pulse and other complex signals.after signals are
Convertedaccording to the Hall Effect Theory,the can be directly acquired by AD,DSP,PLC, secondary instruments and other
Devices.Hall current sensors are widel applicable for acquisition and feedback control of current signals in the current
Monitoring,battery application,inverter,solar power management,direct current cabinet,DC motor
Drive,electroplating,welding,frequency converter,UPS servo control systems.They feature the quick response,wide range of
Measurement,high precision,strong overload capcity,good linearity and excellent and anti-interference performace.

Model	Rated current	Power supply	Rated output	Measuring Aperture(mm)
AHKC-EKA	0~(20-500)A	±15v	5v	φ20
AHKC-EKAA	DC 0~(50-500)A	12V/24V	4~20mA	φ20
AHKC-EKB	0~(200-1000)A	±15v	5v	φ40
AHKC-EKBA	DC 0~(200-1000)A	12V/24V	4~20mA	φ40
AHKC-K	0~(400-2000)A	±15v	5v	64x16
AHKC-KAA	DC 0~(400-2000)A	12V/24V	4~20mA	64x16
AHKC-H	0~(500-3000)A	±15v	5v	82x32
AHKC-KA	0~(500-5000)A	±15v	5v	104x36
AHKC-HB	0~(2000-20000)A	±15v	5v	132x52
AHKC-HBAA	DC 0~(2000-20000)A	12V/24V	4~20mA	132x52
