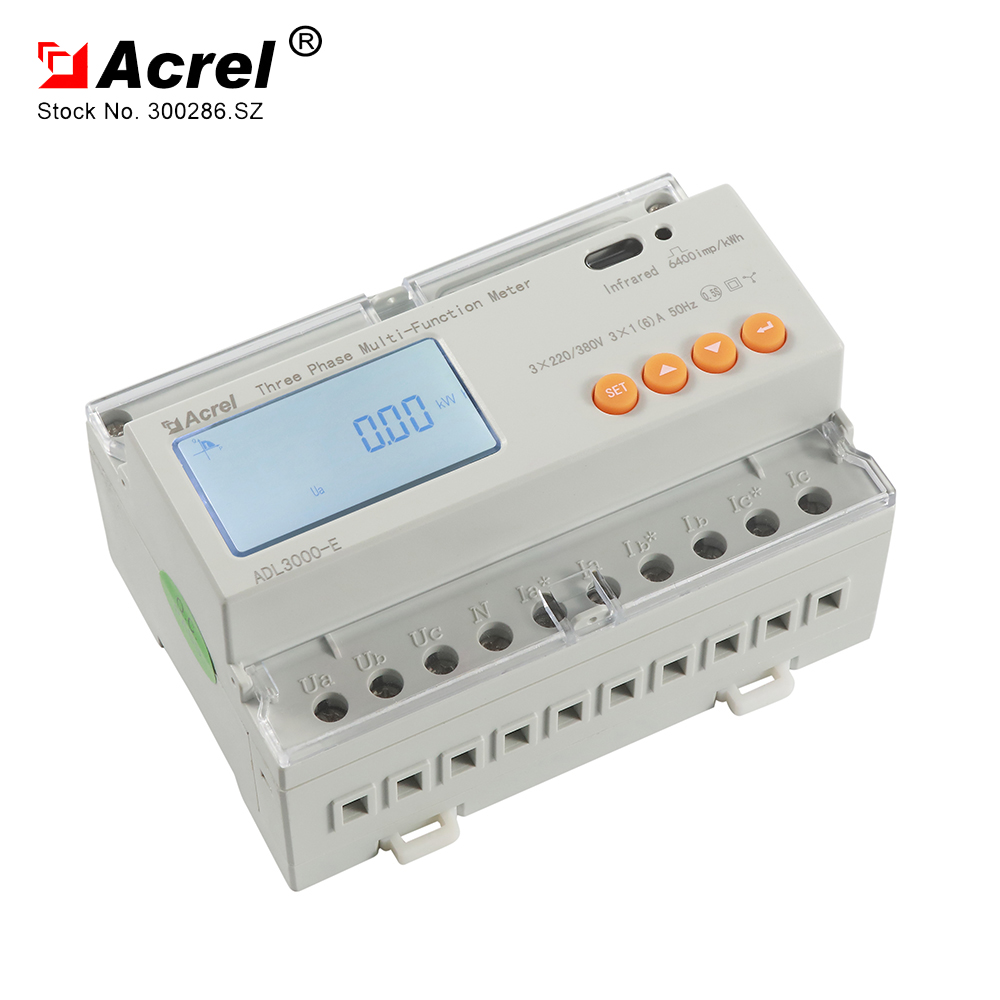

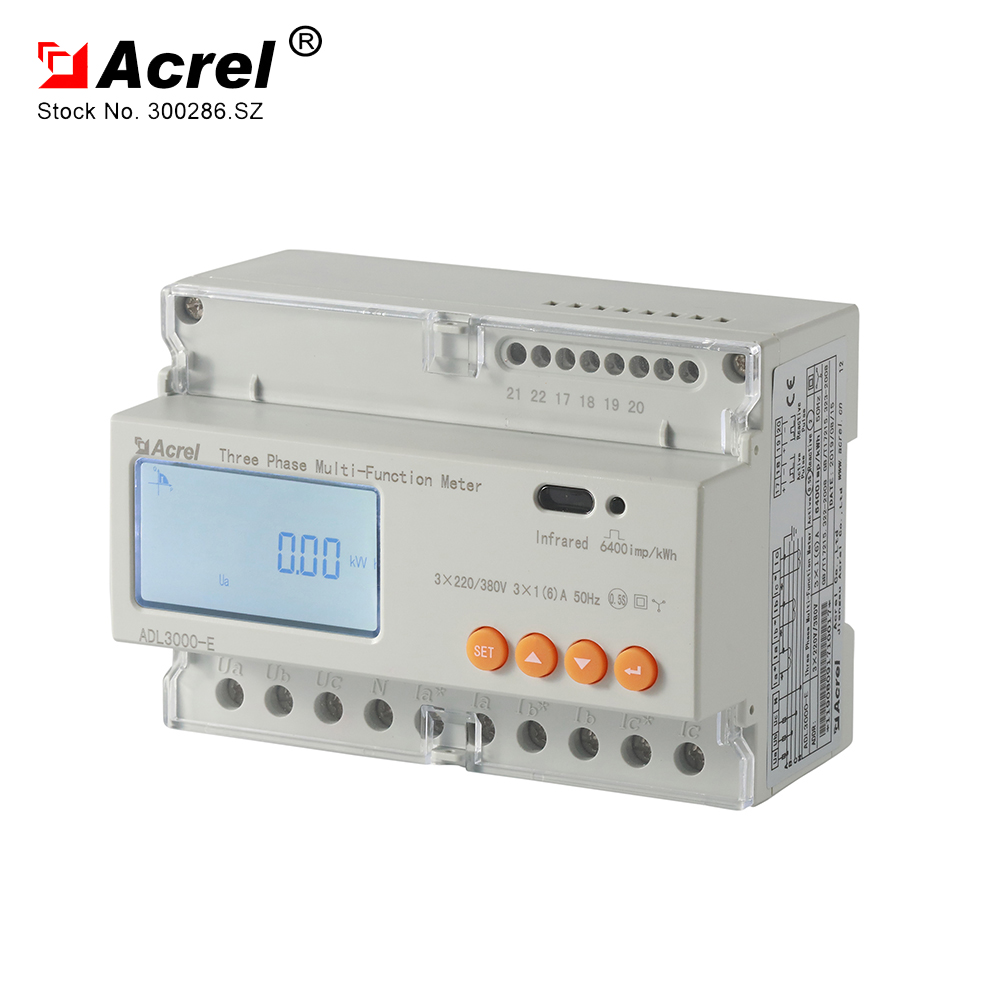

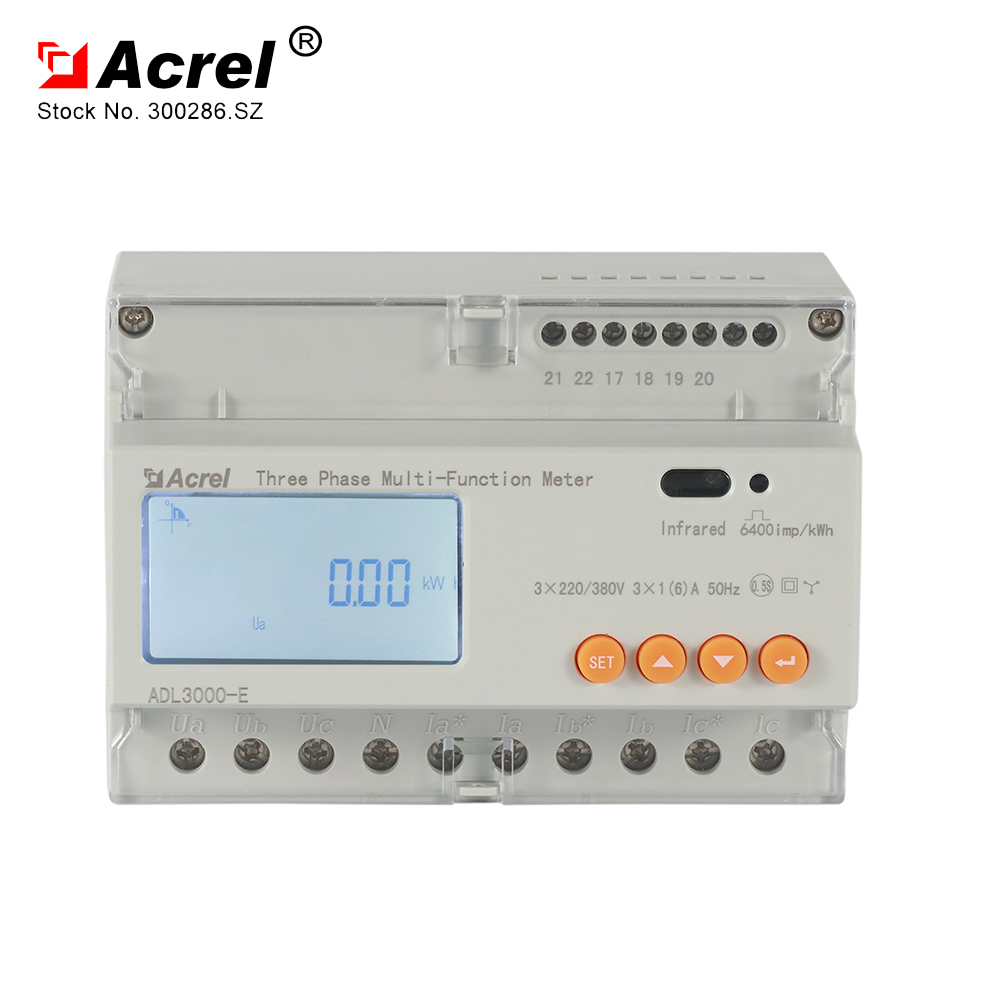

ACREL 300286. SZ ADL3000-E Three Phase Multifunction DIN Rail Energy Meter Factory Price Energry Meter Rail Mounted
| FOB Price: | 70.00 - 100.00 USD/Acre |
|---|---|
| Supply Ability: | 80,000 Acre(s) per Month |
| Shipping: | arishipping |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details

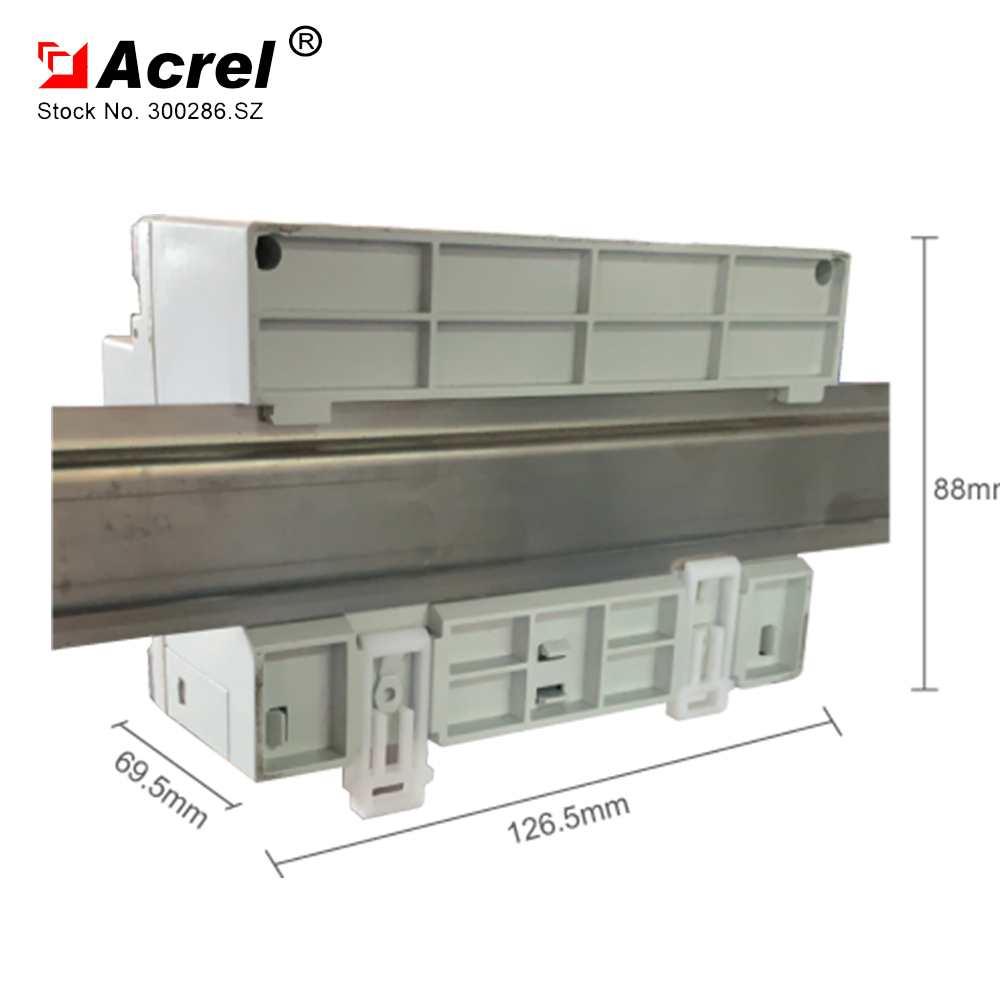

- Dimensions: 126*88*70mm
- Accuracy Class: 0.5S
- Phase: Three Phase
- Display Type: Digital Only
- Brand Name: ACREL
- Operating Temperature: -20 +60
- Output Voltage: AC100V/220V/380V
- Measuring Energy Range: 0-999999.99 KWh
- Model Number: ADL3000-E
- Electricity pulse output: 80ms plus and minus 20ms
- Installation method: TS35mm guide rail
- Certificate: CE IEC
- Reference frequency: 50Hz
- Product Keywords: 3 phase modbus energy meter
Specifications
Product Overviews
ADL3000E power analyzer specializes in measuring the data of all kinds of AC networks. It can be used for local display, or it is connected with the control equipment in measuring and controlling system. They comply EN 61326:2006 and EN 61010-1:2001.
They are a kind of programmable analyzer. with the 2 key on the front, we can choose to read the data that we need. They can be equipped RS-485 communication Modbus-RTU and DLT645-2007.
They are a kind of analyzer with excellent cost performance, since they regroup the functions of traditional electric transmitter and digital meters. Therefore they are widely being used in kinds of control system, SCADA system and power management system.
Technical
| ADL3000-E Three Phase Multi-Function Energy Meter |
AC 3220V/380V,3380V,357.7V/100V,3100V |
31(6)A,310(80)A |
U,I,P,Q,S,PF,kWh,kvarh |
RS485,MODBUS-RTU |
LCD display |
Frozen data |
2-31st Harmonics |
Alarm |
| kWh Class 0.5S,kVarh Class 2 |
