Home >Products Catalog > ACREL 300286. SZ Multi-Function Temperature Humidity Monitor Control Meter with Digital Display ACREL WHD48-11 109

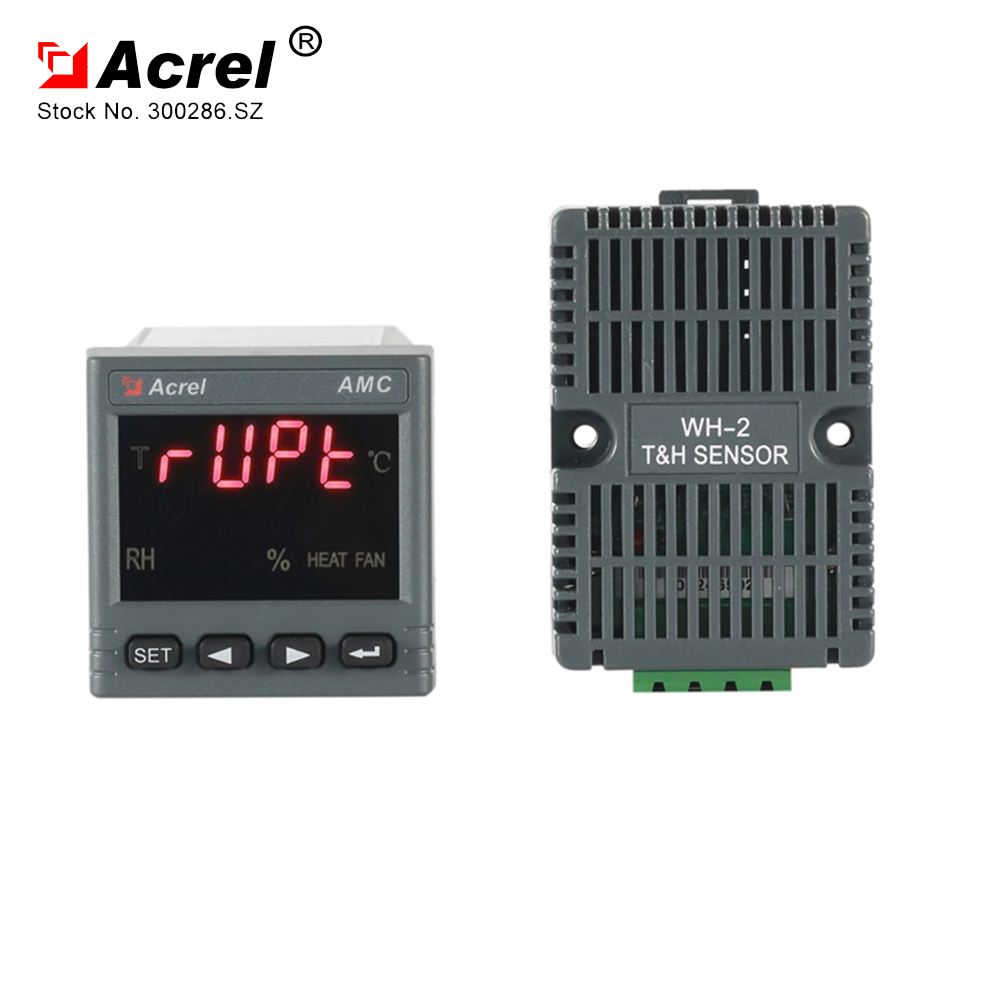

ACREL 300286. SZ Multi-Function Temperature Humidity Monitor Control Meter with Digital Display ACREL WHD48-11 109

FOB Price:	22.40 - 28.00 USD/Acre
Supply Ability:	80,000 Acre(s) per Month
Shipping:	arishipping
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Temperature range: -40-99.9
Accuracy: 1%
Theory: Temperature Controller
Usage: Industrial
Brand Name: ACREL
Model Number: WHD48-11
Power supply: AC 85~265V DC 100~350V
Channel: single channel
Certificate: CE
humidity accuracy: 5% RH

Specifications

Products Description

Tem & Humidity Controller

General


the controller for temperature and humidity is suitable for adjustment and control of temperature and humidity in equipments of high voltage switchgear, terminal box, ring network panel, box transformer substation etc. It can effectively protect relevant equipment from faults resulting from excessive low or high temperature, creep-age or flashover etc.from humidity or condensation.

Function Description

Optional function: communication
Temperature and humidity Measuring & controlling
Panel mounted


Accuracy: Temperature ±1℃, Humidity ±5%RH

Auxiliary power supply: AC 85-265V, DC 100-350V

Consumption: Auxiliary power supply:Basic power consumption(≤0.8w)+relay power consumption(each channel≤0.7w)

Technical Parameter

Voltage		DC18~36V
Consumption		≤2W
Rated voltage		AC198 264V
Rated frequency		50 60Hz
Locating current(peak)		1mA
Locating voltage(peak)		24AC
Protocol		Modbus-RTU
Interface		CAN
