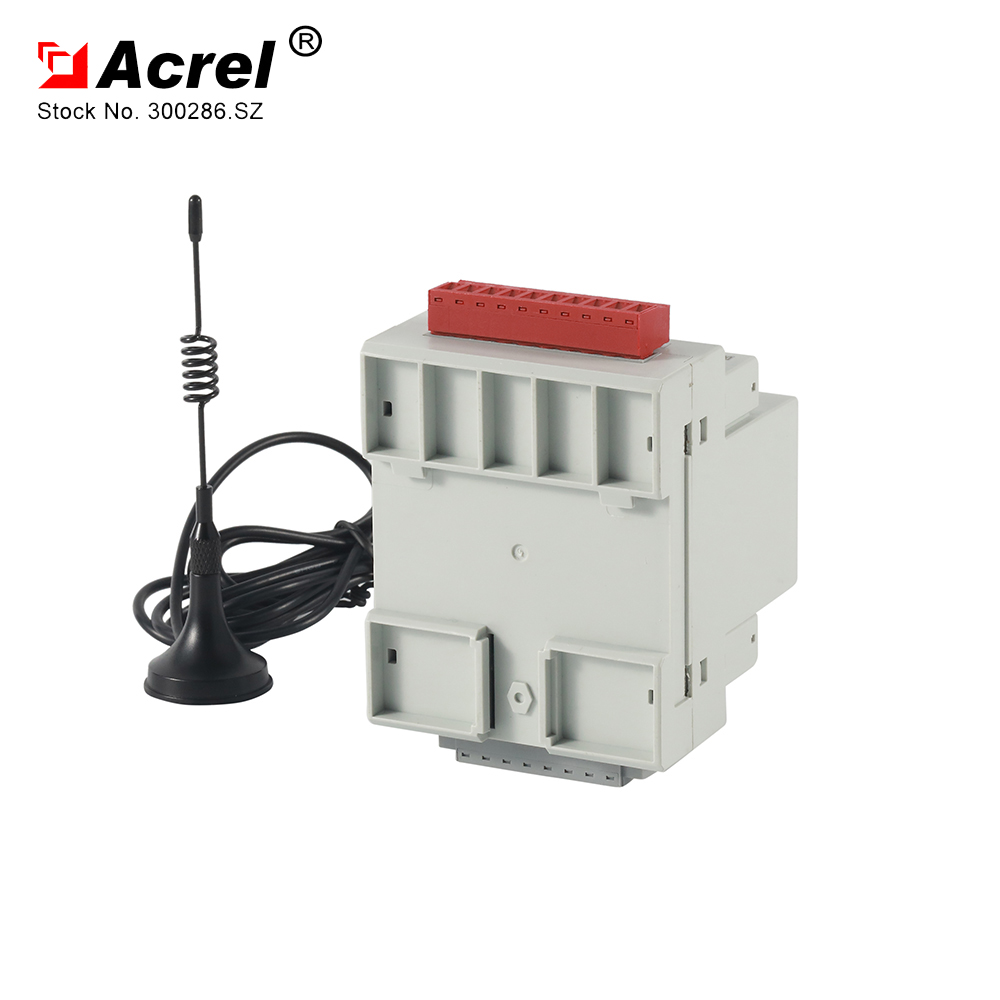

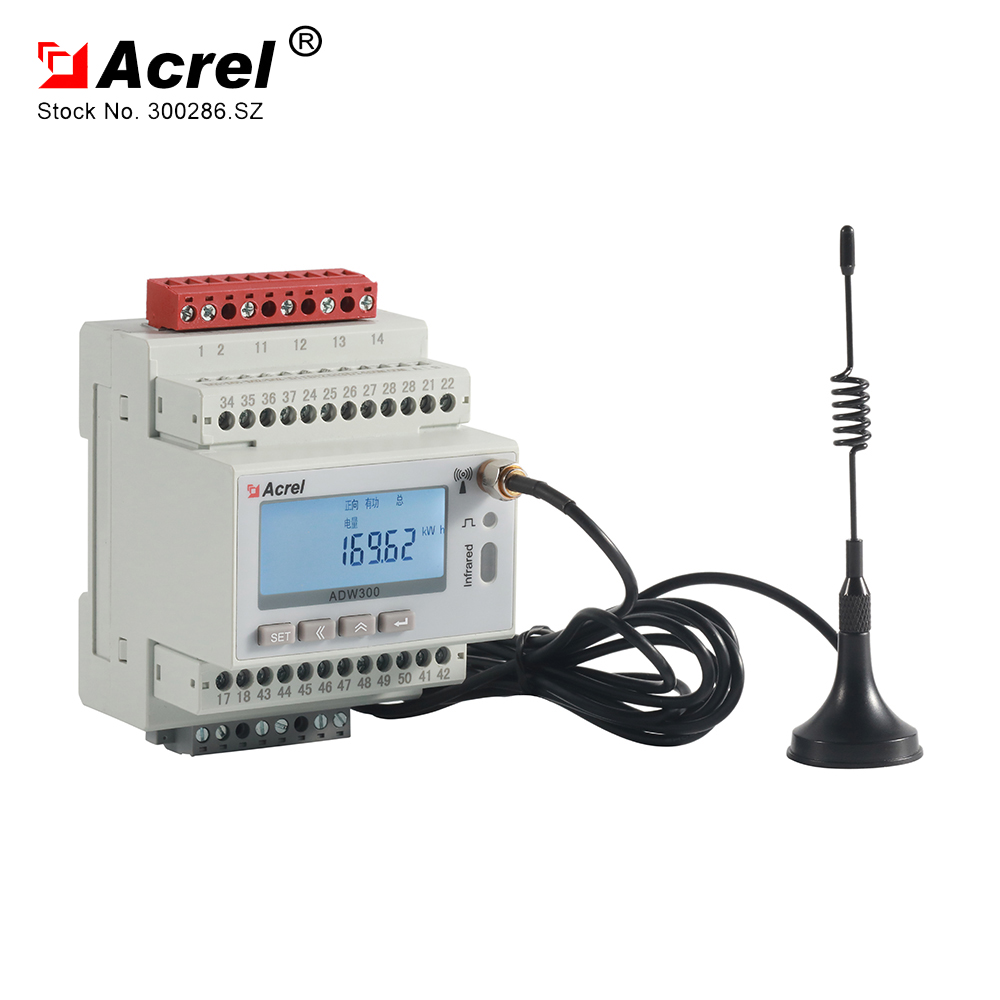

Acrel 300286. SZ ADW300-C Factory Price Harmonic 2-31st Voltage & Current Harmonic DIN Rail Three Phase Energy Meter
| FOB Price: | 76.50 - 80.00 USD/Acre |
|---|---|
| Supply Ability: | 80,000 Acre(s) per Month |
| Shipping: | arishipping |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Dimensions: 72mm*87.8 mm*71.5mm
- Accuracy Class: class 0.5
- Phase: Three Phase
- Display Type: Digital Only
- Brand Name: ACREL
- Operating Temperature: -20 +60
- Output Voltage: AC100V/220V/380V
- Measuring Energy Range: 0-999999.99 KWh
- Model Number: ADW300-C
- Reference frequency: 45-65Hz
- Relative humidity: not exceeding 95 %(No condensation)
- Installation method: Installation method
Specifications
Product Overviews
ADW300 wireless meter is mainly used to measure three-phase active power in low-voltage network. It has the functions of RS485 communication and 470MHZ wireless communication. It is convenient for users to monitor, collect and manage electricity. It can be flexibly installed in the distribution box to realize the measurement, statistics and analysis of individual electric energy in different regions and loads
| Specification | Accuracy | Resolution | Measuring Range |
| Active energy(Kwh) | Class 0.5S | 0.01 Kwh | 0-999999.99Kwh |
| Reactive energy(Karh) | Class 2 | 0.01Kvarh | 0.01 Kvarh |
| Voltage | 0.2% | 0.1V | 50-285V |
| Current | 0.2% | 0.01A | 0.01-80A |
| Active power | 0.5% | 0.001 Kwh | 0-22.88kw |
| Reactive power | 0.5% | 0.001 Kwh | 0-22.88kw |
| Apparent power | 0.5% | 0.001VA | 0-22.88kw |
| Power Factor | 0.2% | 0.001 | |
| Frequency | 0.2% | 0.01HZ | 45-65HZ |
| Active energy(Kwh) | Class 0.5S | 0.01Kwh | 0-999999.99Kwh |
