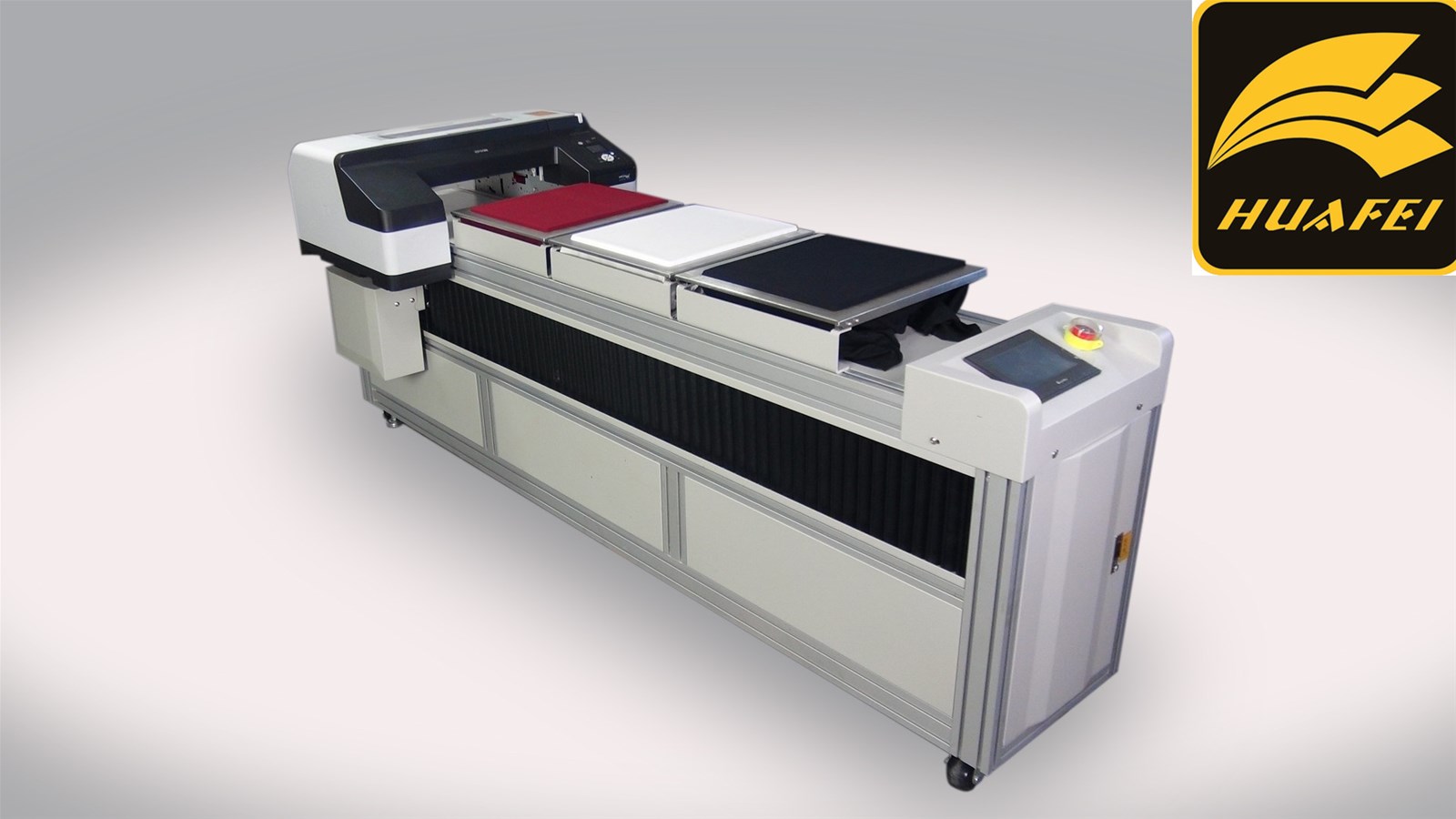

HUAFEI 3 Pallets Garment Dtg Printer for t-Shirt Machine

FOB Price:	9200.00 - 9558.00 USD/Set
Supply Ability:	20 Set(s) per Week
Shipping:	shanghai
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	WOODEN BOX

Quick Details

Type: Digital Printer
Color & Page: Multicolor
Automatic Grade: Automatic
Usage: Cloths Printer,
Brand Name: HUAFEI
Condition: New
After-sales Service Provided: No overseas service provided
Certification: CE
Weight: 280
Dimensions(L*W*H): 2600x1035x1250mm
Voltage: 220
Model Number: HFTX-T3A
Plate Type: Flatbed Printer
Printhead: epson TFP
TYPE: Inkjet Printer
product name: HUAFEI 3 Pallets Garment Dtg Printer for t-Shirt Machine

Specifications

TX-T3A Industrial Direct to Garment Printer
HUAFEI 3 Pallets Garment Dtg Printer for tShirt Machine

Descriptions:
TX-T3A is with 3 printing platens for industrial garment printing. It is integrated screen printing with Digital
Printing, largely reduce the printing cost of dark garment, also expand your business range by using discharge chemical, flock, foil, metallic, glitter. this Apparel printer is mainly chosen by Screen Printing factory, Branded
Clothing Company, Designer, Fashion Company etc.

1. Features:

1) Garment & Cutting Pieces & Grand Cutting Pieces, wider application.
Pallets: Standard: 350mm*400mm ( women size )
Options:
380mm*480mm ( men size )
250mm*300mm ( Children size )
Grand Pallet for T3A: 420mm*1600mm

2) Advanced Circulatory system of White Ink, easier maintenance and less waste.
6 White Channels: ensure excellent print quality of white ink.
Peristaltic Pump from Japan:guarantee the stability of White ink.

3)White and CMYK printed at one pass, higher efficiency.

4) Patented Printing Platens, easy to use and higher efficiency
Hydraulic hinge from Japan,
You can stop the frame at any angle to put on garment quickly.

5) Quality silent ball screw, Y transmission shaft is more durable and stable

2. Specifications:

Printhead: Epson TFP 10*360 nozzle

Rip software: HUAFEI RIP 10.1 ( dark garment support)

Colors: CMYK+ 6 * W for Dark Garment;
Double CMYK for light garment printing.

Print Directions: Intelligent bi/single direction printing.

Speed: 5 minutes / 3 pieces (light garments)
12 minutes / 3 pieces (Dark garments)
Press Weight Load: 50kg (Nondistructive of resolution)

Resolution: 2880*1440dpi

Ink: Water based textile pigment ink.
Media: Cotton, Cotton/polyester Blends, Lycra, Viscose, Silk, Linen, Wool and more.

Other consumables: Pre treatment solution for dark & light garments, Cleaning ink and head cleaning kit.

Height adjustment: Automatic/ manual operation
Head protection: Laser sensor automatic protection system.
Power: 110-220V, 50-60HZ, 500W
Interface: USB2.0/1.1, 1GB Ethernet, 320M memory
Computer System: Windows XP/ Win7, Mac, Linus

Working Environment: Temperature: 15-35℃, Humidity: 20-80RH
Printing Pallets: Standard: 350mm*400mm (women size)

Other options: 380mm*480mm (men size)
250mm*300mm(Children size)
Grand Pallet: 420mm*1600mm
HUAFEI 3 Pallets Garment Dtg Printer for tShirt Machine
