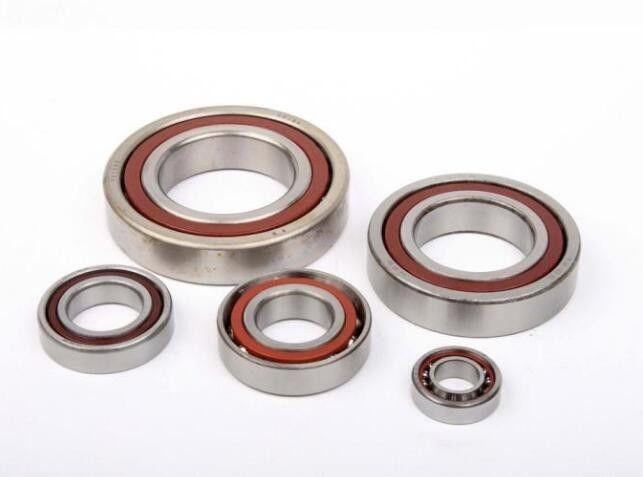

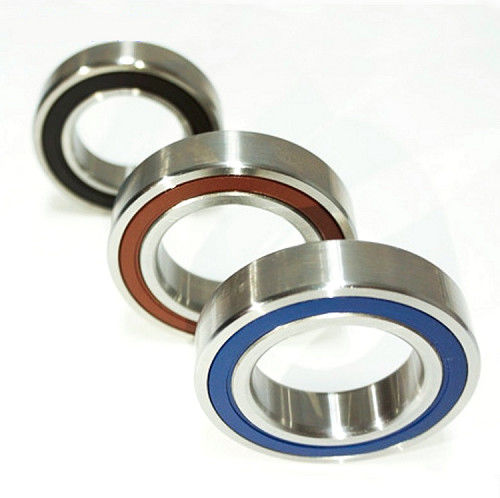

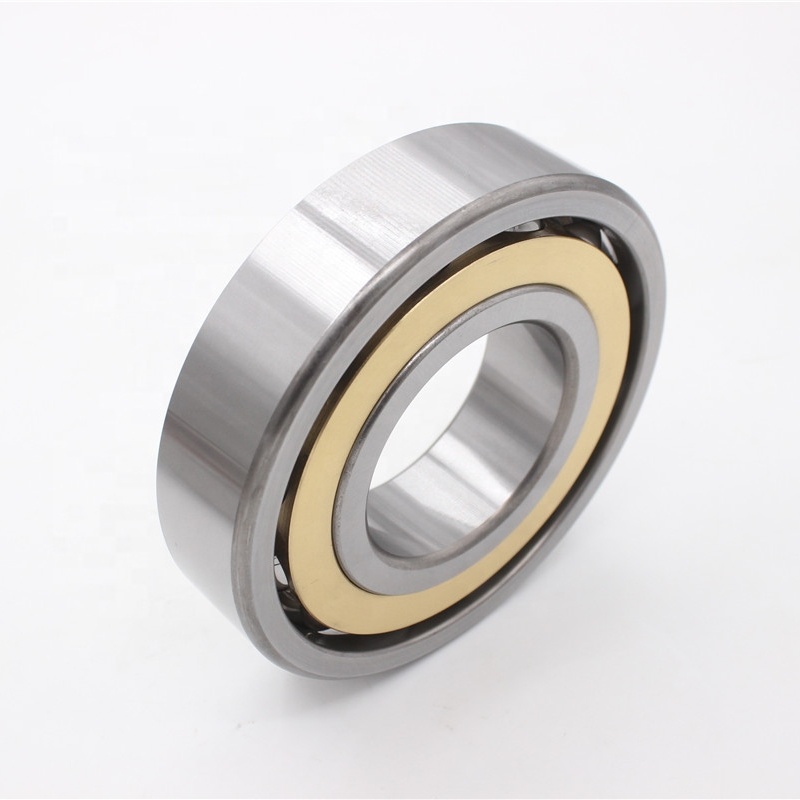

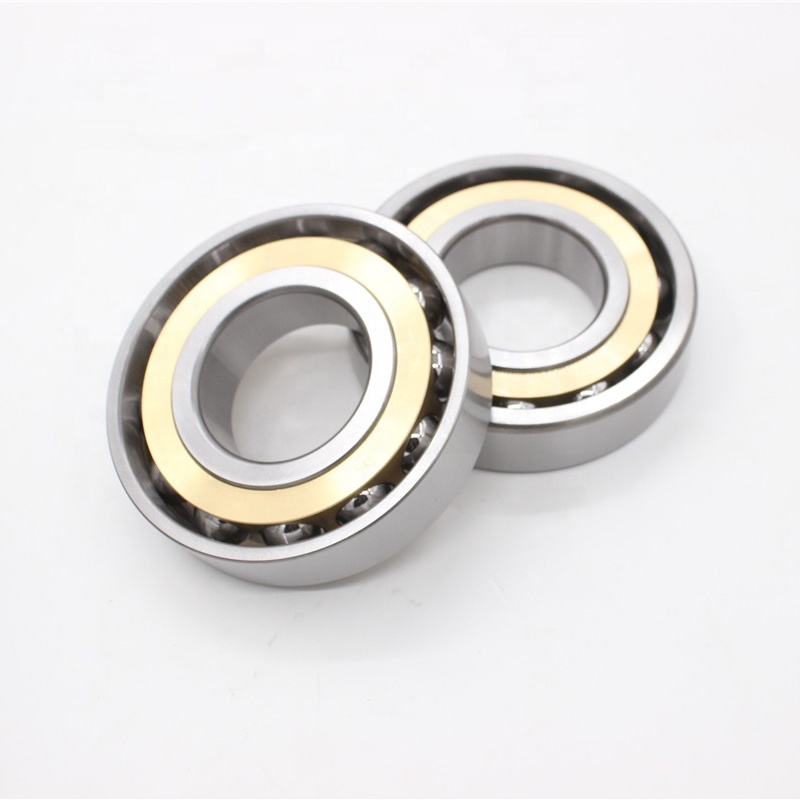

50 X 110 X 27mm 7310 Single Row Angular Contact Ball Bearing
| FOB Price: | 0.21 - 15.36 USD/Unit |
|---|---|
| Supply Ability: | 50,000 pieces per Week |
| Shipping: | By air, by road, by sea |
| Payment Terms: | L/C, D/A, D/P, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Plastic tube+individual box+carton According to customer demand. |
Quick Details
- Type: Ball
- Structure: Angular Contact
- Outside Diameter: 110-110 mm
- Bore Size: 50-50 mm
- Brand Name: SILURIAN
- Structure: Angular Contact
- Type: Ball Bearing
- Number of Row: Single Row
- Seals Type: ZZ 2RS OPEN
- Precision Rating: P0 P6 P5 P4
- Model Number: 7310
- OEM: Accept
- Precision: P0 P6 P5
- Cage: Steel, brass cage
Specifications
Stainless Steel Single Row Angular Contact Ball Bearing
7310 50 X 110 X 27 MM
Description:
Angular contact ball bearing: Angular contact ball bearings are: 7000C type (&= 15°), 7000AC type (&= 25°) and 7000B type (&= 40°), several types. the lock on the outer ring, the general inner and outer ring can not be separated, can withstand the combined radial and axial load as well as the axial load in one direction. the ability to bear axial load is determined by the contact angle. the larger the contact angle is, the higher the capacity of bearing axial load is. this bearing can limit the axial displacement of the shaft or housing in one direction.
Contact ball bearing limit speed is high, can bear both radial load and axial load, also can bear pure axial load, its axial load capacity is determined by the contact angle, and increase with the increase of contact angle.
7310B Angular contact ball bearings:
7310B Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis, which means that they are designed to accommodate combined loads, i.e. Simultaneously supporting radial and axial loads. The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.Retainers are made of brass, synthetic resin of others subject to individual bearing features and application conditions.
They are mainly used for steel industry, mining&construction, paper making machinery, wind turbines, semiconductors, machine tools, gearboxes, electric motors, pumps&compressors, injection molding machines.
Product Paramenters
FEATURES AT A GLANCE
Product Name: Angular contact ball bearing
Material: Chrome steel
Cage: Brass, Bakelite
Stock: Rich stock
Packing: Single box packing
Precision: P0 P6 P4 P5
OEM; Accept OEM
