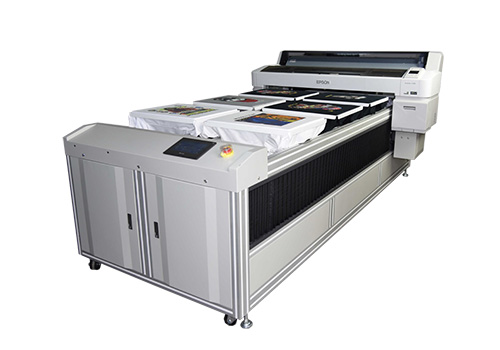

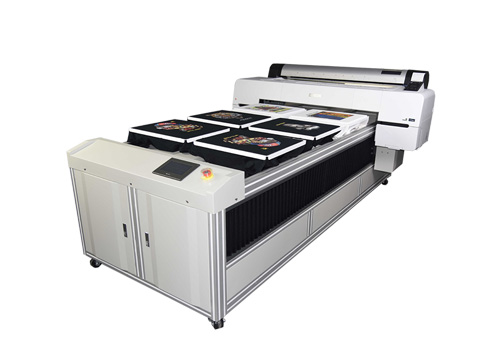

HUAFEI Industrial Garment DTG Printer
| FOB Price: | 21230.00 - 23000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set(s) per Week |
| Shipping: | shanghai |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | WOODEN BOX |
Quick Details
- Type: Digital Printer
- Color & Page: Multicolor
- Automatic Grade: Automatic
- Usage: Cloths Printer,T SHIRT
- Brand Name: HUAFEI
- Condition: New
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Weight: 350
- Dimensions(L*W*H): 3025x2030x1440mm
- Voltage: 110-220
- Model Number: HFTX-T6A
- Plate Type: Flatbed Printer
- Printhead: epson TFP
- TYPE: Inkjet Printer
- product name: HUAFEI Industrial Garment DTG Printer
Specifications
TX-T6A/10A Direct to Garment Printer
Descriptions:
Double CMYK design are with higher efficiency for light garment printing.this Apparel printer is mainly chosen by Screen Printing factory, Branded Clothing Company, Designer, Fashion Company etc. It is up to 140 pcs of light garments per hour.
1. Features:
1) 2.64 inch width Epson PrecisionCore Micro TFP Printhead.
Design for high production----2.64 Inch width printhead with 800 nozzles per color, 8000 high performance nozzles in all.Delivers best-in-class continuous tone image quality at production level print speeds |
2) Double CMYK and higher efficiency for light garments.
3)up to 140 pieces of light garments per hour!
4) Garment & Cutting Pieces & Grand Cutting Pieces, wider application.
Pallets: Standard: 350mm*400mm ( women size ) Options: 380mm*480mm ( men size ) 250mm*300mm ( Children size ) 1700mm*1080mm (Grand Pallet) for T6A 2400mm*1080mm (Super Grand Pallet) for T10A |
5)Patented Printing Platens, easy to use and higher efficiency
Hydraulic hinge from Japan, You can stop the frame at any angle to put on garment quickly. |
6) Quality silent ball screw, Y transmission shaft is more durable and stable.
|
2. Specifications:
Main Engine: Epson 10080 (9 colors)
Rip software: Wasatch 7.4
Printhead: 2.64 inch width Epson PrecisionCore TFP Printhead, 10*800 nozzle, VSDT
Colors: DoubleCMYK
Print Directions: Intelligent bi/single direction printing.
Speed: 6 pieces/ 2.5 minutes, 140 pieces per hour (Light garment and A4 size)
Press Weight Load: 100kg (Nondistructive of resolution)
Resolution: 2400*1200dpi
Ink:Textile pigment ink.
Media: Cotton, Cotton/polyester Blends, Lycra, Viscose, Silk, Linen, Wool and more.
Other consumables: Pretreatment solution for dark & light garments, Cleaning ink and head cleaning kit.
Height adjustment:Automatic/ manual operation
Head protection: Laser sensor automatic protection system.
Power: 110-220V, 50-60HZ, 500W
Interface: USB2.0/1.1, 1GB Ethernet, 320M memory
Computer System: Windows XP/ Win7, Mac, Linus
Working Environment: Temperature: 15-35℃, Humidity: 20-80RH
Size and Weight: T6A: Printer: 2860X1870X1200MM, 375kg
Package: 2900X1970X1430MM, 430kg
T10A: Printer: 3760X1870X1200MM, 500kg
Package: 3850X1970X1430MM, 610kg
Printing Pallets:
Standard: 350mm*400mm (women size):
Other options: 380mm*480mm (men size)
250mm*300mm(Children size)
1700mm*1080mm (Grand Pallet) for T6A
2400mm*1080mm (Super Grand Pallet) for T10A
