ACREL Clean Power Solution for Medical IT Distribution System GGF-I3.15
| FOB Price: | 5496.00 - 6000.00 USD/Piece |
|---|---|
| Supply Ability: | 80,000 Piece(s) per Month |
| Shipping: | arishipping |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy, Other |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | paper carton bag |
Quick Details
- Brand Name: ACREL
- Rated Voltage: ac 220v
- application: hospital IT insulation
- Material: ppgi
- name: hospital isolated power system supply for medical insulation
- Model Number: GGF-I3.15
- Rated power: 3.15KVA
Specifications
Product Description

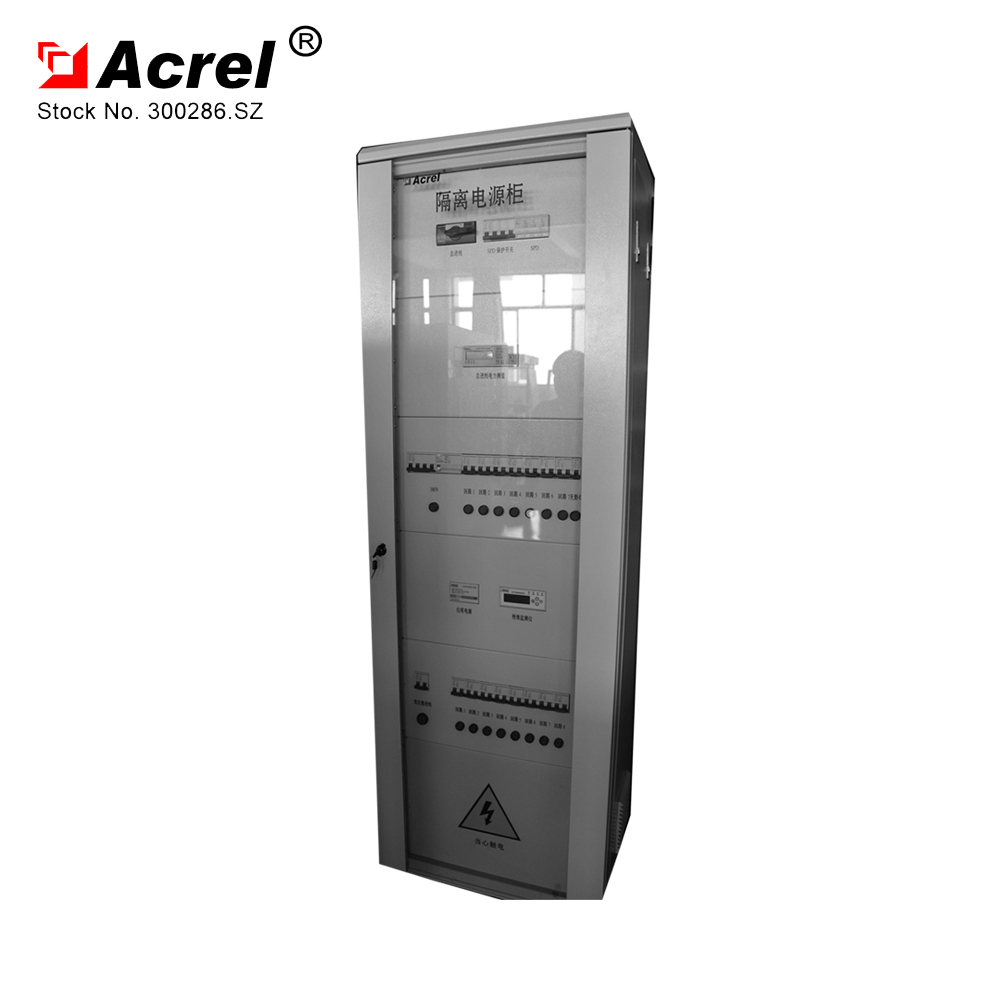

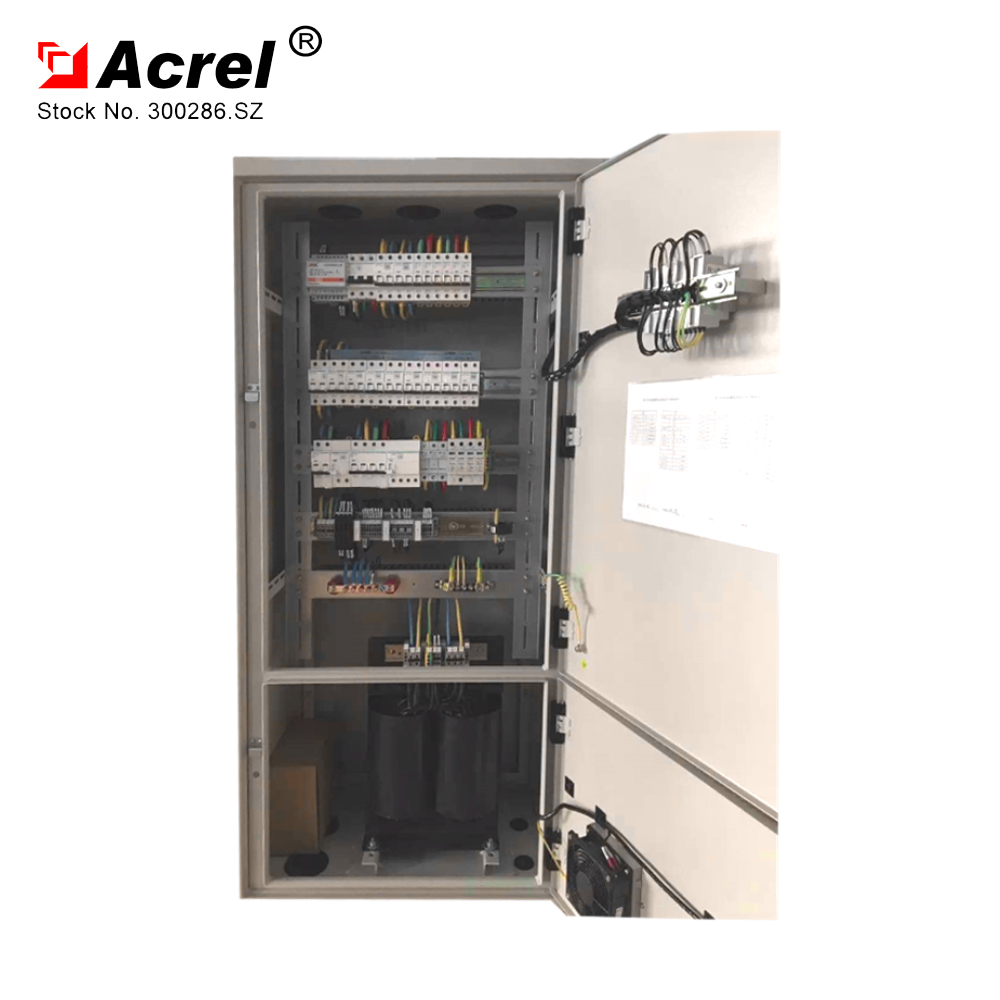

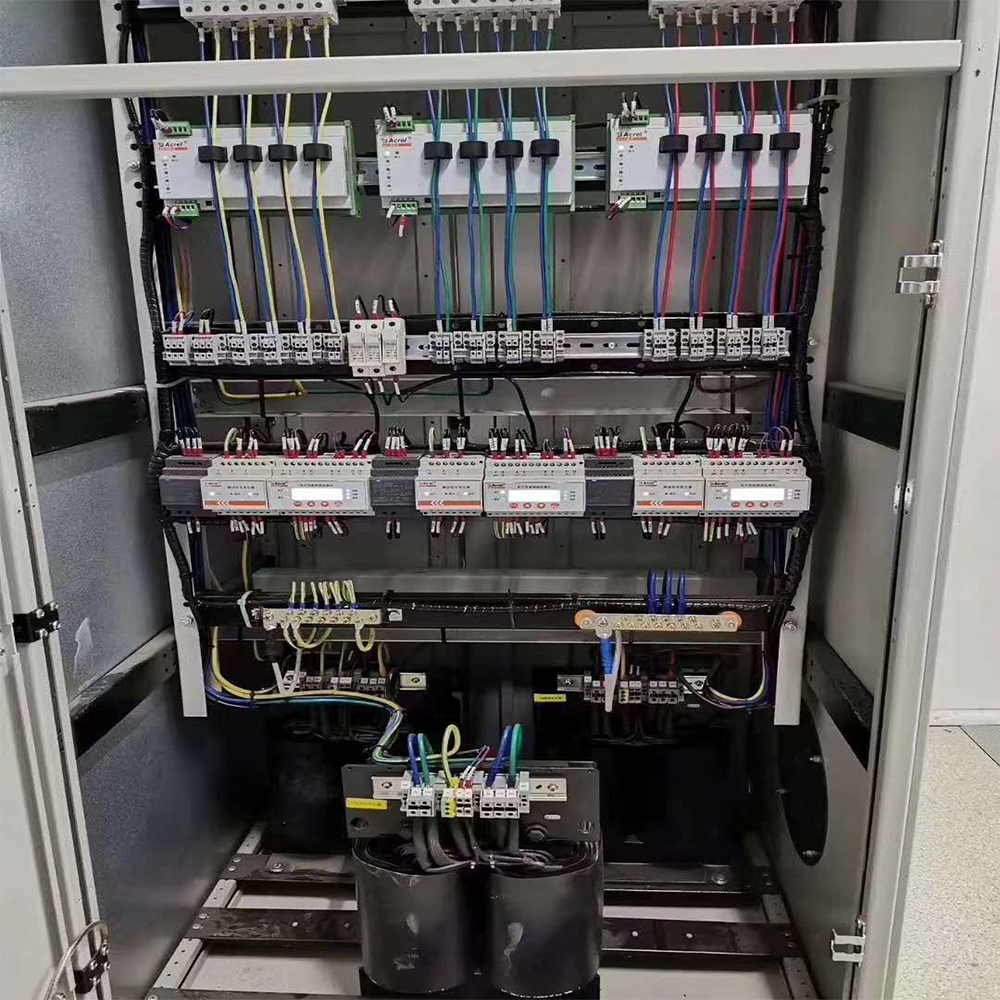

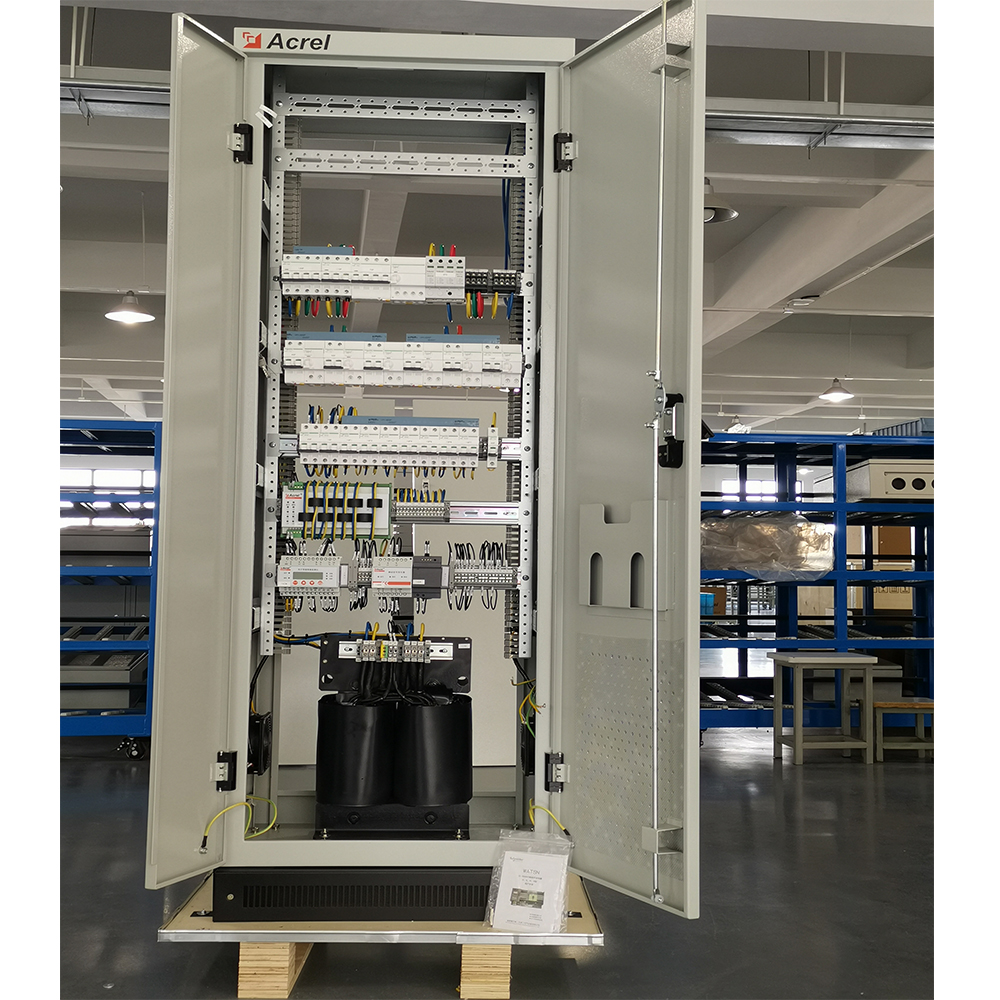

Product DescriptionGGF Series Isolation Power Cabinet
General
Hospital isolated power system supply for medical insulation failure assess Medical isolation power supply cabinet is the distribution box which has the local IT systems. It is designed for the power supply demand of medical Class 2 places. IT systems installed insulation monitoring device to monitor the condition of the insulation of the system, the output circuit breaker with short circuit protection, other system output circuit breaker leakage protection. IT insulated isolation cabinet has two categories depend on the use of premises.The first one is GGF-O series which is use for operating room.The second one is GGF-I series ICU/CCU, etc. Which is used for ward.IT insulation isolation cabinet can well meet the various operating room and intensive care unit of the power supply safety and reliability requirements.
Function Description
| Designed for medical IT systems.
Built-in PT100 temperature sensors.
Low noise level < 40dB..

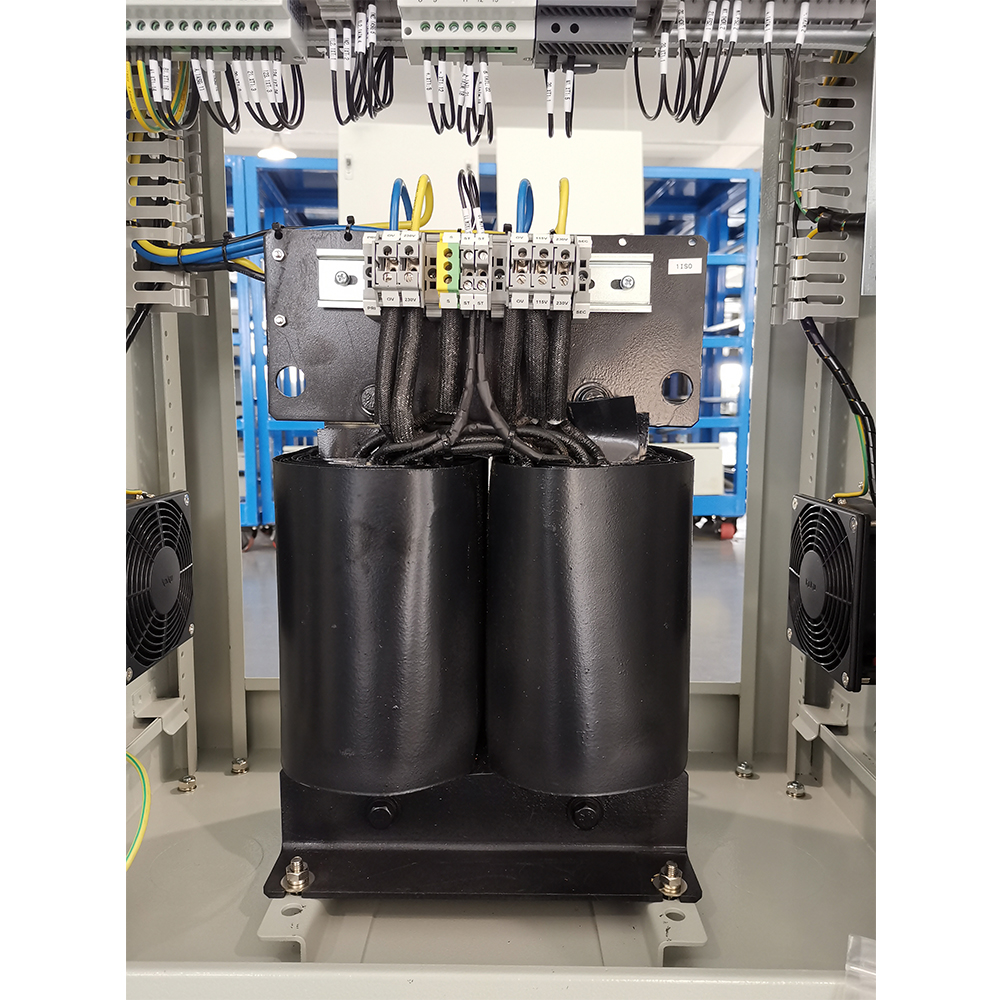

Screen winding with brought-out insulated connection terminal.
Inrush current < 12In.
Degree of protection, IP00(open design).
Reinforced insulation, and the windings are galvanically isolated |
Technical Parameter
| Rated power | 3.15kVA |
| Frequency | 50/60Hz |
| Rated input voltage | 230V |
| Output voltage | 230V/115V |
| Dash current(IE) | <12In |
| No load output voltage(UO) | <235V |
| No load input voltage(IO) | <3% in |
| Short-circuit voltage | <3% Un |
| Effiency | >96% |
| the highest enviroment temperature | <40℃ |
| No load temperature rise | <33℃ |
| Full load temperature rise | <76℃ |
| Withstand voltage | 4200V/min |
| Insulation class | H |
| Noise class | <40dB (A) |
