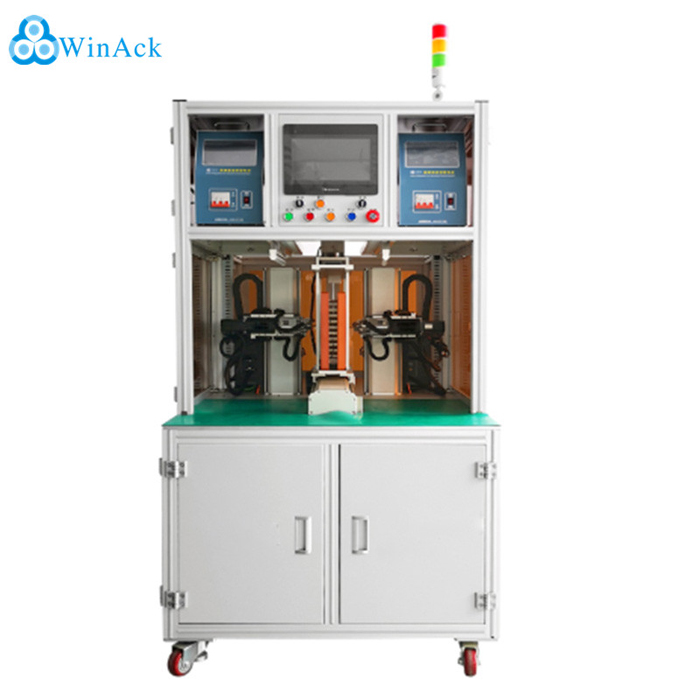

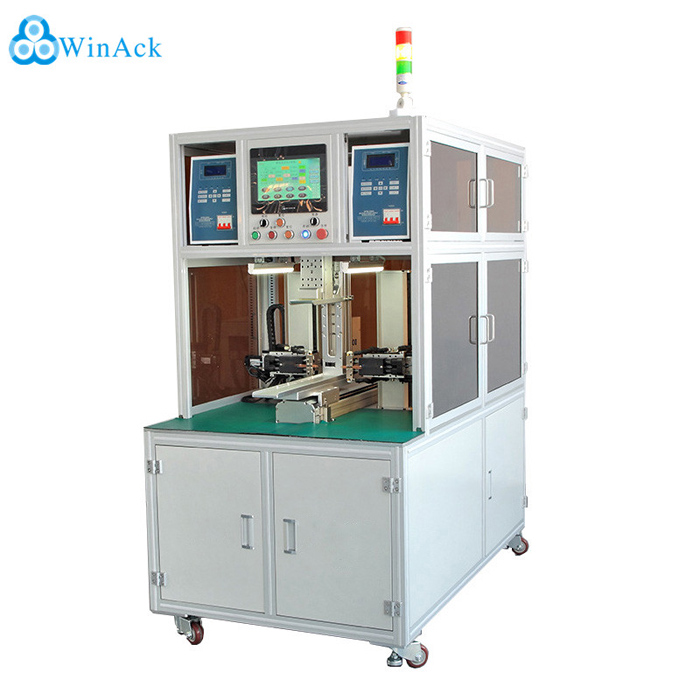

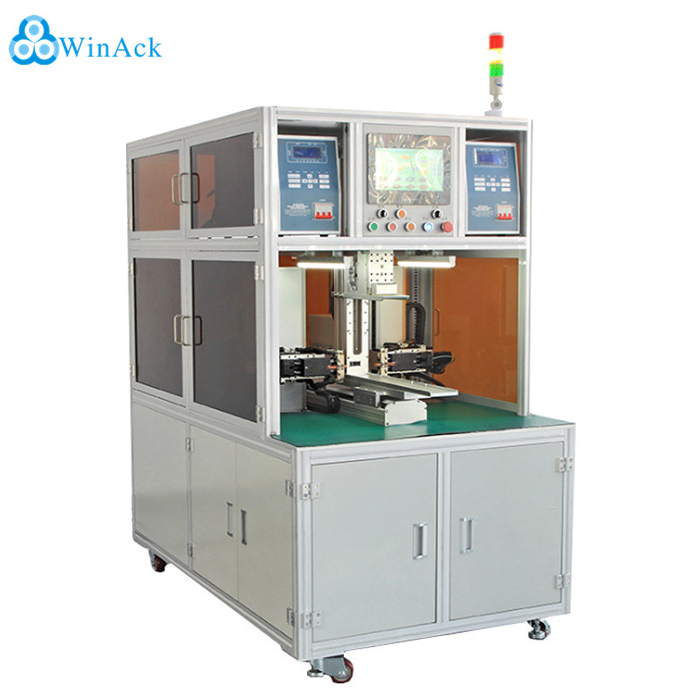

18650 Battery Pack Spot Welder for Lithium-Ion Battery Pack Spot Welding

FOB Price:	15000.00 - 69000.00 USD/Unit
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, Eastern Europe, Southeast Asia, Mid East, Eastern Asia, Western Europe
Place of Origin:	Fujian in China

Quick Details

Certification: CE
Voltage: 220V
Usage: Follow the instruction manual
Weight: About 240kg
Brand Name: WinAck
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 Year
Power(W): <2500 W
Dimensions: 1500*900*1690mm
Max. Welding Thickness: 0.3mm
Rated Capacity: 3800PCS/Hour
Model Number: WA-SW-200R
Condition: New

Specifications

Product description:

the machine is Suitable for fully Automatic 18650 battery spot welding machine for 18650 battery pack double-sided Welding, the highly automated Human-machine interface makes it easy to operate. Our own welding current monitoring System can monitor the welding current in real time, effectively solving the Problems of virtual welding and missing welding. through Manual loading and simple settings, it can weld both sides Together with high speed and good effect, and To ensure that the welding tension band or nickel between the battery and the nickel Strips is greater than 30N.

Scope of application:

Fully Automatic 18650 battery spot welding machine for 18650 battery pack Double-sided welding, it is suitable for electric Bicycle batteries, power battery and energy storage battery

Automatic Cylindrical Cells Double Sides Spot Welding Machine Characteristic:

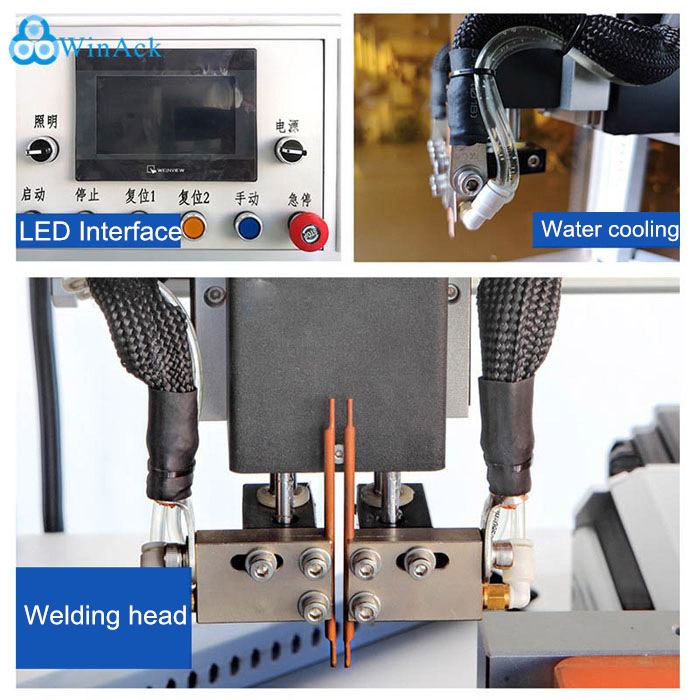

1. One Key calibration function can be used to calibrate the overall deviation of the Solder joint. this function can be used to correct spot position deviations due to replacement of welding needles or other reasons.

2. the Spot welding is more efficient, and the double-sides spot welder can reach 3800 Pcs/hour.

3. Support Breakpoint startup, automatic startup and manual startup mode conversion.

4. the Core accessories are imported fromJapanandTaiwan. the accuracy, stability and service life of the whole machine are more than Twice that of other domestic accessories.

5. Welding Needle compensation function Water-cooled heat dissipation system, reducing the loss of welding needles.

6. Welding Needle replacement forecast reminder.

7. We Can provide different welding machines according to the different requirements to effectively meet the needs of customers.

Device parameters

Name	Automatic Battery Double-sides Spot Welding Machine
Model	WA-SW-200R
Power supply	220V±10% / 50Hz±10%
Power	<2500 W
Thickness of flat welding nickel sheet	0.12-0.3MM
Welding speed of nickel sheet	0.7-0.8S/PCS
Production efficiency	3800PCS/Hour
Y-axis Travel	560MM (Customizable)
Z-axis Travel	340MM (Customizable)
Spring pressure adjustment	1.0-0.5KG
Welding source	Need to be allocated
Operating system	Embedded motion control system & Human-machine interface
Size(LWH)	15009001690mm

Equipment configuration

Serial number	Spare parts	Brand
1	Servo motor	Panasonic
2	Stepper motor	Leadshine
3	Solenoid valve	SMC / Airtac
4	Support base	NSK
5	Linear guide rail	TouchWin
6	Power Supply	MEAN WELL
7	Inductorium	OMRON/SUNX
8	Pushbutton switches and indicators	GONCON
9	Electric relay	DELIXI ELECTRIC
