Easy Installation Hand Held Ultrasonic Mini Water Oil Flow Meter GMF200-H

FOB Price:	200.00 - 500.00 USD/Piece

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: HCATM
Accuracy: 1%
Power Supply: Ni-MH
output: 4-20mA
Medium: Liquid
Model Number: GMF200-H
Pipe size: DN15-DN6000mm

Specifications

Easy installation Hand Held Ultrasonic Mini Water Oil Flow Meter GMF200-H

Product Overview

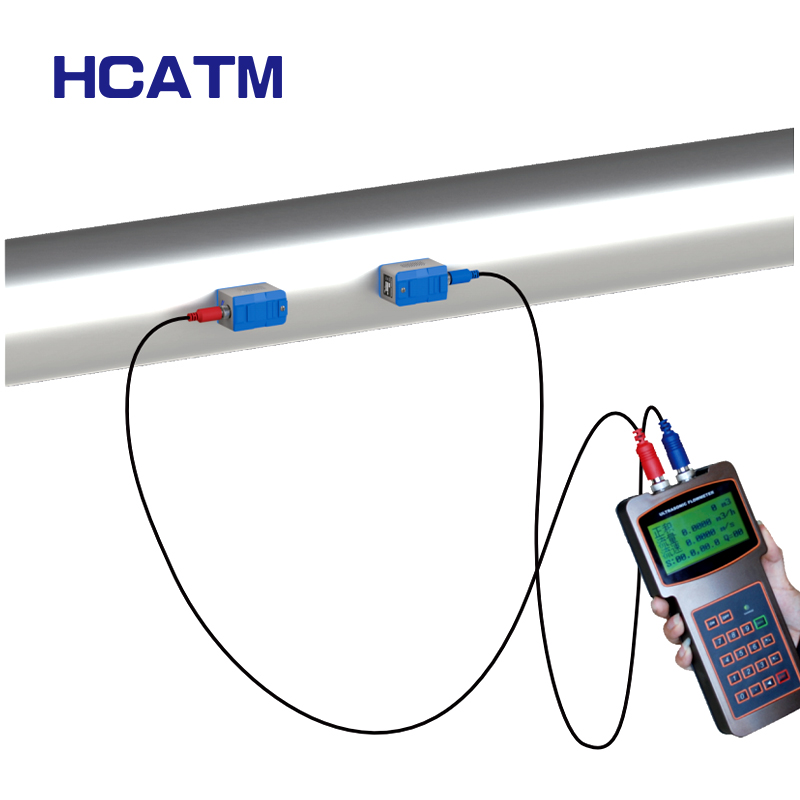

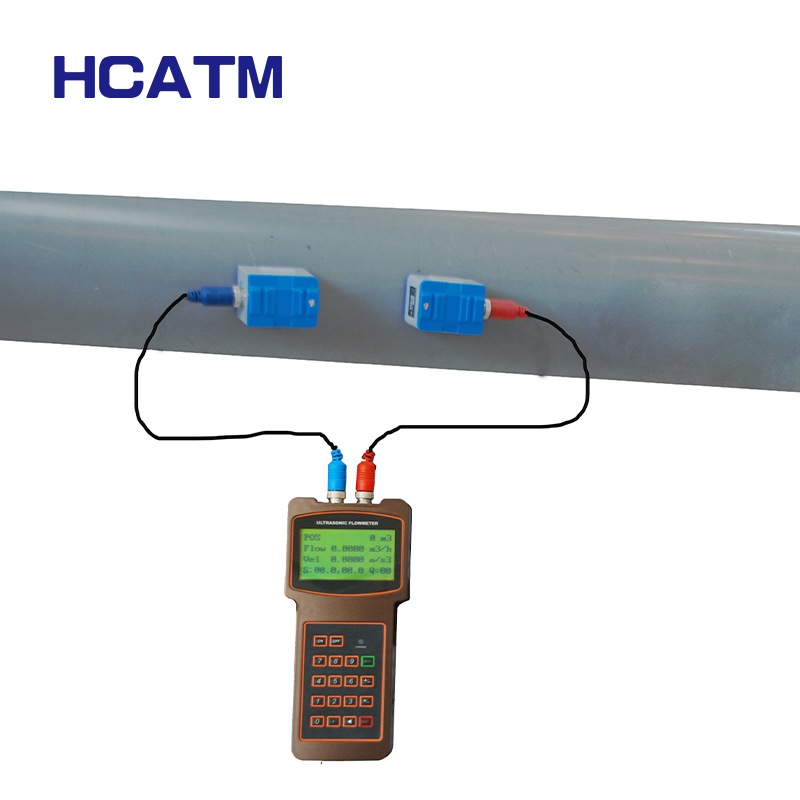

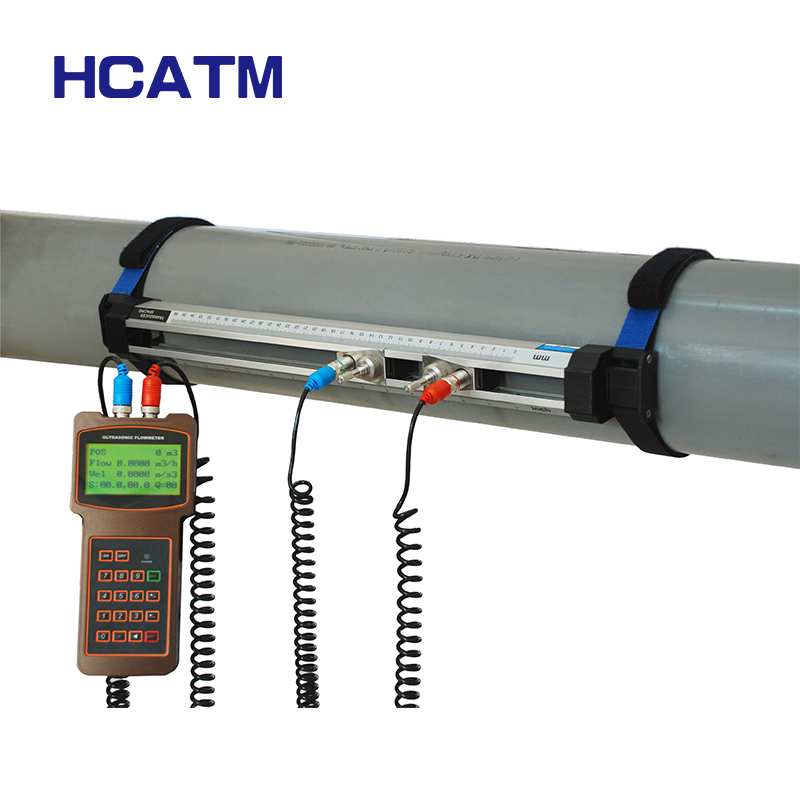

GMF200-H series hand-held ultrasonic flowmeter realizes non-contact measurement of liquid flow. Install the sensor on the outer wall of the pipe to complete the flow measurement. with small size, easy to carry, accurate measurement and so on.
Widely used in tap water, heating, water conservancy, metallurgy, chemical, machinery, energy and other industries. It can be used for production monitoring, flow calibration, temporary detection, flow inspection, water meter balance debugging, heating network balance debugging, and energy saving monitoring. It is a necessary tool for timely flow detection.

Product Parameter

Model	GMF200-H
Principle	Ultrasonic time difference principle
Precision	±1%
Display	4x8 Chinese or 4x16 Western dot matrix backlit LCD, supporting Chinese, English, Italian and French languages
Output	1 channel OCT pulse output (pulse width 6-1000ms, default 200ms)
Data interface	Isolating the RS-232 application interface, the flow meter can be upgraded through a PC
Pipe	Steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, and other dense pipes, allowing lining
Pipe inner diameter	15-6000mm
Straight pipe	the sensor installation point is best to meet: upstream 10D, downstream 5D, from the pump outlet 30D (D is the pipe diameter)
Medium	Water, sea water, sewage, acid and alkali, alcohol, beer, various oils, etc.
Fluid temperature	-30~+160°C
Turbidity	1000pmm bubble content is small
Flow rate	0±10m/s
Working environment	Host: -20 ~ +60 ° C; flow sensor: -30 ~ +160 ° C
Working environment	Host: 85% RH; sensor protection grade: IP67
Power supply	3-cell rechargeable Ni-MH battery with 1.2V capacity of 2000mAH, which can work continuously for more than 12 hours every time.
Power consumption	1W
Housing material	Flame retardant ABS
Host weight	390g
