Quick Details
- Brand Name: HCATM
- Accuracy: 1%
- Power Supply: DC8~36V
- output: 4-20mA
- Medium: Liquid
- Model Number: GMF200-B
Specifications
Product overview

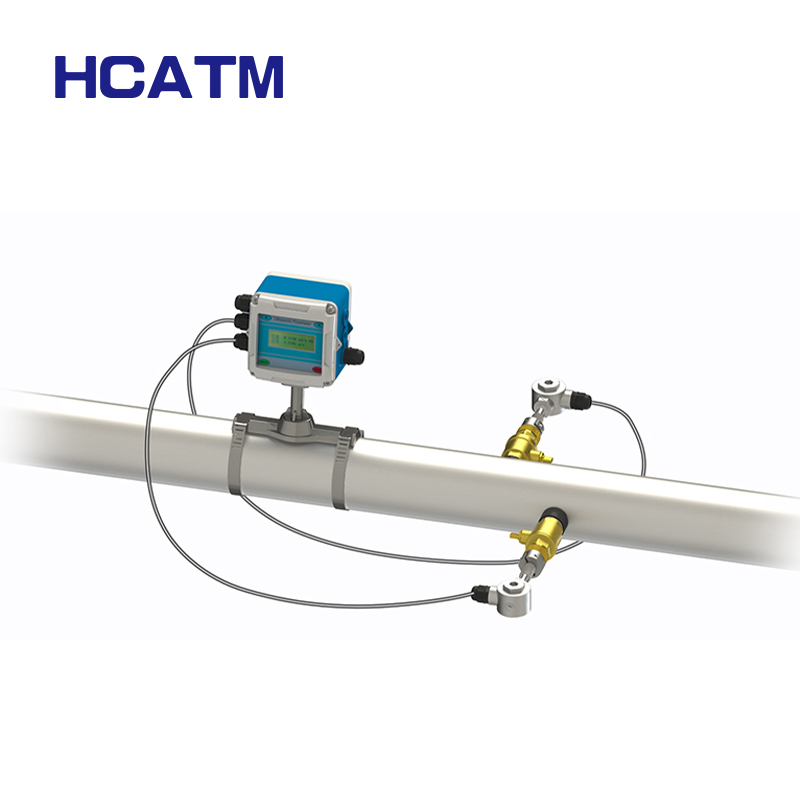

Plug-in ultrasonic flowmeter is composed of a main body and an external clip type sensor. Simply attach the clip-on sensor to the surface of the pipe to complete the flow measurement of various liquids. Compared with the traditional flow meter, it does not need to cut off the tube, and the installation is quick and convenient, realizing the non-destructive installation.
the main unit can be installed in the wall, instrument box and distribution box, and the protection level can reach IP67. the plug-in sensor is installed on the surface of the pipe, and different sensors are selected. the applicable diameter is DN50~DN6000.
Technical parameters
Working environment
|
Host |
Sensor |
Protection level |
IP67 |
IP68 |
Humidity |
≤85%RH | |
Temperature |
-20℃-60℃ |
-30℃-160℃ |
Basic parameters
Accuracy |
±1% |
Flow velocity |
0~±10m/s |
Pipe diameter |
DN50-DN6000 |
Fluid temperature |
-30℃-160℃ |
Fluid type |
Water, sea water, industrial sewage, acid and alkali, alcohol, beer, various oils and other single homogeneous liquids that can conduct ultrasonic waves. |
Pipe material |
All dense pipes such as steel, stainless steel, cast iron, steel, PVC, aluminum, and glass reinforced plastic are allowed to be lined. |
Signal output |
1 channel 4-20mA current output, impedance 0-1K, accuracy 0.1% (optional) 1 channel OCT pulse output (pulse width 6-1000ms, default 200ms) 1 channel Relay output |
Signal input |
3 channel 4-20mA current input, A three-wire PT100 platinum resistor can be connected for thermal measurement. |
Communication Interface |
Isolated RS485 serial interface, support MODBUS protocol |
Data storage |
SD card timing storage setting parameters and measurement results (optional) |
Power supply |
DC8~36V or AC85~264V |
