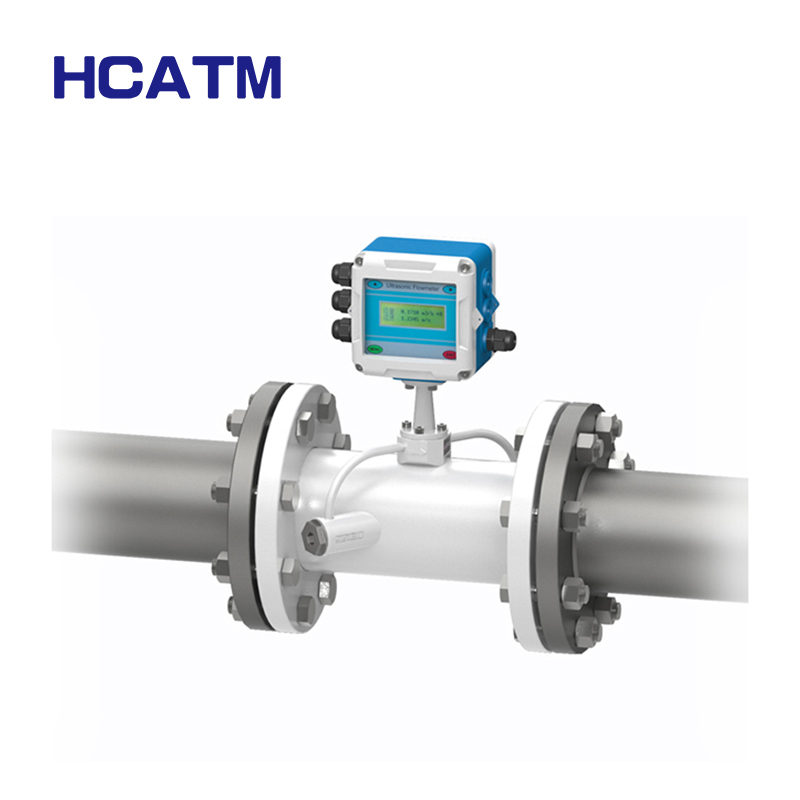

GMF200-D Explosion-Proof Pipe Type Ultrasonic Flowmeter

FOB Price: 200.00 - 500.00 USD/Piece
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy
In Stock

Related products from verified members

Quick Details

  • Brand Name: HCATM
  • Accuracy: 1%
  • Power Supply: DC8~36V
  • output: 4-20mA
  • Medium: Liquid
  • Model Number: GMF200-D

Specifications

Product overview

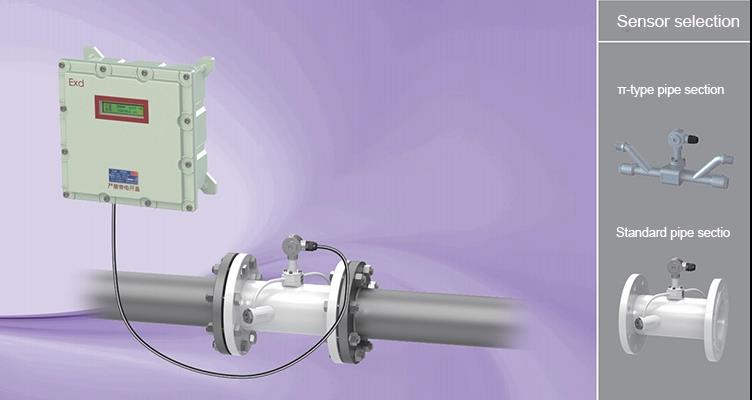

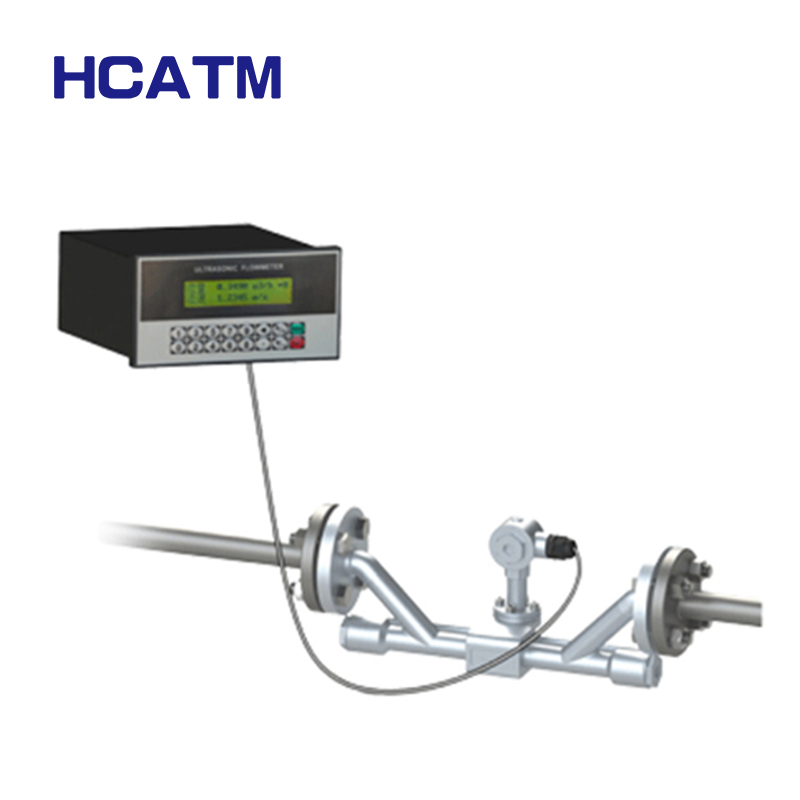

Pipe type ultrasonic flowmeter is composed of a main body and a pipe segment type sensor. the DN15-DN32 uses a π-type pipe segment sensor, and the DN40 and above uses a standard pipe segment sensor. the pipe-type ultrasonic flowmeter has the advantages of simple installation, low starting flow, high measurement accuracy, and no pressure loss.

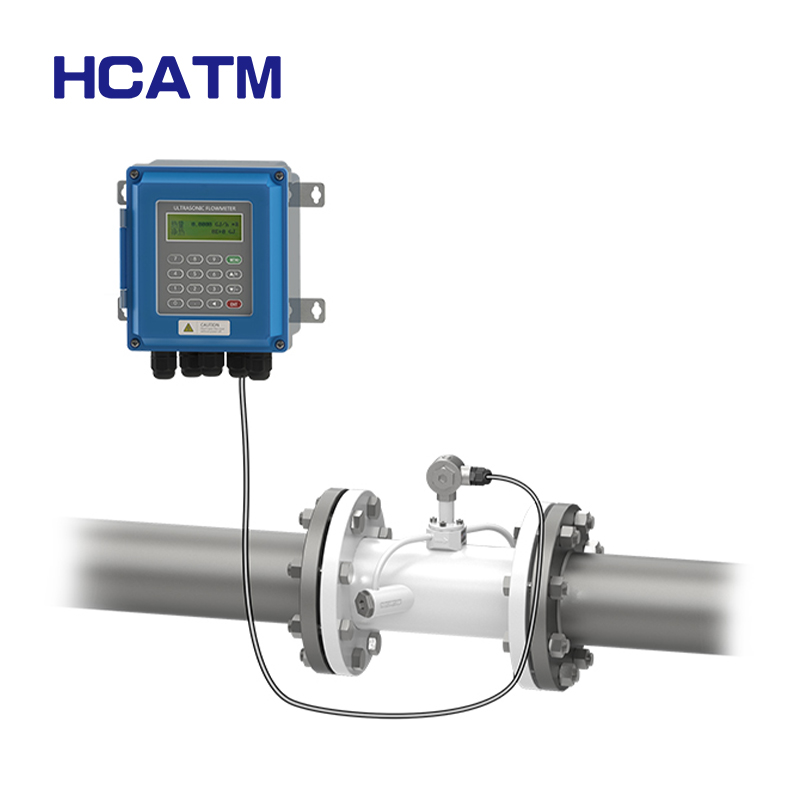

the main unit can be installed in the wall, instrument box, and distribution box with a protection level of IP67. the external clip sensor is installed on the surface of the pipe and selects different sensors. the applicable diameter is DN15~DN6000.



Technical parameters



Working environment



Host

Sensor

Protection level

IP65

IP68

Humidity

≤85%RH

Temperature

-20℃-60℃

-30℃-160℃



Basic parameters

Accuracy

±1%

Flow velocity

0~±10m/s

Pipe diameter

DN15-DN6000

Fluid temperature

-30℃-160℃

Fluid type

Water, sea water, industrial sewage, acid and alkali, alcohol, beer, various oils and other single homogeneous liquids that can conduct ultrasonic waves.

Pipe material

All dense pipes such as steel, stainless steel, cast iron, steel, PVC, aluminum, and glass reinforced plastic are allowed to be lined.

Signal output

1 channel 4-20mA current output, impedance 0-1K, accuracy 0.1% (optional)

1 channel OCT pulse output (pulse width 6-1000ms, default 200ms)

1 channel Relay output

Signal input

3 channel 4-20mA current input,

A three-wire PT100 platinum resistor can be connected for thermal measurement.

Communication Interface

Isolated RS485 serial interface, support MODBUS protocol

Data storage

SD card timing storage setting parameters and measurement results (optional)

Power supply

DC8~36V or AC85~264V

Product details


GMF200D Explosionproof pipe type ultrasonic flowmeter
