Middle Range Reading Distance >50cm LF 134.2Khz RFID Reader with RS232 Interface

FOB Price:	100.00 - 165.00 USD/Piece
Supply Ability:	1,000 Unit(s) per Month
Shipping:	shipment at Shenzhen, Ex Works, lead time: 3-12days
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now Start Order

Product Details

Export Markets:	South America, Eastern Europe, Southeast Asia, Oceania, Eastern Asia
Place of Origin:	Shenzhen in China
Packaging Details:	each one packed in one box, box size: 30305cm 10boxes in one carton, carton size: 513230cm

Quick Details

Brand Name: Koten
Card type: RFID contactless
Communication: RS232

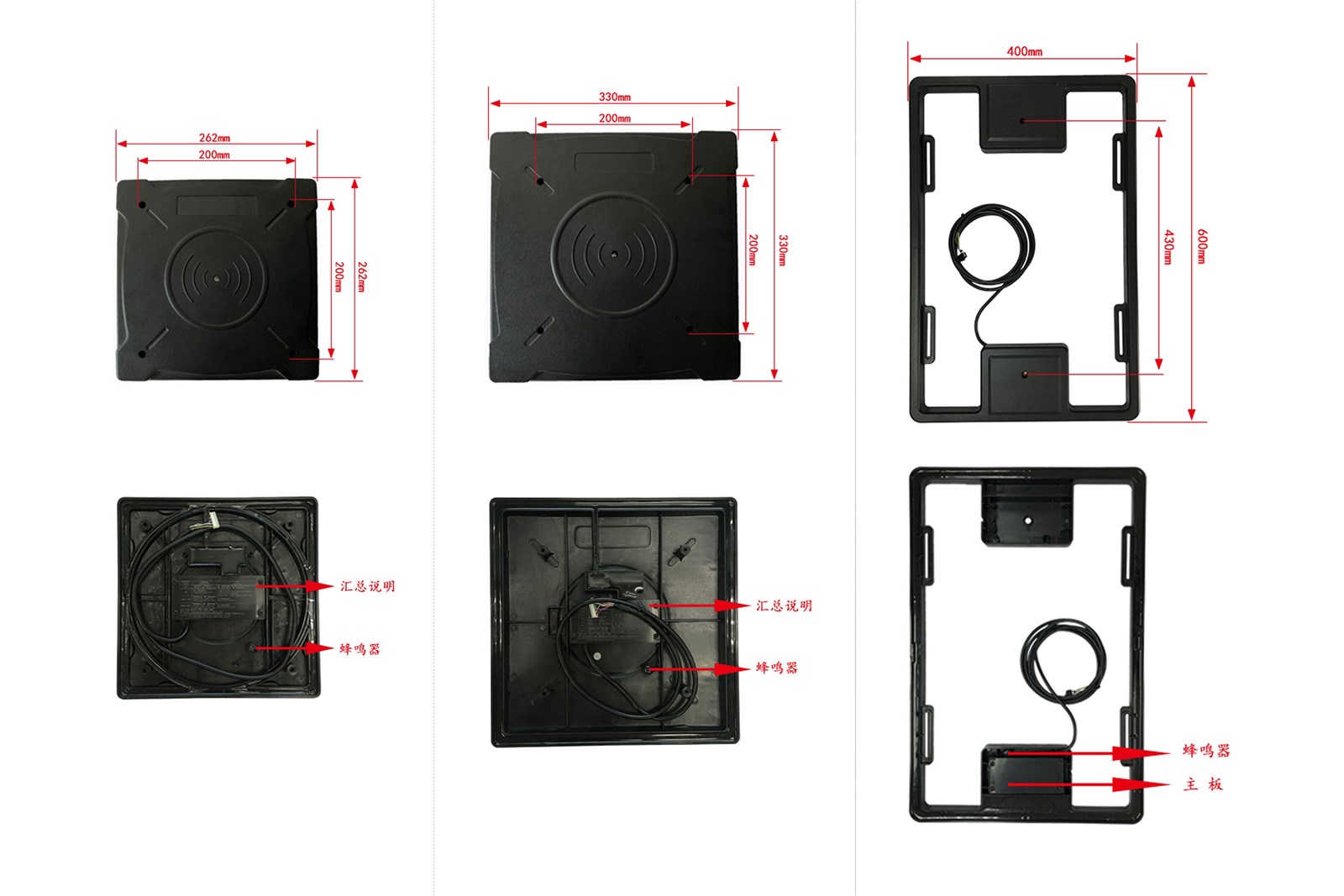

Dimension: 262X262X20mm
Frequency: 134.2Khz
Model Number: RC134
NW: 0.9Kg
reading range: >50cm

Specifications

RC134 is a long range contactless induction type reader which frequency is AM 134.2KHZ, it is a reader that designed to obtain the information that conforms to the ISO11784/11785, can output through WEIGAN 42, 50 or RS 232 directly. after got the information then outputting through DATA0, DATA1 and RS232 and nonstop to output, every data just need send out for 400ms.

IProduct specification:
Type: RC134
Operating frequency: AM 134.2KHz
Induce range: accompany with SMC-13434 Ear tag, the range up to 50cm±10%
Weight: 900g ± 2%

IITechnical Parameter:
Operating voltage: Vcc = 9V
Consumption currency: Max: 200mA(9V)
Antistatic ablity: ±4KV peak
Operating temperature: -20℃60℃
Storage Temperature: -20℃60℃
Storage Humidity: 10%90% RH

III the advantage of RC134:
in the present market, the quality erratic is the most serious problem, after a period use, the induce range will shorter apparently or no reaction, this course a great trouble to building maintenance and uses.
R134 takes stability, use life and anti-jamming as the most important criterion, in order to guarantee the quality, every machine need high temperature exam up to 72 hours when manufactured.
Regarding power supply, R134 adopt DC-9V not DC-12V, it can avoid damage the component, although, DC-12V has longer readable range but the accordingly item use life will be shorter and the quality is erratic.
It has strong Anti-stable electrical up to±4KV peak

Middle range reading distance 50cm LF 1342Khz RFID Reader with RS232 Interface
