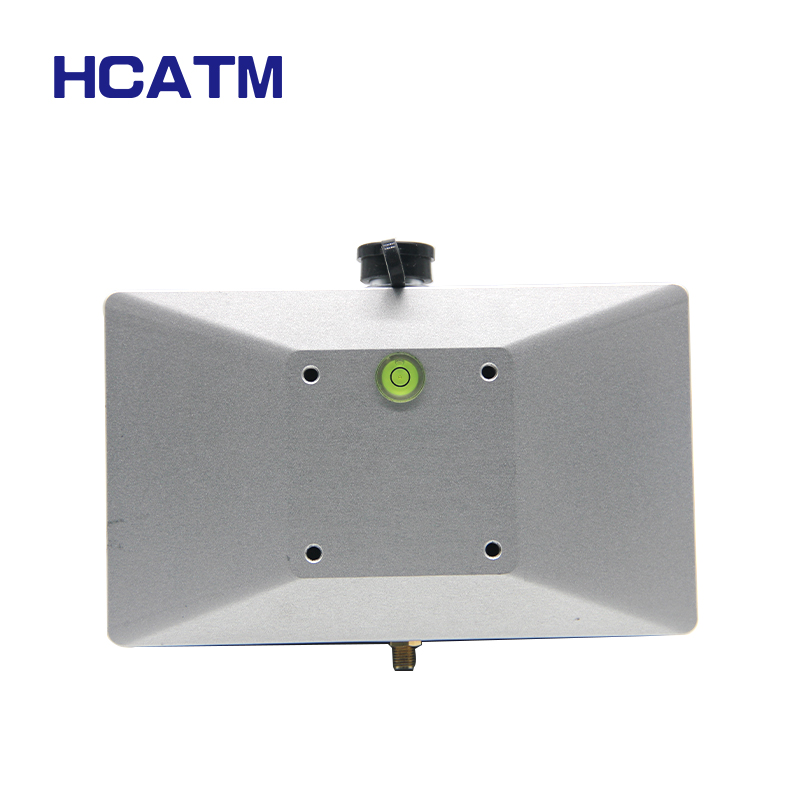

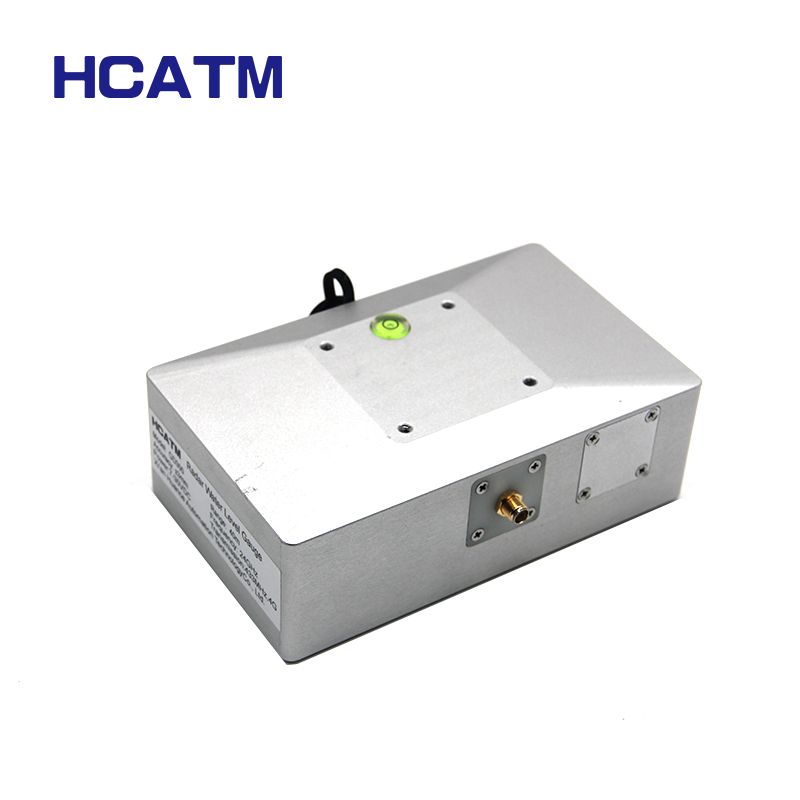

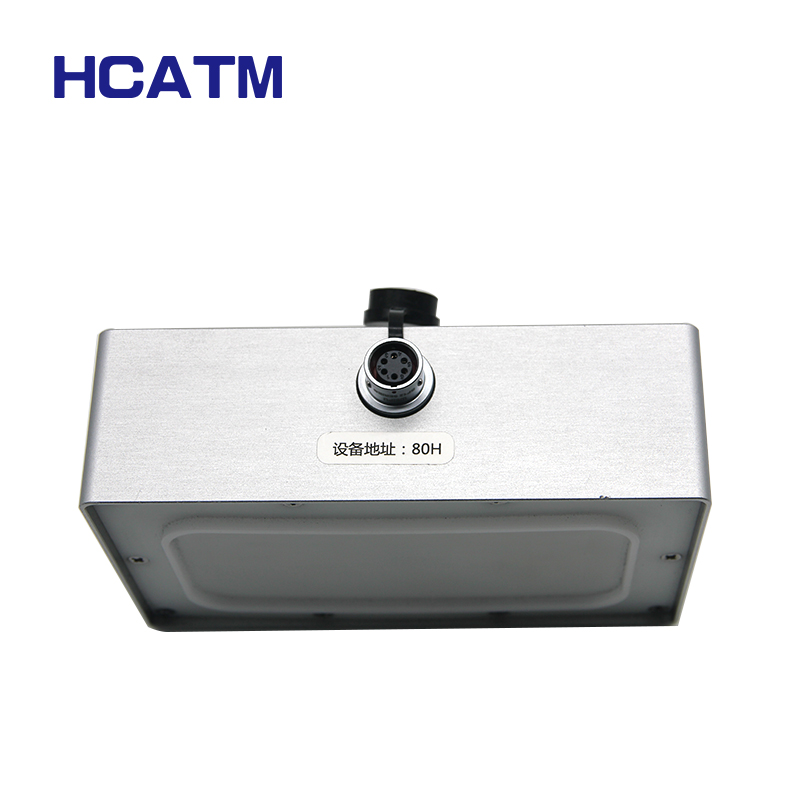

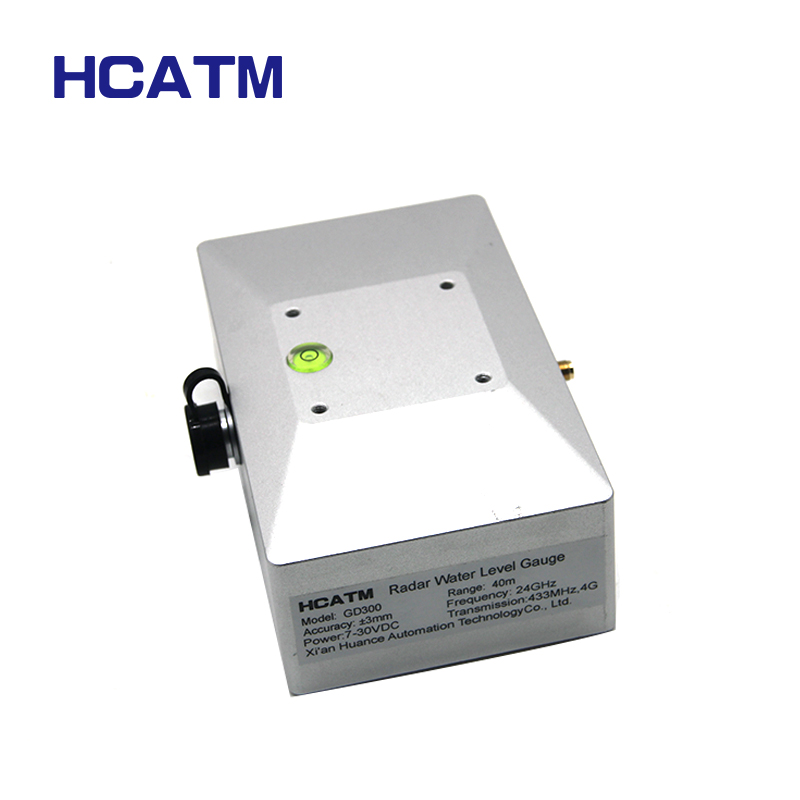

GD-300 Compact & Lightweight 4-20mA Output IP68 24GHz RS485 (Default) RS232 MODBUS Protocol Radar Water Level Gauge

FOB Price:	1000.00 - 2000.00 USD/Piece

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: HCATM
Accuracy: 3mm
Material: 316L
Measuring range: 40m
display color: LCD
Model Number: GD-300

Specifications

Product Overview

GD-300 is a non-contact flat weight gauge for surface water level measurement. It uses frequency modulation continuous wave radar (FMCW) technology to measure the liquid level. this makes the RD-300 unaffected by temperature gradients, water vapor, water pollutants, and sediment during measurement. the optimized algorithm can make the measurement results more accurate. Compared with the traditional pulse horn type water level gauge, it has the characteristics of small size, convenient installation and small maintenance.

Product Parameter

Measuring range	40m
Accuracy	±3mm
Radar antenna	Planar microstrip array antenna
Measurement Duration	0-180s, can be set
Measurement Interval	1-18000s adjustable
Radar frequency	24GHz
Angle	12°
Operating Voltage	7 ~ 32VDC; 5.5 ~ 32VDC (optional)
Working current	≤90mA; sleep ≤1mA
Operating temperature	-35°C-70°C

Product Details

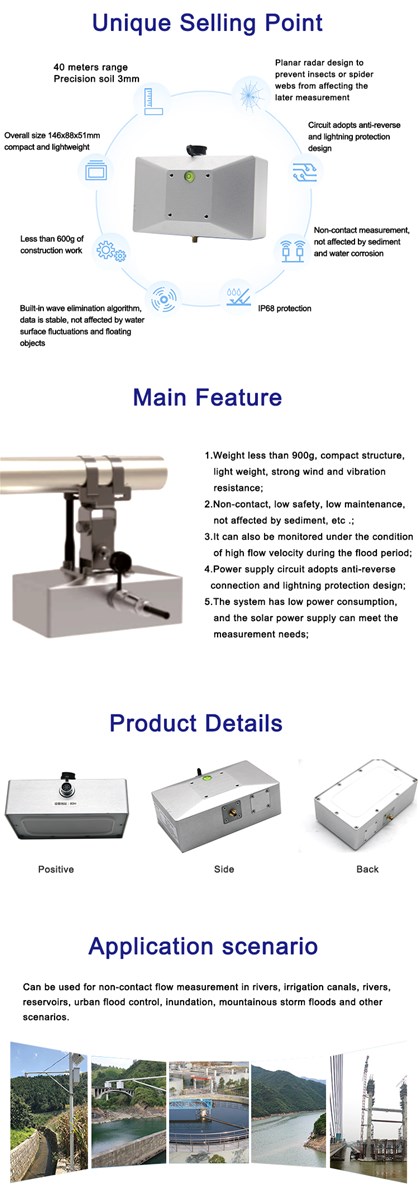

GD300 NonContact Plane Radar Water Level Gauge
