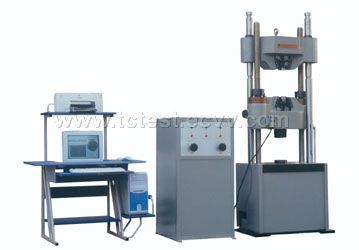

Hydraulic Universal Testing Machine

Specifications

Screen Display type Hydraulic Universal Testing Machine Model: WEW-600 Max Load: 600 kN Load range: 12-600 kN Load test accuracy: PN1% of reading Deformation Test accuracy: PN0.5% F.S. Max Tension Space: 700 mm Max Compression Space: 600 mm Clamping Diameter of Round specimen: 13-40 mm Camping Width of Flat Specimen: 70 mm Camping Thickness of Flat Specimen: 0-30 mm Platen Size: Ф180mm Diameter of Shearing specimen: φ10mm Piston Stroke: 250 mm Power supply: 380V±10%, 50HZ Host machien Dimension: 905?580?2325(mm) Control Box Dimension: 600?600?1165(mm) Weight: Host machine: 1800 kg Control box: 200 kg Application Mainly used for tension, compression, bending and shearing test of metal materials, and also be used for tension and compression test of nonmetal materials, such as cement and concrete.
