Gabion Welded Box for Sale China

FOB Price:	1.50 - 2.00 USD/Square Meter
Shipping:	PALLETS or in bulk
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Packaging Details:	PALLETS or in bulk

Quick Details

Technique: Crimped
Hole Shape: Hexagonal
Material: wire mesh
Application: Gabion
Brand Name: zhuanye

Specifications

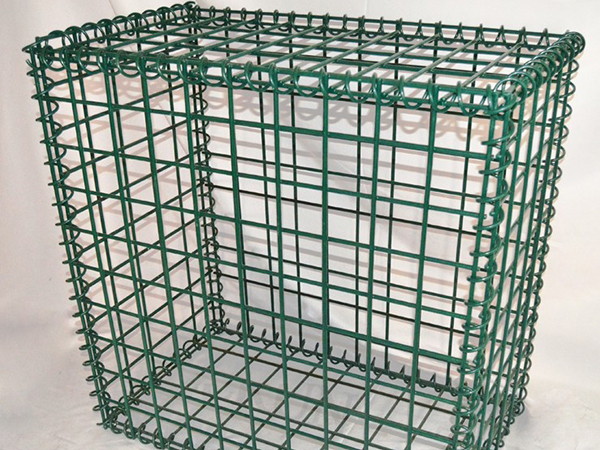

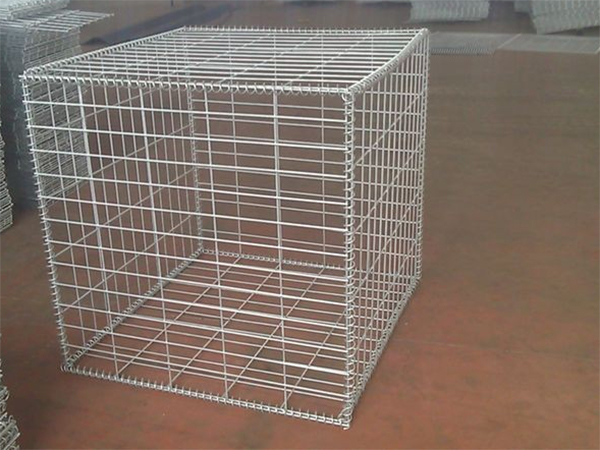

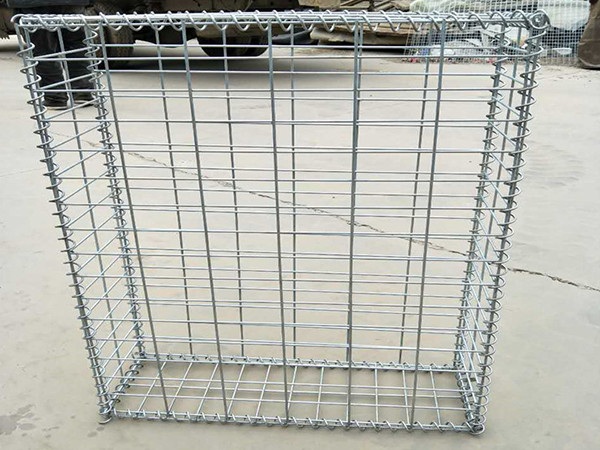

Gabion Welded Box for sale China

Gabion welded Box is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. in order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion boxes be divided into cells by diaphragms at every 1 meters.

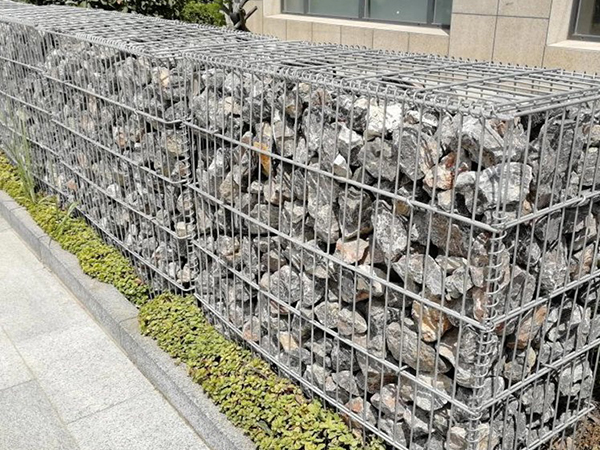

Welded gabion is high quality steel mesh.They can be filled on site with hard durable stone materials to form mass gravity retaining structures.Owing to their inflexibility.Welded gabions can not adapt to differential settlement or be used in water comparison with woven wire gabions,welded gabions offer a higher order to meet different project requirements,various wire diameters and unit sizes are available for welded gabion boxes.

Specification:

Material	Galvanized steel Wire,galfan wire/zinc-aluminum wire
Application	Garden
Hole Shape	Square
Wire Gauge	3.0-8.0mm
Surface treatment	Galvanized PVC coated
Aperture	55cm 510cm 10*10cm.Ect

Aperture (mm)	Wire Diameter (mm)	Wire Diameter(PVC Coated) Inner/outside(mm)	Strands
60x80	2.0-2.8	2.0/3.0-2.5/3.5	3
80x100	2.0-3.2	2.0/3.0-2.8/3.8	3
80x120	2.0-3.2	2.0/3.0-2.8/3.8	3
100x120	2.0-3.4	2.0/3.0-2.8/3.8	3
100x150	2.0-3.4	2.0/3.0-2.8/3.8	3
120x150	2.0-4.0	2.0/3.0-3.0/4.0	3

Length	Width	Height	Diaphragm	Volume	Tolerance
2.0m	1.0m	0.5m	1	1.0m3	L+/-3%
3.0m	1.0m	0.5m	2	1.5m3	W+/-5%
4.0m	1.0m	0.5m	3	2.0m3	H+/-5%
2.0m	1.0m	1.0m	1	2.0m3
3.0m	1.0m	1.0m	2	3.0m3
4.0m	1.0m	1.0m	3	4.0m3
