316 Stainless Steel Cable Pulling Socks, Cable Pulling Grips for Wind Turbine

Specifications

Complete range of Cable socks including single eye, double eye, multi weave, lace up and open ended types for pulling and supporting all types of power, fibre, Subsea cables and umbilicals during installation.

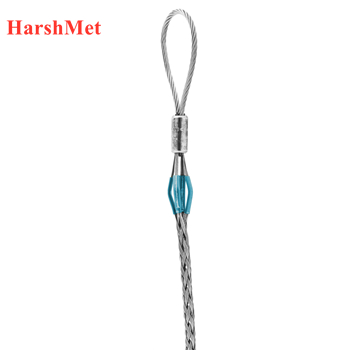

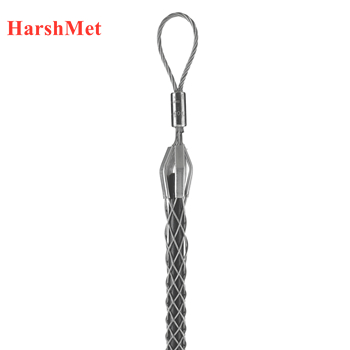

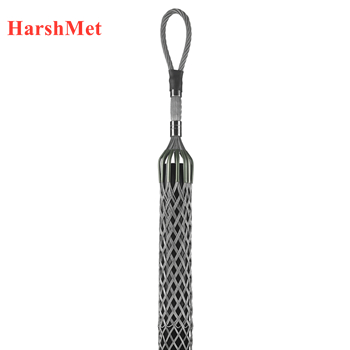

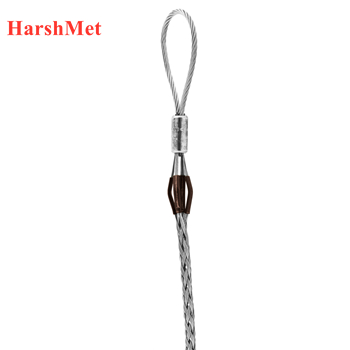

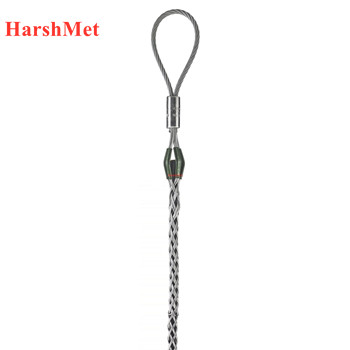

1. Single Eye Cable Sock - most common type used and attached to the LV-HV cable in the direction of the cable pull
2. Double Eye Cable Sock - can be applied at the cable end in the direction of pull or slid down the LV-HV cable if required
3. Lace-up Sock - an open type cable grip suitable for attachment MID-span around the LV-HV cable circumference at any point on the cable section

the cable sock is manually slipped on to the end of the cable and the winch rope attached.

on applying tension the sock shrinks diametrically until a firm grip is obtained onto the cable. Care must be taken when using this method to ensure that pulling tension is not excessive, otherwise sheath stretch may result.

Metallic cable socks manufactured from high tensile strength galvanised or stainless steel type 316 provide effective strain relief and temporary support during pulling and installation - specialist Aramid (non-metallic) socks are available for sub-sea, live line and cable pulling in potentially explosive atmospheres where sparking is a risk according to the ATEX Directive.

Single or double weave cable socks are available with approximate break loads up to 30,455kgs and diameter range up to 500mm.

Engineering construction standards recommend all pilot and telephone and power cables (LV, 11kV, 20kV, 33kV, 66kV and 132kV) are normally pulled in using a correctly sized cable sock securely fixed to the cable.

More difficult and complex cable pulls may require the use of a pulling eye attached directly to the cable conductors - typically used in conjunction with Cable rollers for installation LV up to 132kV underground power cables.

When hand or manual cable pulling techniques are used rather than mechanical methods such as Cable winches a correctly sized cable sock or cable stocking is applied to the cable. Typical applications include fault repair work or cable jointing on shorter LV-HV cable lengths.

Galvanised steel, stainless steel and Kevlar coated cable socks with colour coded option are available for pulling all types of heavy load pulls including MV-HV power cables and stringing overhead transmission and distribution lines - suitable for use with bare or insulated cable, conductor or wire.
