Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Fujian in China
Packaging Details:	Carton

Quick Details

Brand Name: HarshMet
material: Stainless Steel
Size: OEM
Color: Steel
Materials: 304 Stainless Steel
Model Number: HG Series

Specifications

Bus Drop Cable Support Grips, Bus Drop Support Grips

Also known as bus drop grips, these grips support cable weight and relieve tension. They also damp vibration in hanging runs of cable, rod, and tubing. You can support these grips with a hook.

Safety spring (sold separately) alleviates strain from sudden pulls, but it reduces the work load limit of the grip.
Bus Drop Support Grips

Bus drop grips are woven of galvanized steel wire/304 stainless steel wire
Relieve any direct tension from the critical connection and absorb vibration and flexing
Offered with either the single eye or locking bale attachment
Bus drop grips are used as cable support from bus duct
Optional bus drop safety spring can be used with single eye type of disassembling draw bar from coll, placing through eye loop and replacing draw bar

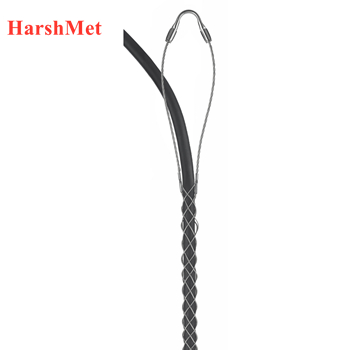

Single eye for use when cable is vertical and for applications where cable bends

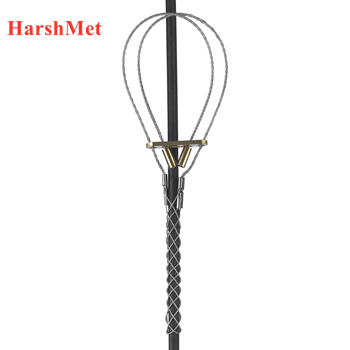

Locking bale attachment fits around beam or pipe and can be locked in place

Part Number	Cable Diameter	Bale Length	Mesh Length	Approx Break Strength
HGBD01	0.22-0.32"(5.6-8.1mm)	12"(304.8mm)	3.5"(88.9mm)	1100 lbs.
HGBD02	0.30-0.43"(7.6-10.9mm)	12"(304.8mm)	4.5"(114.3mm)	1100 lbs.
HGBD03	0.41-0.56"(10.4-14.2mm)	12"(304.8mm)	5.0"(127.0mm)	1100 lbs.
HGBD04	0.53-0.73"(13.5-18.5mm)	15"(381.0mm)	6.5"(165.1mm)	1100 lbs.
HGBD05	0.70-0.85"(17.8-21.6mm)	16"(406.4mm)	8.5"(215.9mm)	1900 lbs.
HGBD06	0.82-1.00"(20.8-25.4mm)	16"(406.4mm)	8.5"(215.9mm)	1900 lbs.
HGBD07	0.96-1.25"(24.4-31.8mm)	17"(431.8mm)	11.0"(279.4mm)	1900 lbs.
