Home >Products Catalog > Sesame Cleaner Sorting Machine Cleaning Machine Precleaner Air Screen Cleaner Double Air Screen Sesame Processing Machi

Sesame Cleaner Sorting Machine Cleaning Machine Precleaner Air Screen Cleaner Double Air Screen Sesame Processing Machi

FOB Price:	7000.00 - 9500.00 USD/Set
Supply Ability:	300 Set(s) per Month
Shipping:	1x20' container TIANJIN CHINA
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	South America, Eastern Europe, Southeast Asia, Africa
Packaging Details:	1x20' container

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 2
Type: Soybean Machinery
Brand Name: HAIDE APM
Condition: New
Certification: ISO 9001
Dimension(L*W*H): 4000*2300X3000MM
Weight: 2550KG
Power(W): 10.5KW
Voltage: 380 OR OTHER
Model Number: 5XFS-7.5FD
seed cleaner: seed cleaner
seed cleaning machine: seed cleaning machine
sesame cleaner: sesame cleaner

Specifications

Description

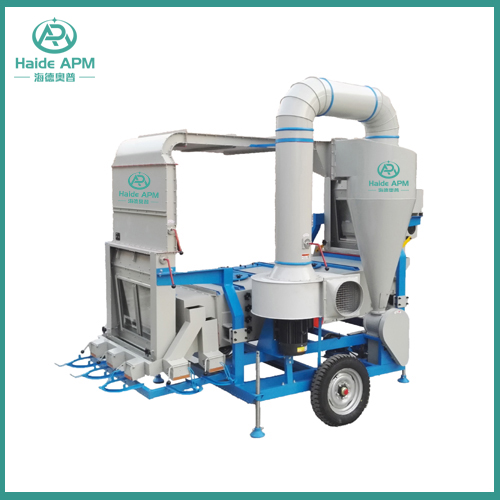

Double Air Screen Cleaner, with double air screen, twice air separation, excellent air separation effect. It is to remove the light impurity, big and small impurity, and then separate grain or seed to different size.

Special good cleaning for sesame and sunflower seed, beans which with much dust and purity.

Structure

this Double air screen cleaner consists of Bucket Elevator, Dust Catcher (cyclone), double Vertical Screen, vibration Screen and Grain Exits.

One fan, two vibration motors, three motors (fan, elevator, rotary discharging valve)

Features

1. Double air screen, twice dust cleaning.
2. the material can be classified into big, medium and small particles with different layers(different size) of sieves.
3. Double Air Screen Cleaner consists of bucket elevator, dust catcher, enclosed rotary unloading valve, double vertical screen and vibration grader.

Advantages

1, Double Air screen cleaner, excellent cleaning effect
2, long sifting surface, separate well.

3, Non broken elevator, no damage.
4, Suitable for material with much light impurity

Specification

Model	Sieves size	Capacity	Power	Weight	Overall Size
5XFS-7.5FD	1250x2400mm	3-7.5t/h	10.5kw	2250kg	4000x2300x3600mm

Sesame cleaner sorting machine cleaning machine precleaner air screen cleaner double air screen sesame processing machi
