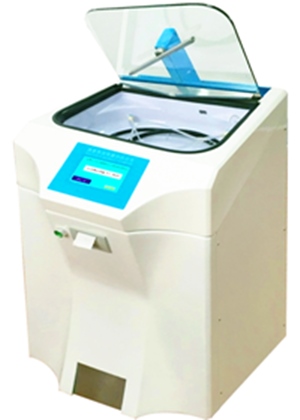

China Made Automated Endoscope Reprocessor Washer Machines

Specifications

All types of soft endoscopes are cleaned and disinfected. (eg gastroscopy, colonoscopy, duodenoscopy, bronchoscopy, laryngoscopy and endoscopic ultrasound, etc.).

Fast and efficient cleaning: Complete an endoscope cleaning and disinfection in as little as 9 minutes.

Cleaning and disinfection process:

Cleaning → Enzyme Wash → Rinse → Disinfection → Terminal Rinse → Dry → Use or Store

Performance and characteristics:

Fully automated cleaning and disinfection process
Initial wash → Enzyme wash → Secondary wash → Disinfection → End wash → Dry

Type of disinfectant used:

Fast and efficient cleaning and disinfection time, leading the world
0.5%-0.6% o-phthalaldehyde ≤ 10 minutes
2% alkaline glutaraldehyde (normal temperature) ≤ 15 minutes
2% alkaline glutaraldehyde (43 ° C) ≤ 10 minutes

Cleaning and disinfection methods:

Fully soaked, fully perfused and high pressure spray.

Full leak detection:

the endoscope was leak tested and displayed pressure (0.015-0.035 MPa).

Quick connection, saving time and effort:

the decontamination connector adopts the original imported quick-connect connector, which is completely matched with the manual cleaning tank. If the perfusion joint is manually removed after the initial washing, it can be placed in the reprocessor and the quick-connect connector, which is convenient, scientific and efficient. It also reduces the labor intensity of the staff.

Retrospective process:

All the data in the process of patient name, endoscope number, operator name and endoscope washing and elimination are recorded and saved in the whole process; the single machine traceability or docking with the hospital management system is realized, and the data of endoscope washing and elimination process is truly realized. Synchronous management.
Water treatment
High-precision filtration of tap water through an external filter and built-in filter.

Control method:

Intelligent control (imported PLC programmable controller), Chinese input, 7-inch color LCD touch screen, one-button operation.
Six procedures can be selected: 1, standard cleaning and disinfection procedures; 2, special infection cleaning and disinfection procedures; 3, drying and leak detection procedures; 4, terminal cleaning and disinfection procedures; 5, early disinfection procedures; 6, self-disinfection procedures.
the patient's name, endoscopic number, and operator's name can be entered manually.

Self-disinfecting, fully automatic, no dead ends:

Use a chlorine-containing disinfectant (effervescent tablet) for one-time use. In the state where the fully automatic endoscope cleaning and disinfecting machine is unloaded, all the pipes passing through the filter core (0.2 micron) aqueous solution built in the machine can be backwashed and disinfected; and the tank of the machine is sprayed by high pressure. the entire upper cover is cleaned and disinfected in all directions and without dead ends.
Fully automatic printing
Plain paper prints all the data in the patient's name, endoscope number, operator name and endoscope washout process, which is easy to archive and trace, and can be stored for more than 10 years.
Automatic fault alarm, automatic processing function
during use, the enzyme, alcohol, disinfectant is insufficient and the whole fault alarm machine cannot be started and the fault content prompts the solution.

Multi-function switch door:

the kicks are turned on, off, and the touch screen is manually turned on and off.
Fully automatic and precise addition of reagents
Automatic and accurate metering of enzymes and alcohol.

Disinfectant concentration detection:

the real-time concentration of the disinfectant can be completely and accurately detected, and the safety of the operator can be more effectively protected.
